The back cover is 10 1/8 inches wide by 27 inches long. The top two mounting
holes are 6 3/16 inches apart.
To mount the Elevator Restriction Unit
1.
Elevator Restriction System Installation and Operation Manual
Version 1.2
LT-9940
Copyright 2018

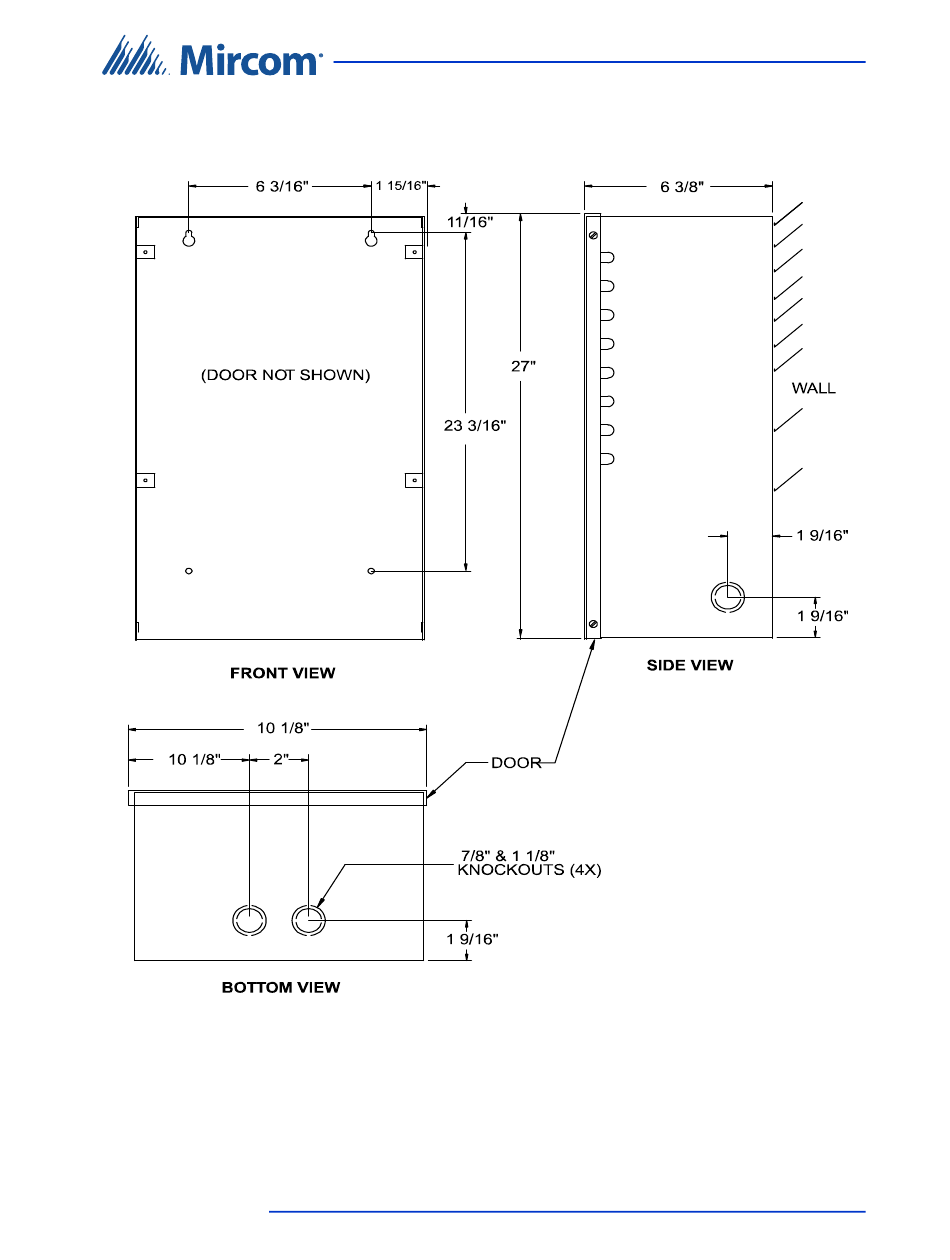

Figure 8.
Box for the TX3-ER-8 Elevator Restriction Unit
Using the back cover as a template mark the top two mounting hole
locations 6 5/32" (156 mm) apart as shown in Figure 8.
