2.
TX3-ER-8 Elevator
Restriction Unit
2.2.4 Wire the 2012E Relay Boards
Note:
Using the information in section 2.2, wire the relays to the input circuits of
the elevator manufacturer's button controller. Use tables in Chapter 4 to
record how each relay is wired.
2.3

Set the Elevator Restriction Unit ID

Use the eight position DIP Switch labelled SW2 to set the Elevator Restriction
Unit ID. Give each ERU a different Unit ID.
Elevator Restriction System Installation and Operation Manual
Version 1.2
LT-9940 Copyright 2018

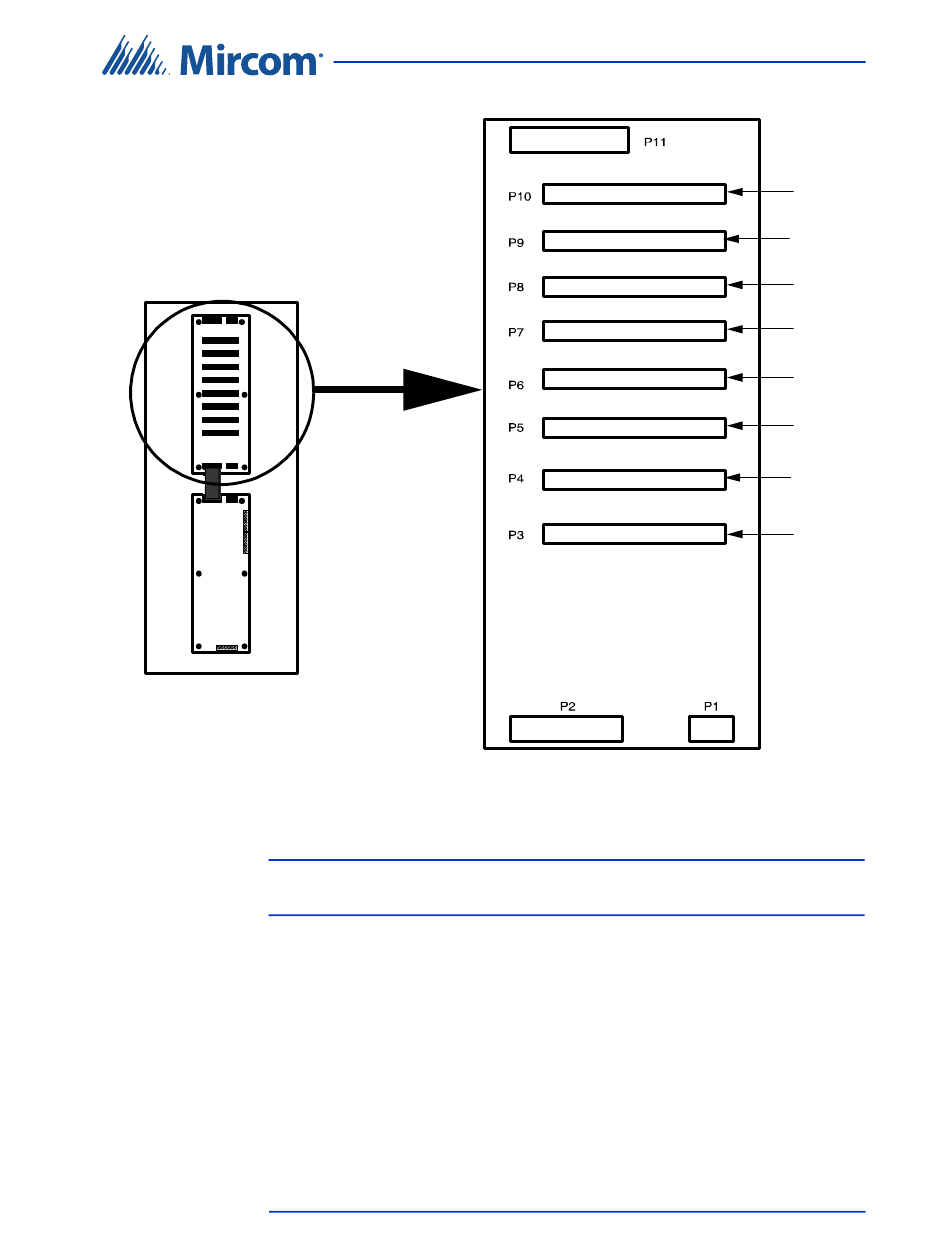

Figure 11. Elevator Restriction Controller Backplane
Only a qualified elevator service technician should wire the
Elevator Restriction Unit to the elevator controller.
Installing the Elevator Restriction Unit
Position 8
Position 7
Position 6
Position 5
Position 4
Position 3
Position 2
Position 1
21
