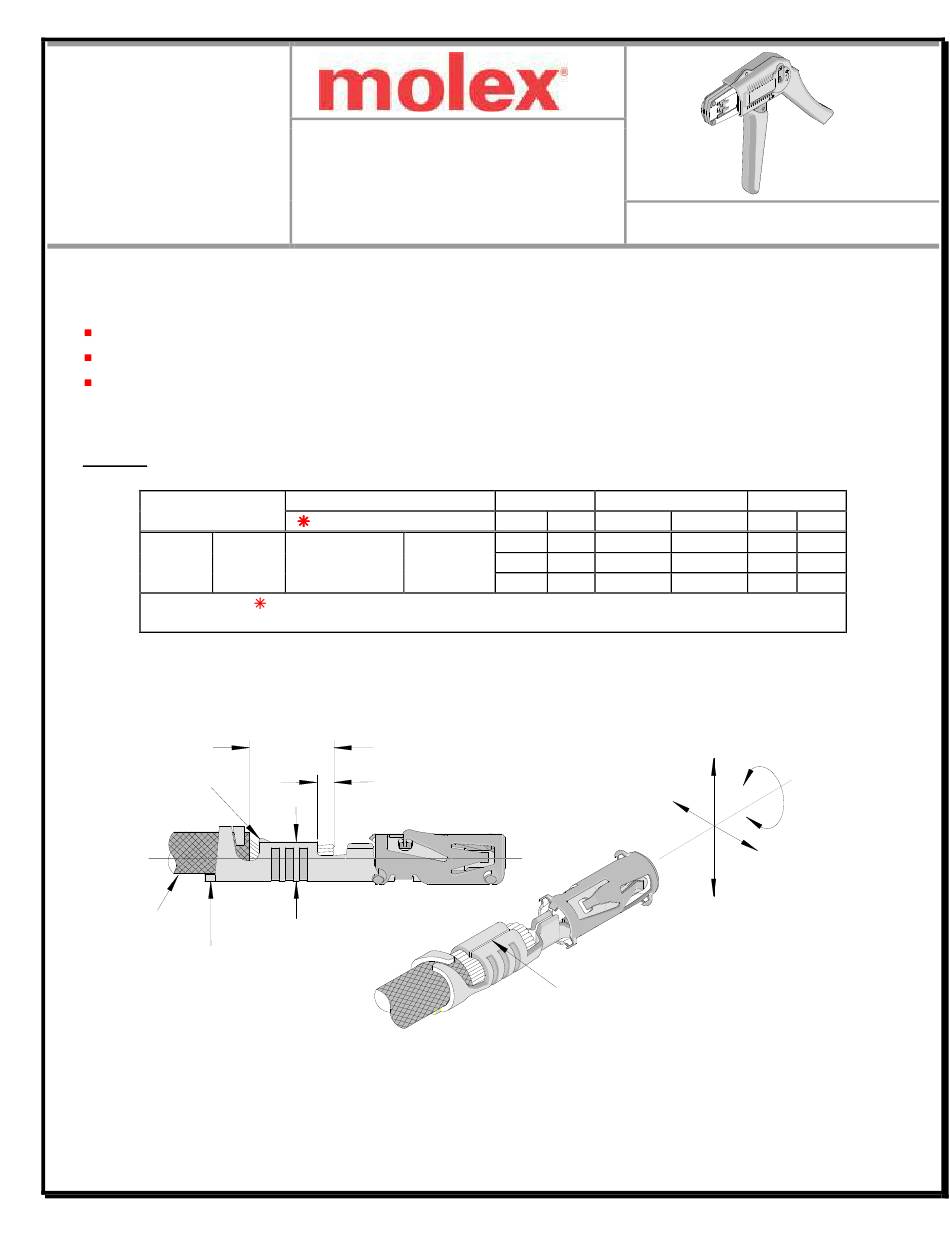

Hand Crimp Tool for CP 1.5 Series Crimp Terminals
HAND CRIMP
TOOL
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
This tool is WHMA-IPCA620 Class 3 only with specified wire types and RoHS compliant
SCOPE
Products: 1.50mm (.059") CP 1.5 Female Crimp Terminals for CMC connector >1.00-2.00mm
Terminal Series No.
98915
64323
Note: Terminal will accommodate the thin wall small insulation with the IR or ID type Metric wires.
DEFINITION OF TERMS
BELL MOUTH
WIRE
CUT-OFF
TAB
Doc No: ATS-638119000
Revision: D
Application Tooling
Specification Sheet
Terminal Order No.
Available in Reel form only
98915-1039
64323-1039
98915-1219
64323-1219
Customer to cut off terminal from reel: 0.30mm (.012") maximum Cut-off Tab.
STRIP LENGTH
CONDUCTOR
BRUSH
CONDUCTOR
CRIMP HEIGHT
Release Date: 04-23-07
Revision Date: 11-22-10
Wire Size
Insulation Diameter
AWG
mm²
mm
2.00
2.55-2.70
1.50
2.20-2.40
1.40
2.25-2.40
SEAM
UNCONTROLLED COPY
TYPE 7
Order No. 63811-9000
2
.
Strip Length
In.
mm
In.
.100-.106
4.50
.177
.087-.094
4.50
.177
.088-.094
4.50
.177
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 5
