2. Mount the LNR50DD to the translating breadboard as shown in Figure 6.7.1.
3. Mount the MAX311D stage to the LNR50DD. Three holes will line up and 2 can be
conveniently used.
4. Remove the top plate (the plate has an array of mounting holes and two groves that split the plate
into four quadrants) from the MAX311D stage (four screws, use a 2 mm hex key)
5. Attach the RB13P1 to the MAX311D and connect the slide holder (MAX3SLH) to the RB13P1.
6. Since the oil immersion objective might push the slide from the bottom during the imaging
process, the clips are used to hold the slide in place.
LNR50DD
P1.5
PB2
6.8 The Light Source
1. Remove one half of the SM1Q quick release adapter from the OTKB-LS-SP light source and
attach it to the upper LCP02 cage plate. Then connect the other half of the light source and lock
in place by rotation.
2. Connect the 250mA precision constant current laser driver, LD1255R to the optical table
mounting plate LD1255P, and hold this in place using the screws.
3. Mount the assembly from step 2 to the optical table using cap screws and the provided slots on
the LD1255P.
19590-D04-V15; Apr 12, 2012
RB13P1

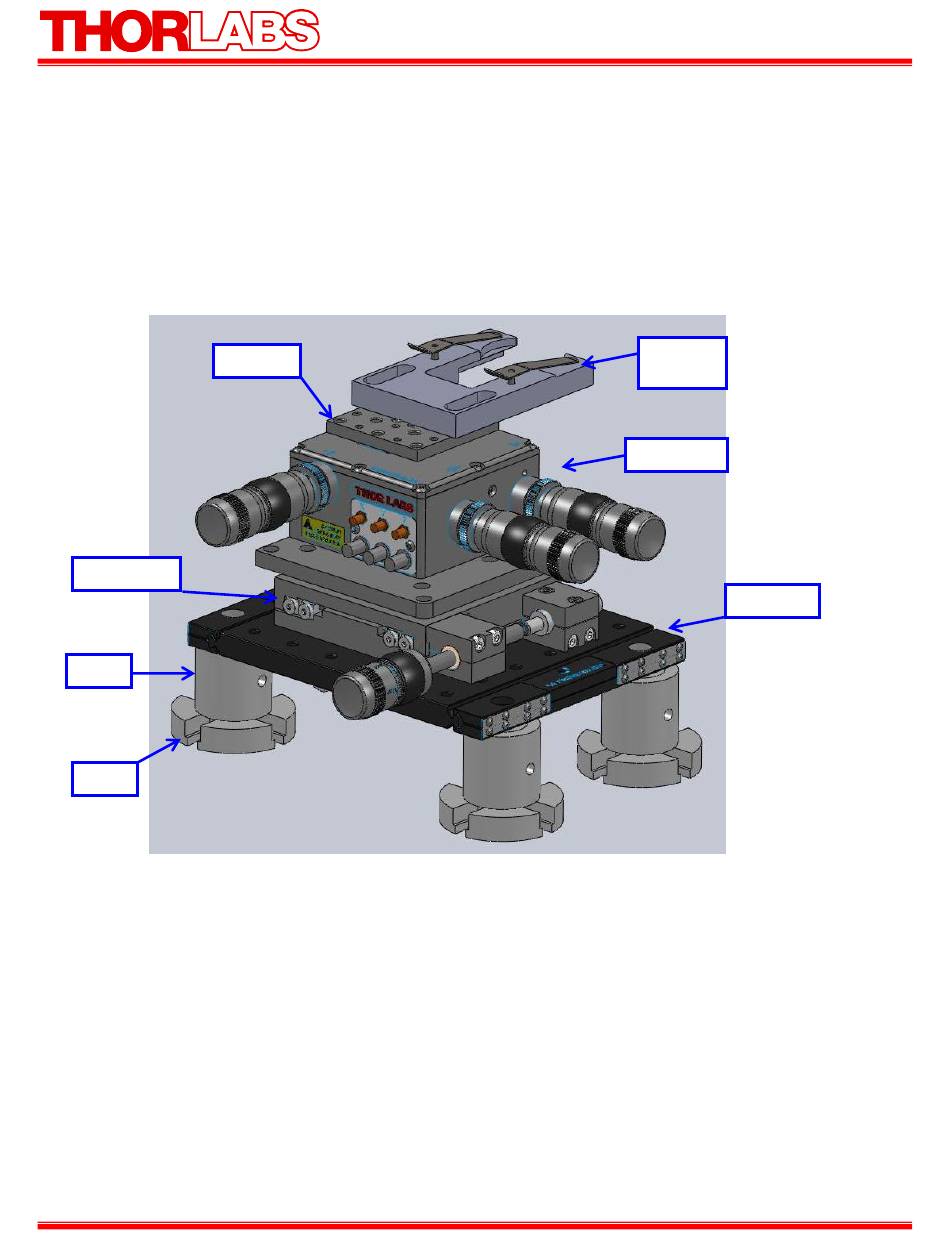

Figure 6.7.1: The sample stage and holder
Page 22
Optical Trap Kit
Sample
Holder
MAX311D
TBB0606
