6.6 The Camera Segment
1. Connect four ER1 rods to the KCB1.
2. Slide in a CPG3 through the rods.
3. Connect this to the central C6W by using the set screws in the C6W to tightly hold the four ER1
cage rods. Only a small part of the cage rods should extend into the C6W, otherwise the rods
may not allow you to freely rotate the FM01 mirror after it has been installed inside the C6W
cube The ensuing assembly is shown in Figure 5.6.1.
4. Mount the IR filter, FES0750 in an SM1L05.
5. Thread in an SM1D12 to the vertical face of the KCB1, then the SM1L05 from step 4, then an
SM1T2, and the adapter SM1A9 (which comes with the camera).
6. Attach the DCU224C CCD camera to the SM1A9 as shown in Figure 6.6.1.
Your trapping system is now complete and you can proceed to build the sample stage. If you use the
force measurement module, see the integration instructions which were provided with the OTKBFM.
6.7 Sample Stage and Holder
1. Mount the TBB0606 translating breadboard onto the post assemblies P1.5 and base PB2.
19590-D04-V15; Apr 12, 2012
CPG3

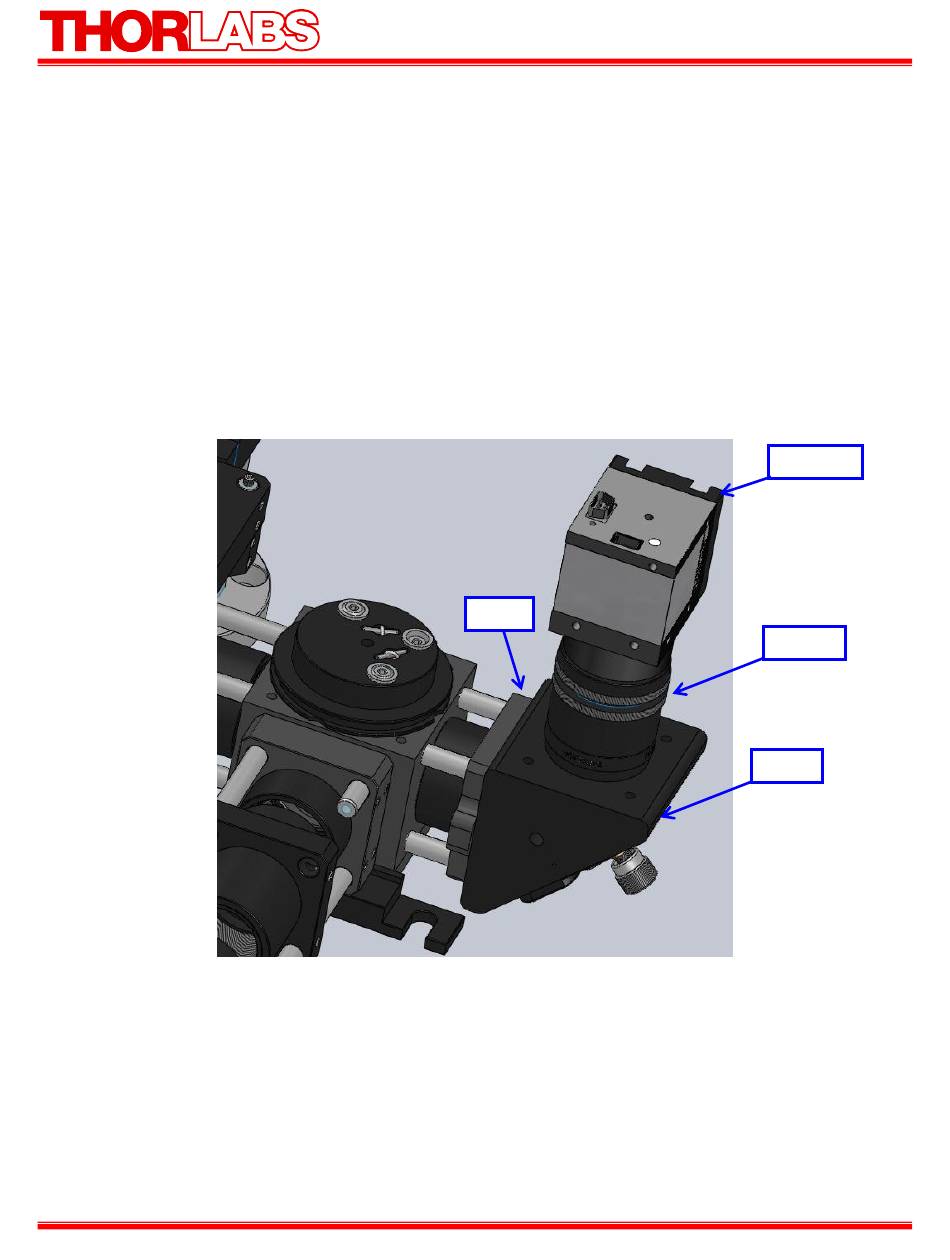

Figure 6.6.1: Building the camera segment.
Page 21
Optical Trap Kit
DCU224C
SM1T2
KCB1
