3.4
The Stage Assembly
The stage assembly parts ship in their separate boxes and will have to be assembled as described in
Section 6.8.
3.5

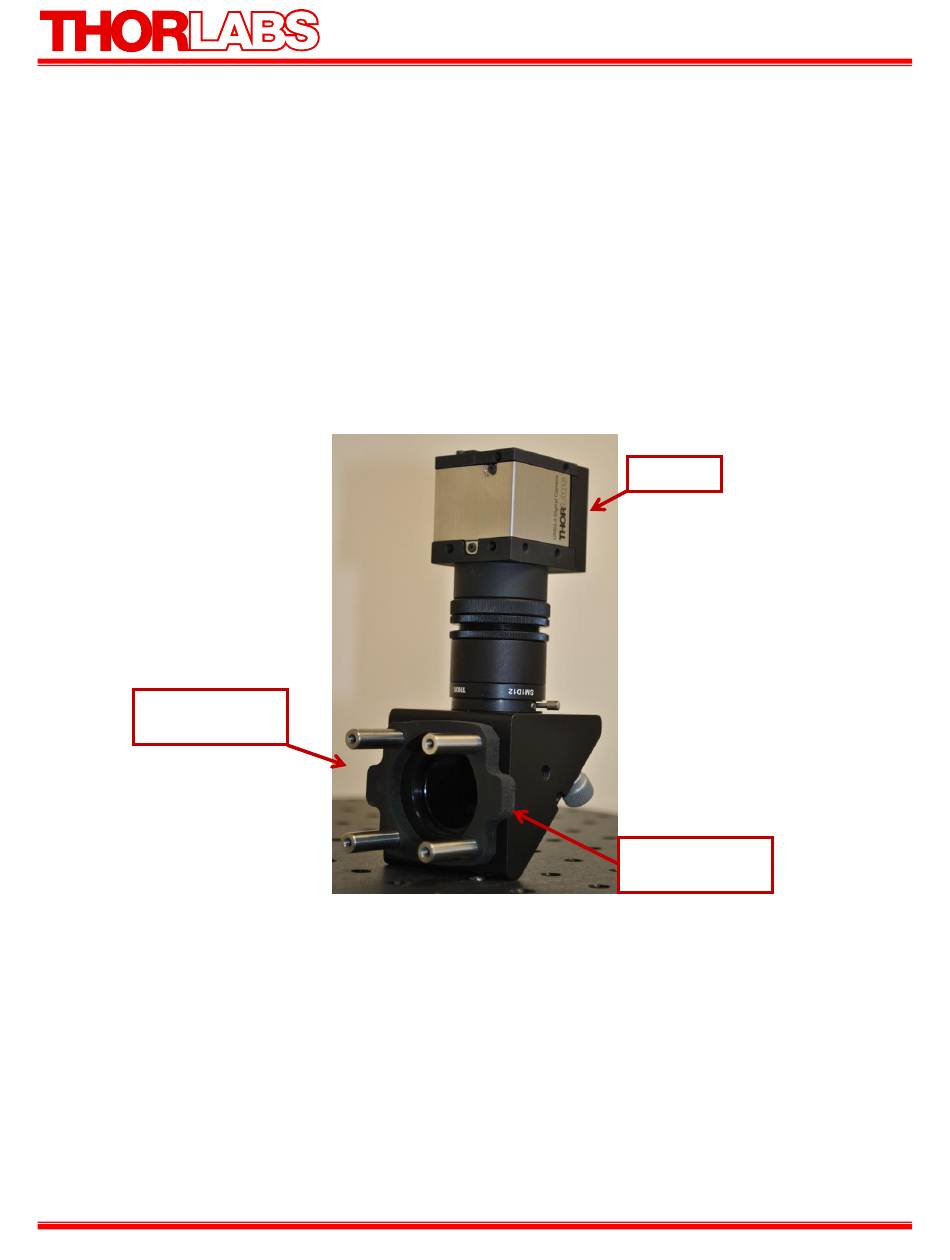

The Camera Segment
This segment mainly has the CCD camera for live imaging. The imaging lens is already connected to the
camera port on the cube, C6W. To complete this segment, just slide the four ER1 rods into the four cage
rod holes on the C6W, such that it doesn‟t interfere with the B4C. Then lock this segment to the C6W
using the four set screws on the sides of the C6W.
Connects to C6W
here
19590-D04-V15; Apr 12, 2012
Figure 5.4: The Beam Expander Segment
Page 7
Optical Trap Kit
Camera
Cage plate gasket,
CPG3
www.thorlabs.com
