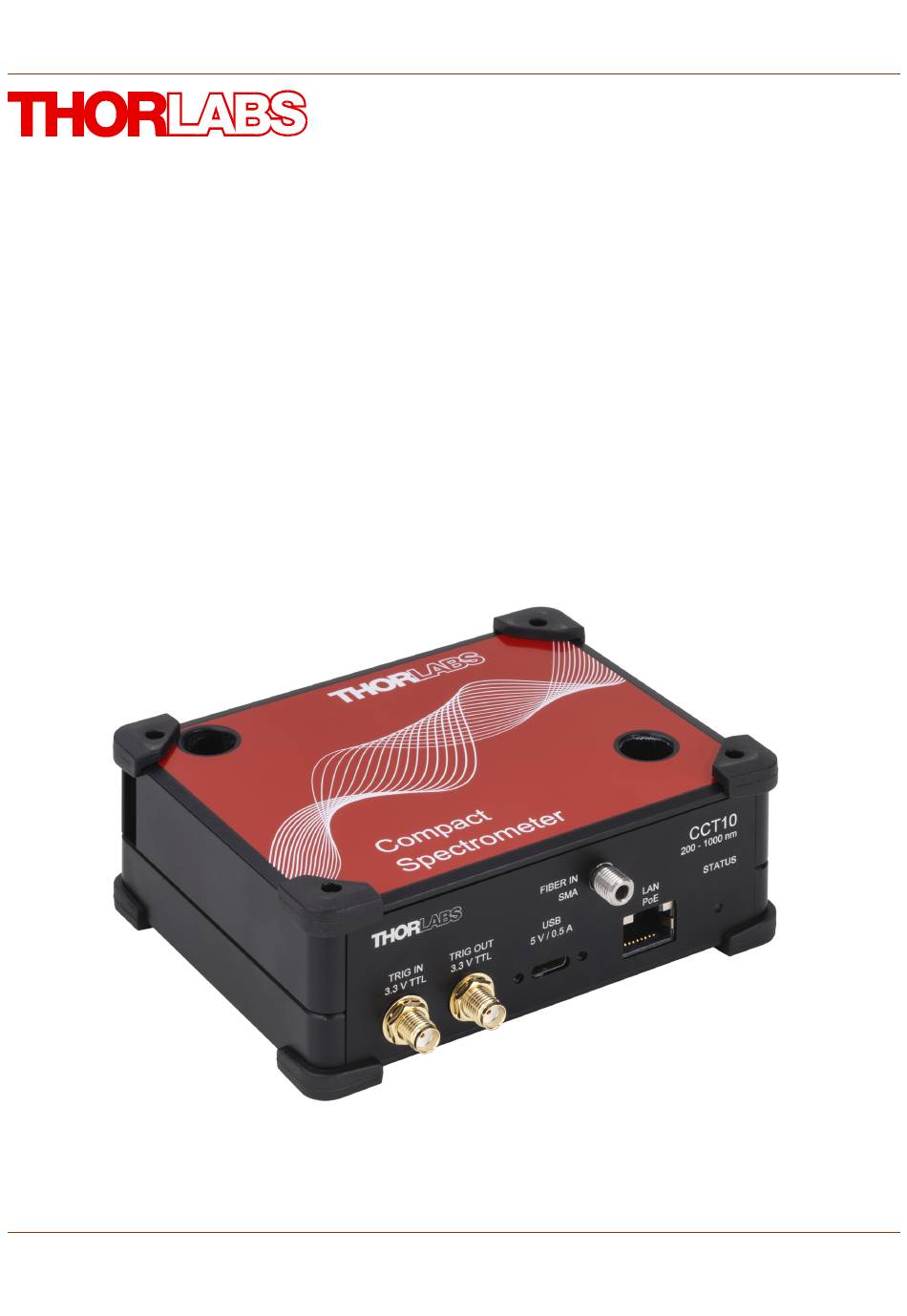

CCT10, CCT11, CCT12
CCT Spectrometer Series
User Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the CCT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for THORLABS CCT Series

Summary of Contents for THORLABS CCT Series

  • Page 1 CCT10, CCT11, CCT12 CCT Spectrometer Series User Guide...
  • Page 2 Revision: Date: February 12, 2025 Copyright © 2025 Thorlabs...

  • Page 3: Table Of Contents

    CCT Spectrometer Table of Contents Chapter 1 Introduction Intended Use Explanation of Safety Warnings Description 1.3.1 Ordering Codes and Accessories Technical Data 1.4.1 Specifications 1.4.2 Mechanical Drawing Components Simplified Declaration of Conformity Chapter 2 Safety Chapter 3 Installation Warranty and RMA Information Packing List Unpacking Instructions Installing Instructions...
  • Page 4 CCT Spectrometer Chapter 8 Thorlabs Worldwide Contacts...

  • Page 5: Chapter 1 Introduction

    CCT Spectrometer Chapter 1 Introduction Chapter 1 Introduction 1.1 Intended Use The CCT Spectrometer is designed for general laboratory use. Integrated routines allow averaging, smoothing, peak indexing, as well as saving and recalling data sets. The CCT Spectrometer may only be used in accordance with the instructions described in this user guide. Any other use will invalidate the warranty.
  • Page 6 Additionally, the CCT Spectrometer offers USB and Ethernet connections for flexible integration and data transfer. ThorSpectra Software The Thorlabs ThorSpectra Software fully supports the remote control of the CCT Spectrometer in direct, transmittance, and absorbance measurements. Aside from the CCT Spectrometer, the ThorSpectra Software supports the Thorlabs' optical spectrum analyzers.

  • Page 7: Technical Data

    Dimensions (L x W x H) 112.0 mm x 93.8 mm x 41.5 mm (4.41" x 3.69" x 1.63") Weight 0.5 kg (1.1 lbs) Fiber Connector SMA 905 a. Non-condensing Table 1 Specifications for the CCT Series Spectrometer Rev. A, February 12, 2025 Page 3...
  • Page 8 CCT Spectrometer Chapter 1 Introduction 1.4.2 Mechanical Drawing Figure 1 Mechanical Drawing for the CCT Series Spectrometer Page 4 DOC-100929...
  • Page 9 CCT Spectrometer Chapter 1 Introduction 1.5 Components Front Panel Figure 2 Front Panel of the CCT Series Spectrometer Front Panel Callout Feature Description Female SMA Connector Input for "Trigger" IN Female SMA Connector Output for "Trigger" OUT USB Type-C Connector USB 2.0 Type-C for Remote Operation or Software Control...

  • Page 10: Simplified Declaration Of Conformity

    CCT Spectrometer Chapter 1 Introduction Top Panel Figure 3 Top Panel of the CCT Series Spectrometer Top Panel Callout Feature Description Mounting Hole 1 Mounting Option for Cap Screw M6 x 1.0 (1/4"-20) Mounting Hole 2 Mounting Option for Cap Screw M6 x 1.0 (1/4"-20)

  • Page 11: Chapter 2 Safety

    CCT Spectrometer Chapter 1 Introduction Chapter 2 Safety The safety of any system incorporating the equipment is the responsibility of the assembler of the system. All statements regarding safety of operation and technical data in this instruction manual will only apply when the unit is operated correctly as it was designed for.

  • Page 12: Installation

    This precision device is only serviceable if returned and properly packed into the complete original packaging including the complete shipment plus the cardboard insert that holds the enclosed devices. If necessary, ask for replacement packaging. Refer servicing to qualified personnel. General Terms and Conditions: https://www.thorlabs.com/Images/PDF/LG-PO-001_Thorlabs_terms_and_%20agreements.pdf https://www.thorlabs.com/images/PDF/Terms%20and%20Conditions%20of%20Sales_Thorlabs- GmbH_English.pdf 3.2 Packing List The following items are included in the CCT10 Spectrometer package: ·...

  • Page 13: Installing Instructions

    CCT Spectrometer Chapter 3 Installation 3.4 Installing Instructions 1. Place the CCT Spectrometer onto a stable, dry surface. The CCT Spectrometer needs to be positioned less than 1.5 m (59.1") from the PC to be used and less than 1.0 m (39.4") from the light source. This is due to the USB cable length and the optical fiber length, respectively.

  • Page 14: Mounting With Cap Screws Via Mounting Pockets

    CCT Spectrometer Chapter 3 Installation 1. Place the CCT Spectrometer (1) vertically on the breadboard (4). 2. Place the table clamps (Item # CL4) (3) in the mounting pockets of the CCT Spectrometer (1). 3. Align the CCT Spectrometer (1) with the table clamps (3) on the breadboard (4), so that the slotted holes of the table clamps (3) match the threaded holes on the breadboard (4).

  • Page 15: Return Of Devices

    CCT Spectrometer Chapter 3 Installation 3.5 Return of Devices This precision device is only serviceable if returned and properly packed into the complete, original packaging including the cardboard insert that holds the enclosed devices. Rev. A, February 12, 2025 Page 11...

  • Page 16: Thorspectra Software

    The ThorSpectra Software supports the CCT Spectrometer and is available for download from the website. As a part of our green initiative, Thorlabs no longer ships physical data carriers for installation of the ThorSpectra Software for the CCT Spectrometer. The ThorSpectra Software can be accessed and installed...

  • Page 17: Connecting The Cct Spectrometer To Thorspectra Software

    CCT Spectrometer Chapter 4 ThorSpectra Software 1. Download the the ThorSpectra Software from the website. 2. Save the ZIP-file to your PC. 3. Unpack the ZIP-file. 4. Select the setup.exe file and double click to install the ThorSpectra Software. 5. Read and accept the End-User License Agreement and the GNU Lesser General Public License. 6.

  • Page 18: Connecting Via Ethernet

    CCT Spectrometer Chapter 4 ThorSpectra Software 3. Click to trace A within the ThorSpectra Software, and make sure that the following topics are checked: · Show · Set as Active · Write 4. Increase the integration time until the spectrum is displayed. 5.
  • Page 19 CCT Spectrometer Chapter 4 ThorSpectra Software Figure 8 Screenshot of the ThorSpectra Software 2. Click on the "Apply Settings" button. Changes to the IP address settings are saved. Figure 9 Screenshot of the ThorSpectra Software 3. Boot the CCT Spectrometer. The new IP adress settings are adopted.

  • Page 20: Device Settings In Thorspectra

    CCT Spectrometer Chapter 4 ThorSpectra Software Figure 10 Screenshot of the ThorSpectra Software 4.4 Device Settings in ThorSpectra The following device settings can be configured with the ThorSpectra Software: · Acquisition · Wavelength Calibration · Amplitude Correction · Ethernet & USB Connection ·...

  • Page 21: Wavelength Calibration

    CCT Spectrometer Chapter 4 ThorSpectra Software 4.4.2 Wavelength Calibration The sensor installed in the spectrometers of the CCT Spectrometer is a CMOS line array. The spectrometer optics direct the light of a certain wavelength to a certain pixel on the CMOS line. Each of the CCT Spectrometers is factory calibrated, using a calibration source with well-known spectral lines.

  • Page 22: Amplitude Correction

    CCT Spectrometer Chapter 4 ThorSpectra Software e. Repeat this procedure for up to 10 calibration points. The example below shows a table for 4 calibration points. The calibration table is completed. 5. Press "Save". The user calibration points are now stored to the CCT spectrometer EEPROM in addition to the factory calibration.

  • Page 23: Ethernet & Usb Connection

    CCT Spectrometer Chapter 4 ThorSpectra Software 4.4.4 Ethernet & USB Connection The "Ethernet & USB Connection" tab contains the connection settings for the CCT Spectrometer to the ThorSpectra Software via Ethernet or USB. Please see the chapter Connecting CCT Spectrometer to ThorSpectra Software for further information.
  • Page 24 CCT Spectrometer Chapter 4 ThorSpectra Software Figure 15 Screenshot of the Advanced & Reset Tab Page 20 DOC-100929...

  • Page 25: Custom Software

    CCT Spectrometer Chapter 4 ThorSpectra Software Chapter 5 Custom Software Software Development Kit of the CCT Spectrometer Series The Software Development Kit (SDK) of the CCT Spectrometer Series (referred to as "CCT SDK") is built on the same software libraries (referred to as "CCT Instrument Driver") that power the CCT Plugin for ThorSpectra Software.

  • Page 26: Maintenance And Cleaning

    Do not remove covers! 6.1 Recalibration Service for CCT Spectrometer Line Thorlabs offers a wavelength recalibration and amplitude correction service for our CCT Series Spectrometers, Item # CAL-CCT. To ensure accurate measurements, we recommend recalibrating the device every 12 months. We also recommend updating the amplitude correction whenever a new patch cable is used with the device.
  • Page 27 Contact Thorlabs for more information. Waste treatment is your own responsibility. “End of life” units must be returned to Thorlabs or handed to a company specializing in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. It is the user's responsibility to delete all private data stored on the device prior to disposal.

  • Page 28: Chapter 8 Thorlabs Worldwide Contacts

    CCT Spectrometer Chapter 7 Disposal Chapter 8 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to- date contact information. Corporate Headquarters Product Manufacturer Thorlabs, Inc. Thorlabs GmbH 43 Sparta Ave Münchner Weg 1...
