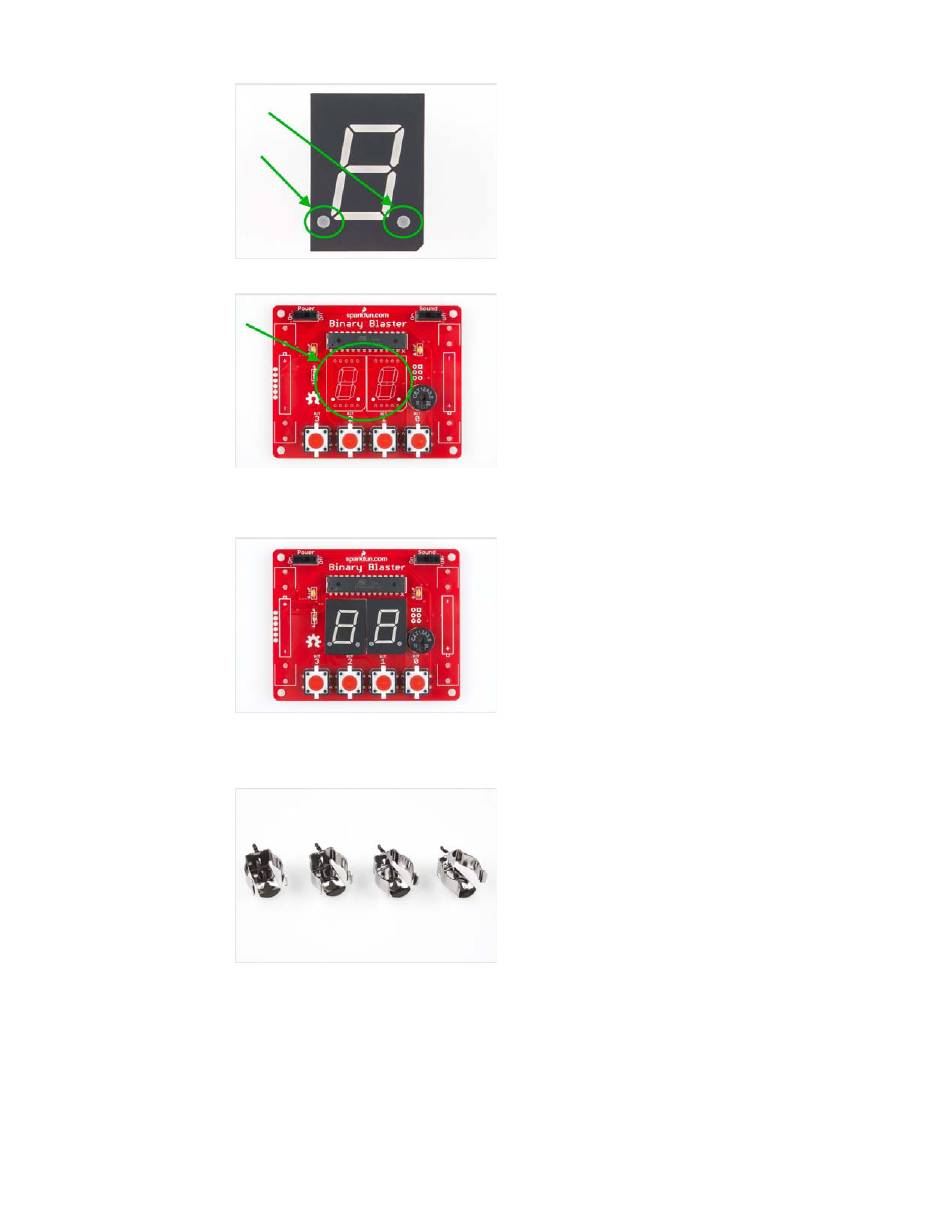

Locate the 2 positions on the PCB:
Note the polarity markings on the PCB. Make sure the decimal dots on the
displays align with the decimal markings on the PCB. Solder into place.
When you are done, your board should look like this:
Battery Clips
Locate the 4 Battery Clips:
Locate the 4 positions on the PCB:
