Page 6 of 15

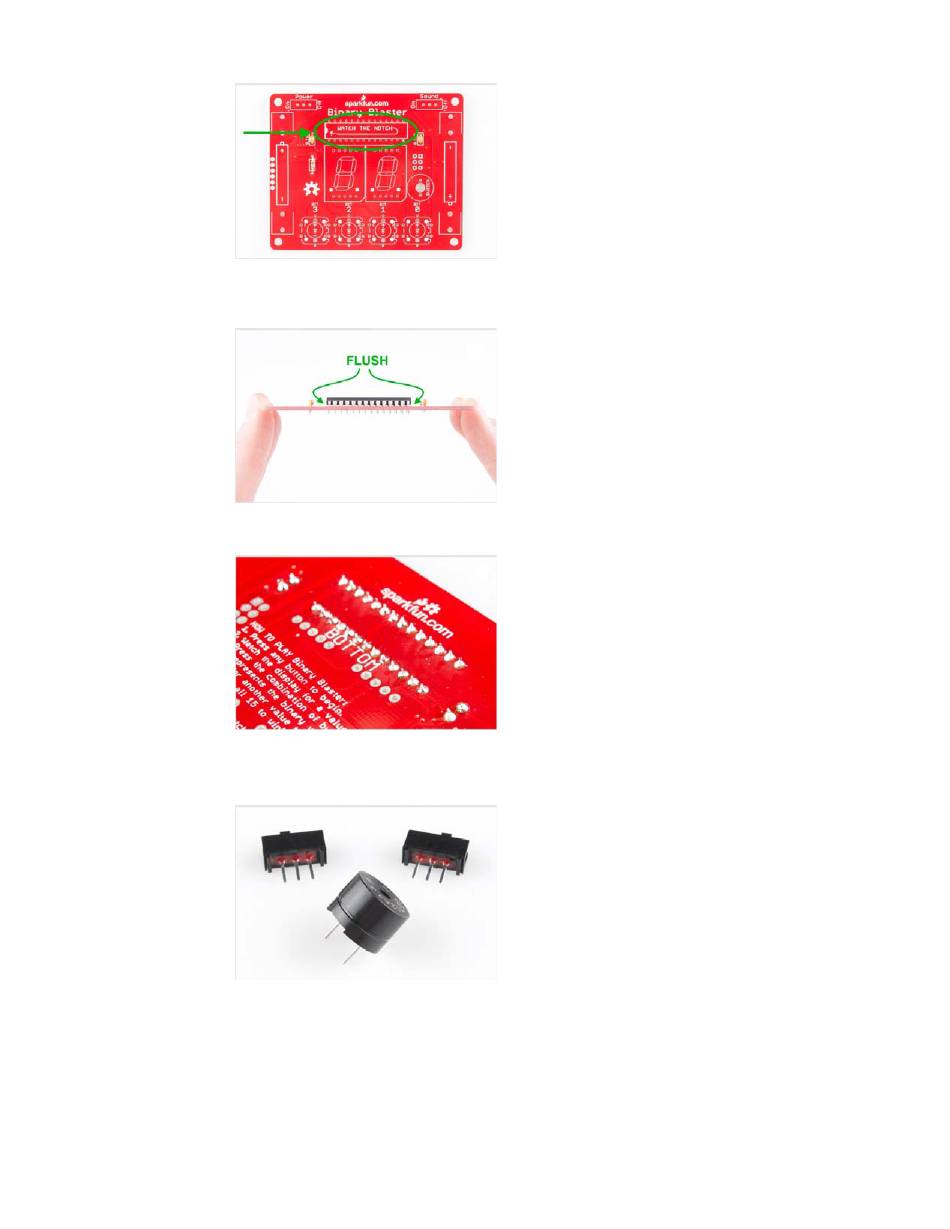

Taking care to align the notch properly, place the ATmega328 into the PCB.
While soldering the first leg (it can be any leg you choose), make sure to
keep the component flush with the PCB.
When you're done soldering this component, the bottom of your board
should look like this - a nice row of even volcanos:
Buzzer and Switches
Locate the buzzer and slide switches:
Locate the positions on the PCB:
