Page 7 of 15

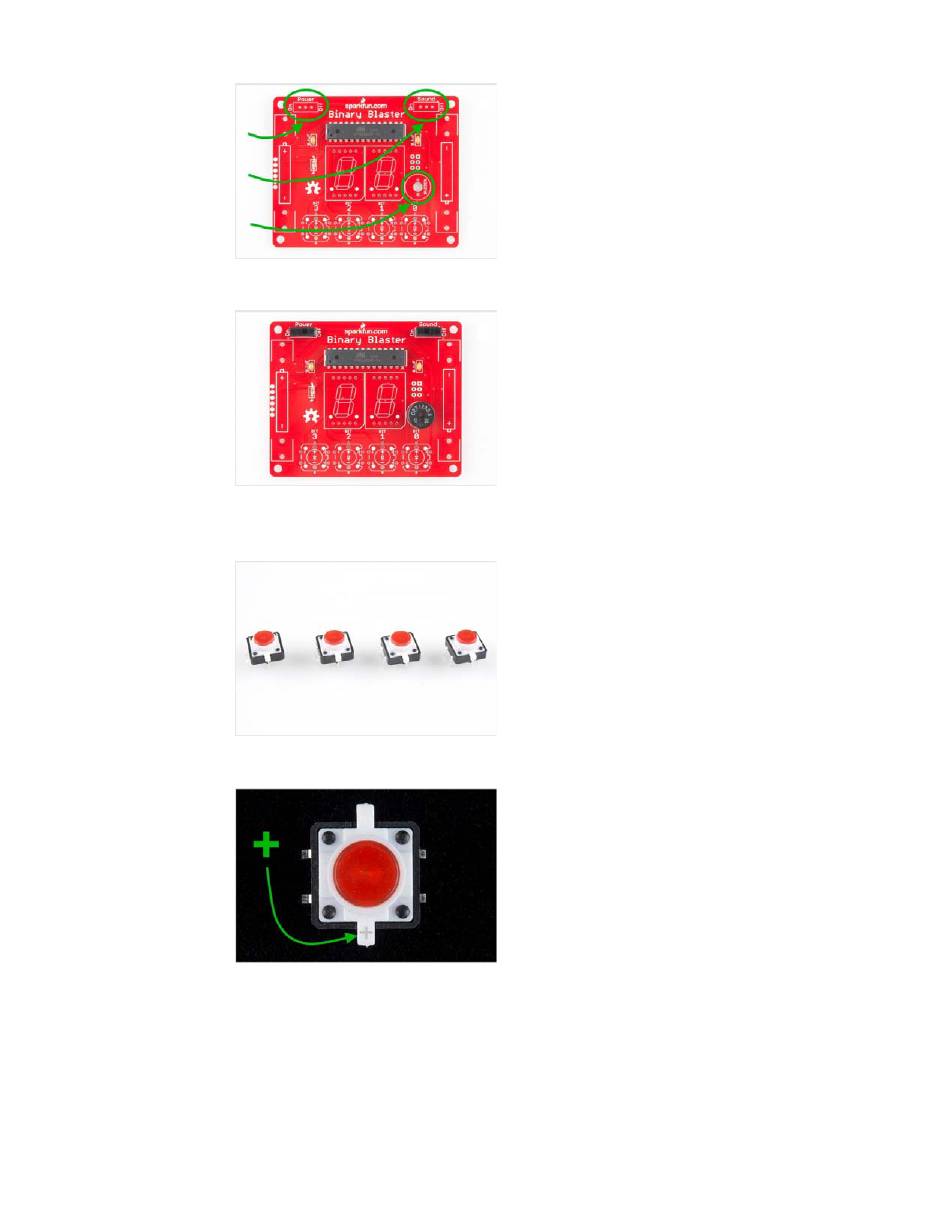

Place your components in the PCB. Flip it over, and solder them into place.
When you are done, you're PCB should look like this:
Light-up Buttons
Locate the 4 LED tactile buttons:
These buttons are polarized. Notice the small "+" sign on the top side of the
white plastic leg:
Locate the 4 positions on the PCB:
