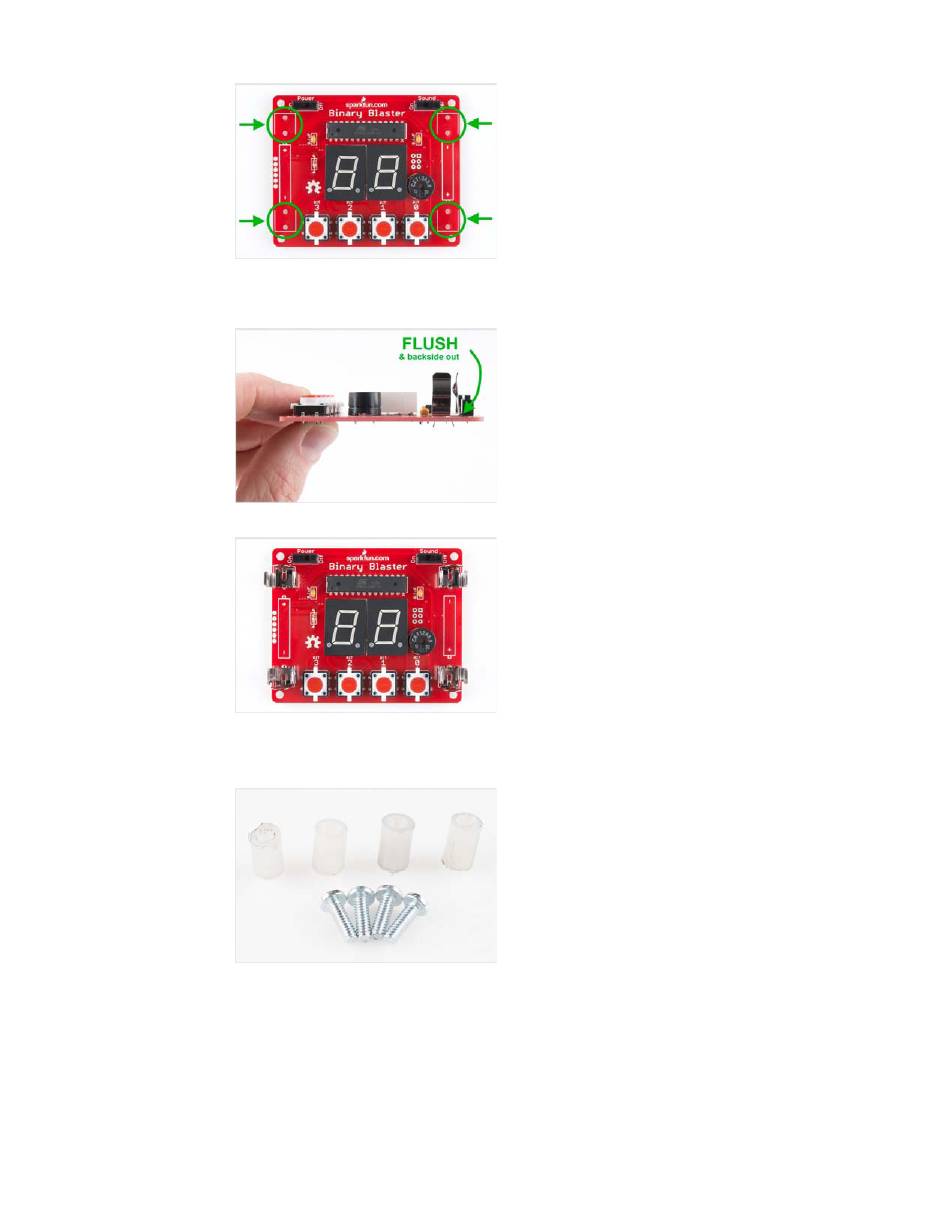

Note, these parts are polarized and must be soldered in so the back sides
are facing out. If placed incorrectly, the batteries will not fit. Ensure they are
flush and that the back sides are facing out:
Solder into place. When you are done, your board should look like this:
Standoffs
Locate the 4 Plastic Standoffs and 4 metal screws:
Note: you do not need a screwdriver to place these into the PCBs. Hand
tightening should suffice.
With the standoffs installed, your Binary Blaster should rest flat on the table:
