Page 12 of 20

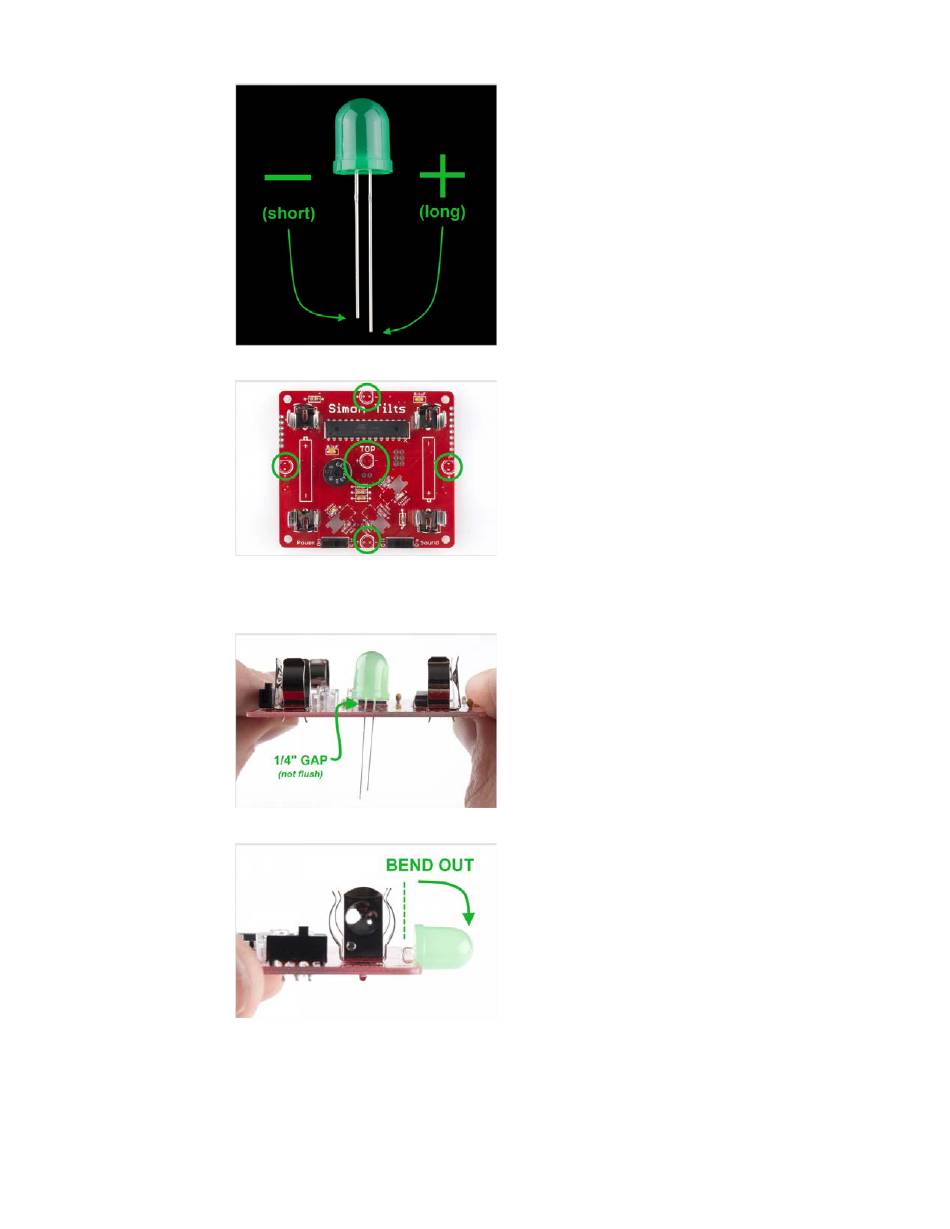

Locate the 6 LED positions on the PCB.
Note: There are two LED positions in the middle of the PCB.
When soldering the outside LEDs, do not solder them flush to the board.
Leave a ¼" inch gap:
This will enable you to bend the LEDs outward like so:
When you solder in the two center LEDs, make sure that one of them goes
up, and one goes down:
