Page 10 of 20

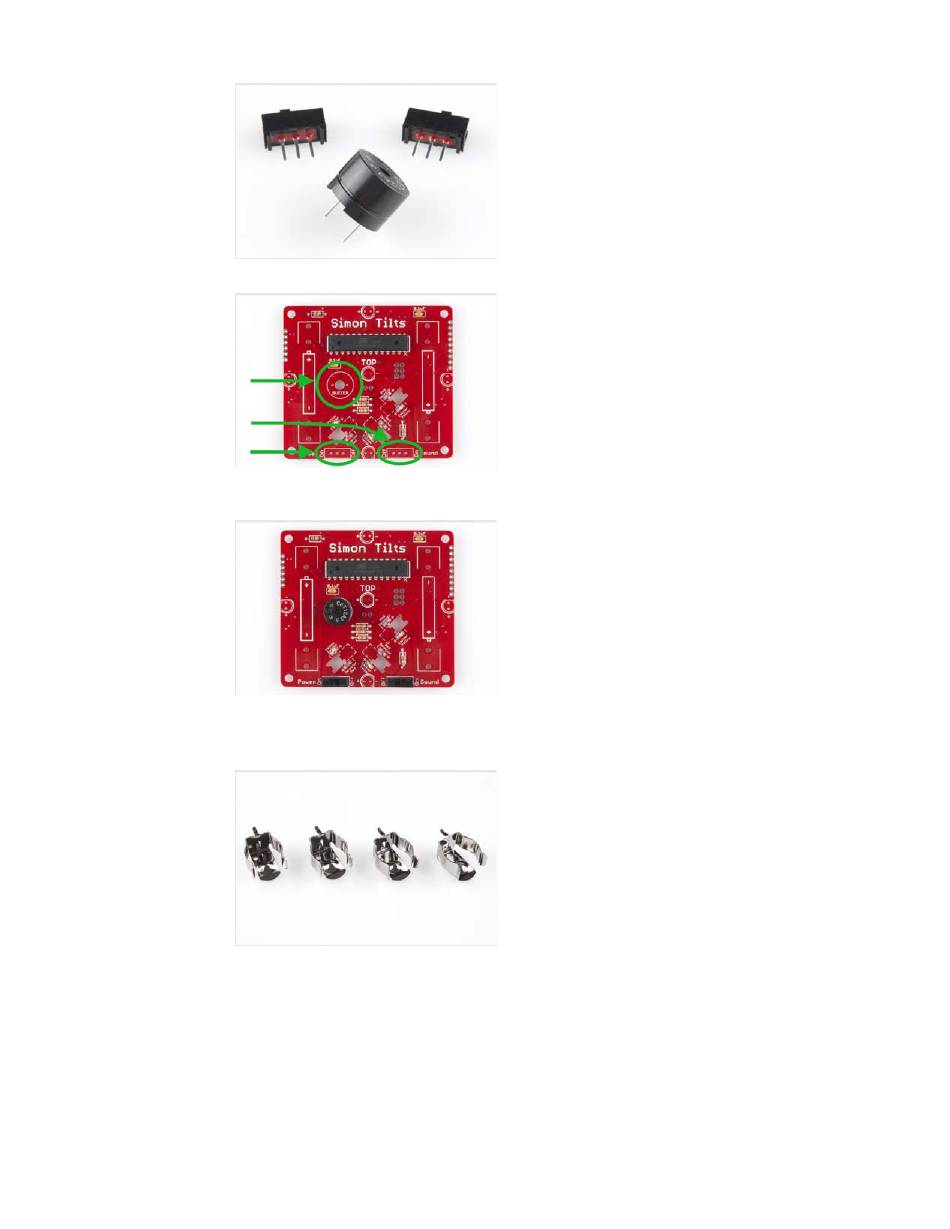

Locate the positions on the PCB:
Place your components in the PCB. Flip it over and solder into place. When
you are done, you're PCB should look like this:
Battery Clips
Locate the 4 Battery Clips:
Locate the 4 positions on the PCB:
