SENSOR
Io
A.1 SMT-200 Bendix Connector
(viewed into the male connector)
A.2 Docking Station SMT-200 Connector
12
24
(view from rear of Docking Station)
SMT-200 Operations and Technical Manual 2.00/R1
PIN
PIN
1
10
11
12
13
14
15
16
17
18
13
19
20
21
22
23
24

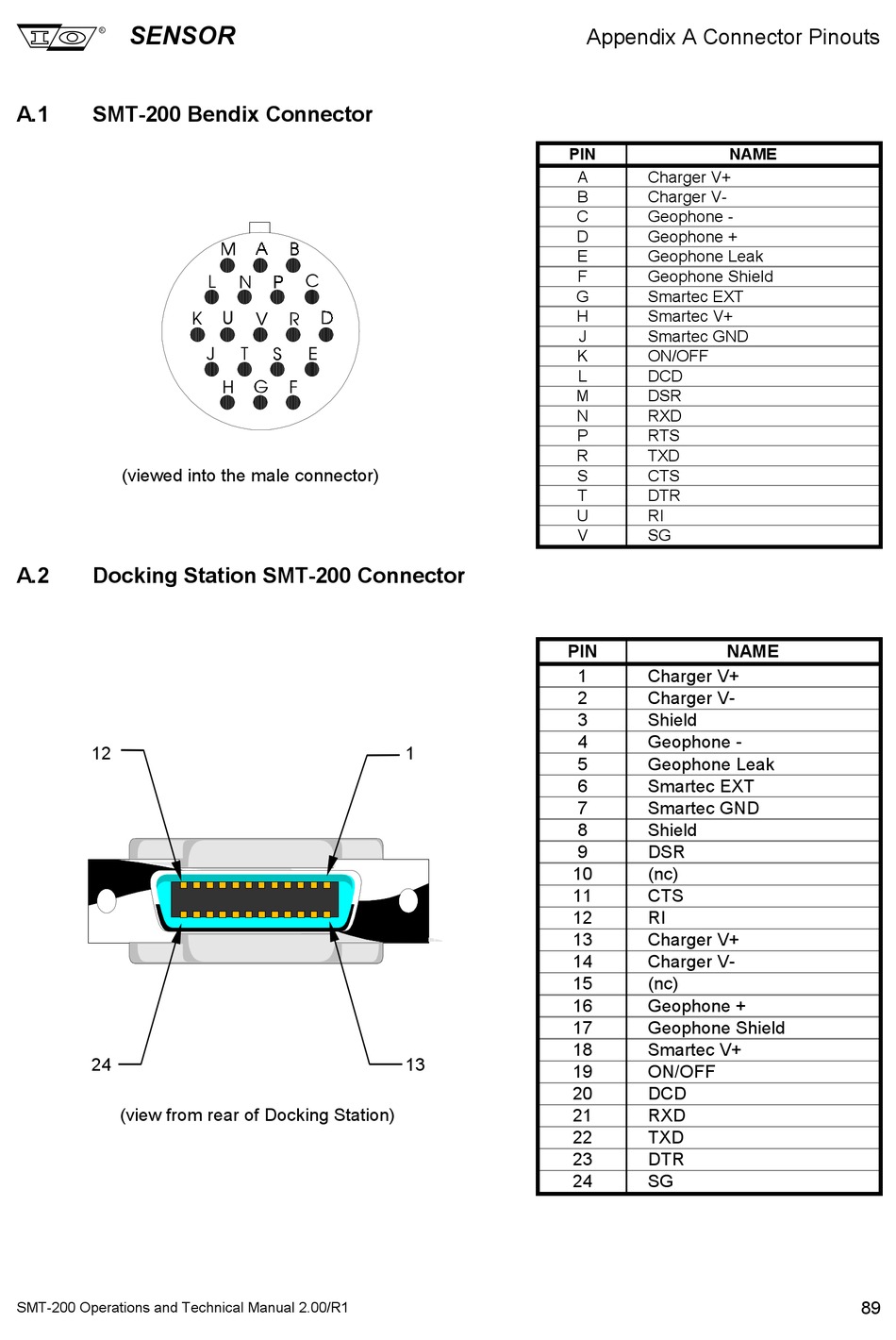

Appendix A Connector Pinouts
NAME
A Charger V+
B Charger V-
C Geophone -
D Geophone +
E Geophone Leak
F Geophone Shield
G Smartec EXT
H Smartec V+
J Smartec GND
K ON/OFF
L DCD
M DSR
N RXD
P RTS
R TXD
S CTS
T DTR
U RI
V SG
NAME
1 Charger V+
2 Charger V-
3 Shield
4 Geophone -
5 Geophone Leak
6 Smartec EXT
7 Smartec GND
8 Shield
9 DSR
(nc)
CTS
RI
Charger V+
Charger V-
(nc)
Geophone +
Geophone Shield
Smartec V+
ON/OFF
DCD
RXD
TXD
DTR
SG
89
