SENSOR
Io

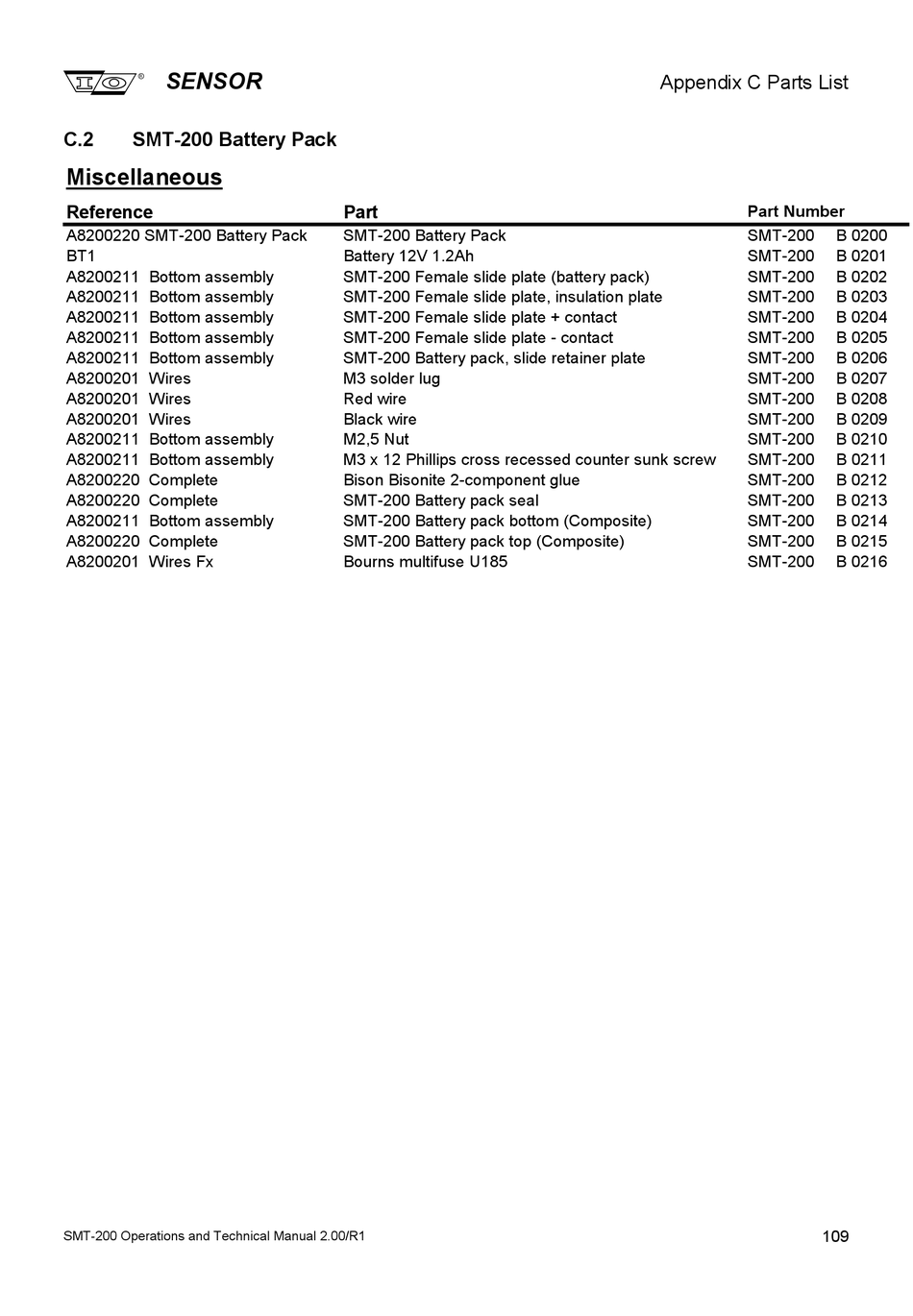

C.2 SMT-200 Battery Pack
Miscellaneous
Reference
A8200220 SMT-200 Battery Pack
BT1
A8200211 Bottom assembly
A8200211 Bottom assembly
A8200211 Bottom assembly
A8200211 Bottom assembly
A8200211 Bottom assembly
A8200201 Wires
A8200201 Wires
A8200201 Wires
A8200211 Bottom assembly
A8200211 Bottom assembly
A8200220 Complete
A8200220 Complete
A8200211 Bottom assembly
A8200220 Complete
A8200201 Wires Fx
SMT-200 Operations and Technical Manual 2.00/R1
Part
SMT-200 Battery Pack
Battery 12V 1.2Ah
SMT-200 Female slide plate (battery pack)
SMT-200 Female slide plate, insulation plate
SMT-200 Female slide plate + contact
SMT-200 Female slide plate - contact
SMT-200 Battery pack, slide retainer plate
M3 solder lug
Red wire
Black wire
M2,5 Nut
M3 x 12 Phillips cross recessed counter sunk screw
Bison Bisonite 2-component glue
SMT-200 Battery pack seal
SMT-200 Battery pack bottom (Composite)
SMT-200 Battery pack top (Composite)
Bourns multifuse U185
Appendix C Parts List
Part Number
SMT-200
SMT-200
SMT-200
SMT-200
SMT-200
SMT-200
SMT-200
SMT-200
SMT-200
SMT-200
SMT-200
SMT-200
SMT-200
SMT-200
SMT-200
SMT-200
SMT-200
109
B 0200
B 0201
B 0202
B 0203
B 0204
B 0205
B 0206
B 0207
B 0208
B 0209
B 0210
B 0211
B 0212
B 0213
B 0214
B 0215
B 0216
