Section 2 SMT-200 Operations
2.7

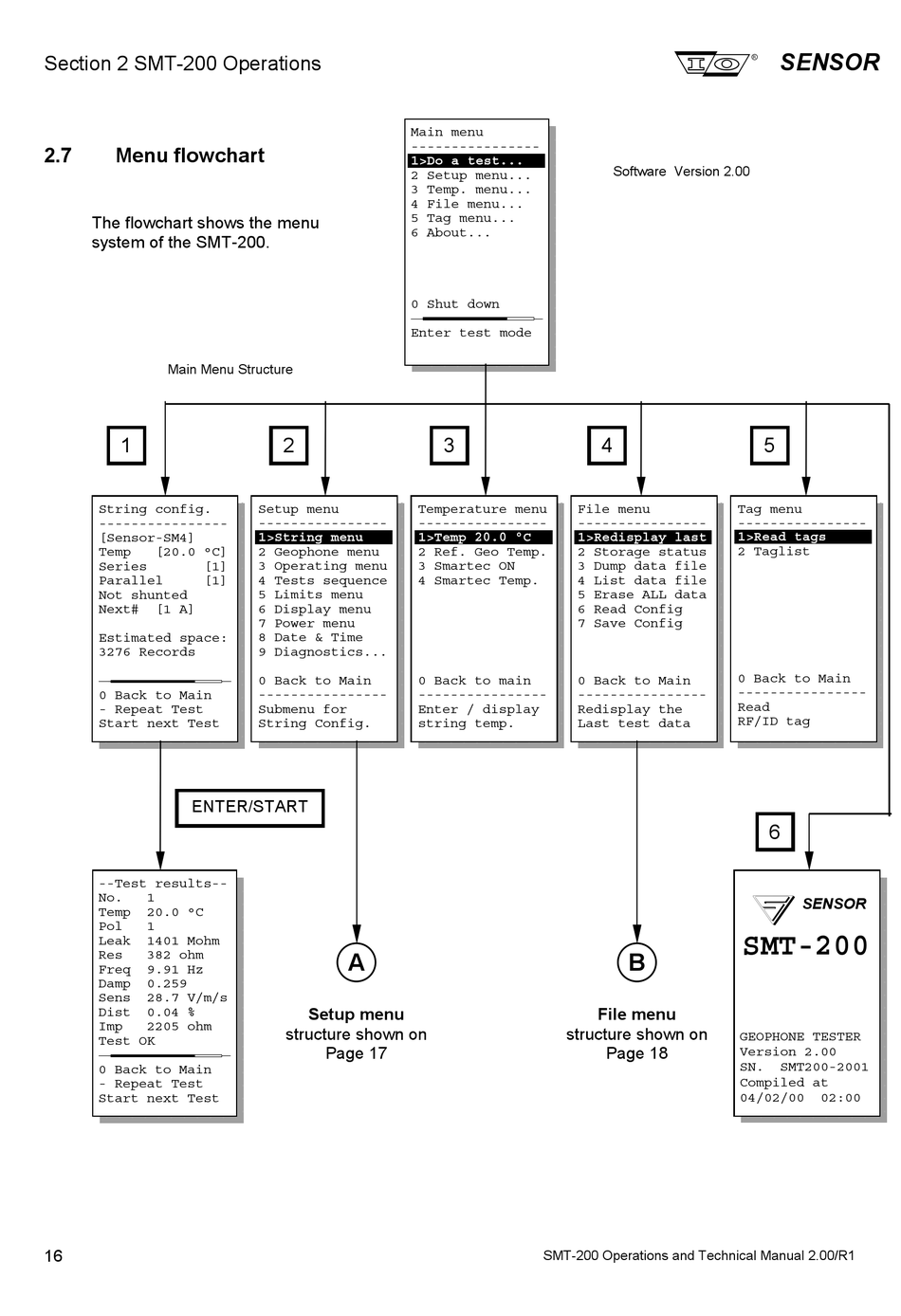

Menu flowchart

The flowchart shows the menu
system of the SMT-200.
Main Menu Structure
1
String config.
----------------
[Sensor-SM4]
Temp [20.0 °C]
Series [1]
Parallel [1]
Not shunted
Next# [1 A]
Estimated space:
3276 Records
0 Back to Main
- Repeat Test
Start next Test
ENTER/START
--Test results--
No. 1
Temp 20.0 °C
Pol 1
Leak 1401 Mohm
Res 382 ohm
Freq 9.91 Hz
Damp 0.259
Sens 28.7 V/m/s
Dist 0.04 %
Imp 2205 ohm
Test OK
0 Back to Main
- Repeat Test
Start next Test
16
Main menu
----------------
1>Do a test...
2 Setup menu...
3 Temp. menu...
4 File menu...
5 Tag menu...
6 About...
0 Shut down
Enter test mode
2
Setup menu Temperature menu
---------------- ----------------
1>String menu 1>Temp 20.0 °C
2 Geophone menu 2 Ref. Geo Temp.
3 Operating menu 3 Smartec ON
4 Tests sequence 4 Smartec Temp.
5 Limits menu
6 Display menu
7 Power menu
8 Date & Time
9 Diagnostics...
0 Back to Main 0 Back to main
---------------- ----------------
Submenu for Enter / display
String Config. string temp.
A
Setup menu
structure shown on
Page 17
Software Version 2.00
3 4
File menu
----------------
1>Redisplay last
2 Storage status
3 Dump data file
4 List data file
5 Erase ALL data
6 Read Config
7 Save Config
0 Back to Main
----------------
Redisplay the
Last test data
File menu
structure shown on
Page 18
SMT-200 Operations and Technical Manual 2.00/R1
SENSOR
Io
5
Tag menu
----------------
1>Read tags
2 Taglist
0 Back to Main
----------------
Read
RF/ID tag
6
SMT-200
B
GEOPHONE TESTER
Version 2.00
SN. SMT200-2001
Compiled at
04/02/00
SENSOR
02:00
