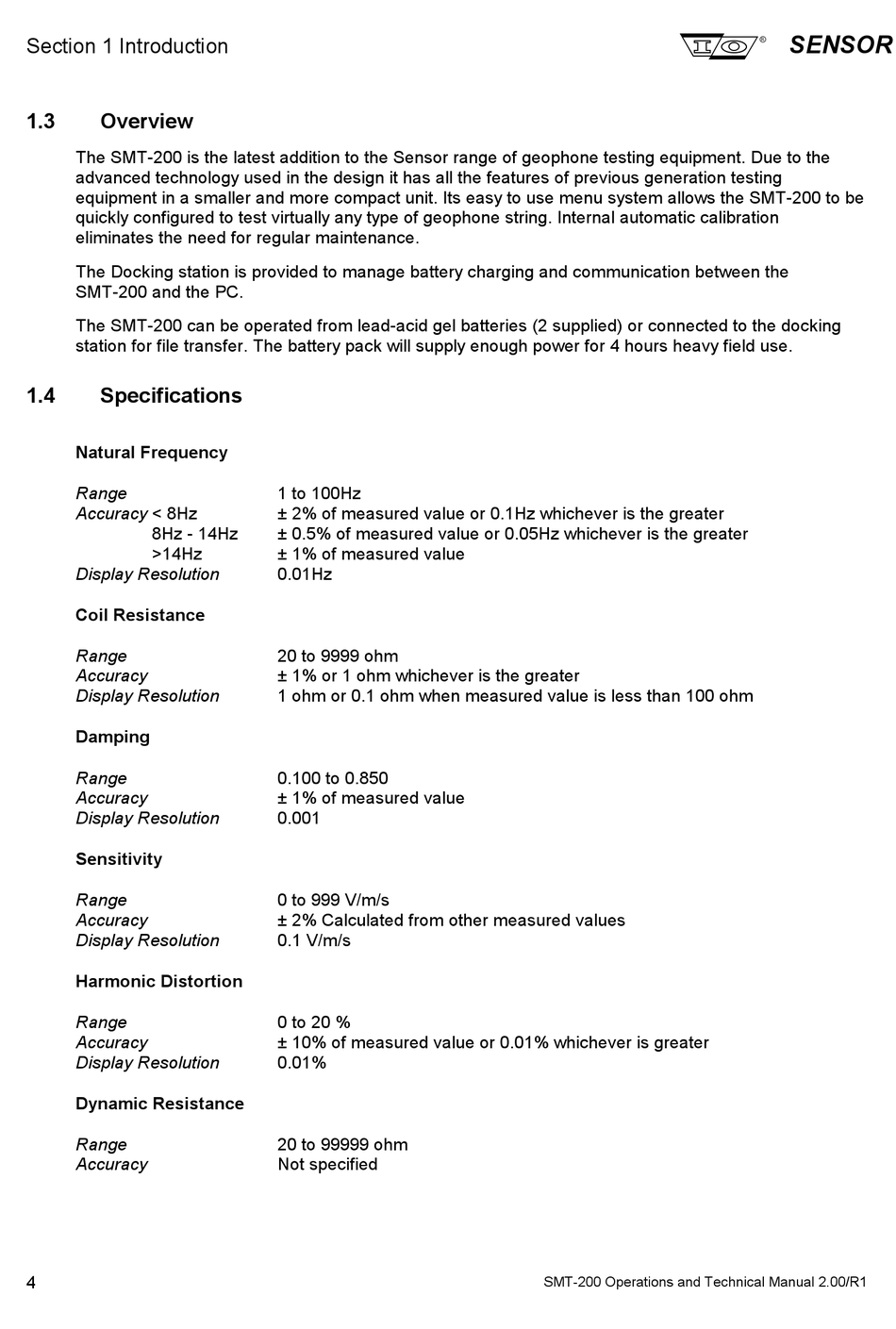

Overview; Specifications - Sensor SMT-200 Operation And Technical Manual

Section 1 Introduction
1.3

Overview

The SMT-200 is the latest addition to the Sensor range of geophone testing equipment. Due to the
advanced technology used in the design it has all the features of previous generation testing
equipment in a smaller and more compact unit. Its easy to use menu system allows the SMT-200 to be
quickly configured to test virtually any type of geophone string. Internal automatic calibration
eliminates the need for regular maintenance.
The Docking station is provided to manage battery charging and communication between the
SMT-200 and the PC.
The SMT-200 can be operated from lead-acid gel batteries (2 supplied) or connected to the docking
station for file transfer. The battery pack will supply enough power for 4 hours heavy field use.
1.4

Specifications

Natural Frequency
Range
Accuracy < 8Hz
8Hz - 14Hz
>14Hz
Display Resolution
Coil Resistance
Range
Accuracy
Display Resolution
Damping
Range
Accuracy
Display Resolution
Sensitivity
Range
Accuracy
Display Resolution
Harmonic Distortion
Range
Accuracy
Display Resolution
Dynamic Resistance
Range
Accuracy
4
1 to 100Hz
± 2% of measured value or 0.1Hz whichever is the greater
± 0.5% of measured value or 0.05Hz whichever is the greater
± 1% of measured value
0.01Hz
20 to 9999 ohm
± 1% or 1 ohm whichever is the greater
1 ohm or 0.1 ohm when measured value is less than 100 ohm
0.100 to 0.850
± 1% of measured value
0.001
0 to 999 V/m/s
± 2% Calculated from other measured values
0.1 V/m/s
0 to 20 %
± 10% of measured value or 0.01% whichever is greater
0.01%
20 to 99999 ohm
Not specified
Io
SMT-200 Operations and Technical Manual 2.00/R1
