Section 2 SMT-200 Operations
2.5

Battery level

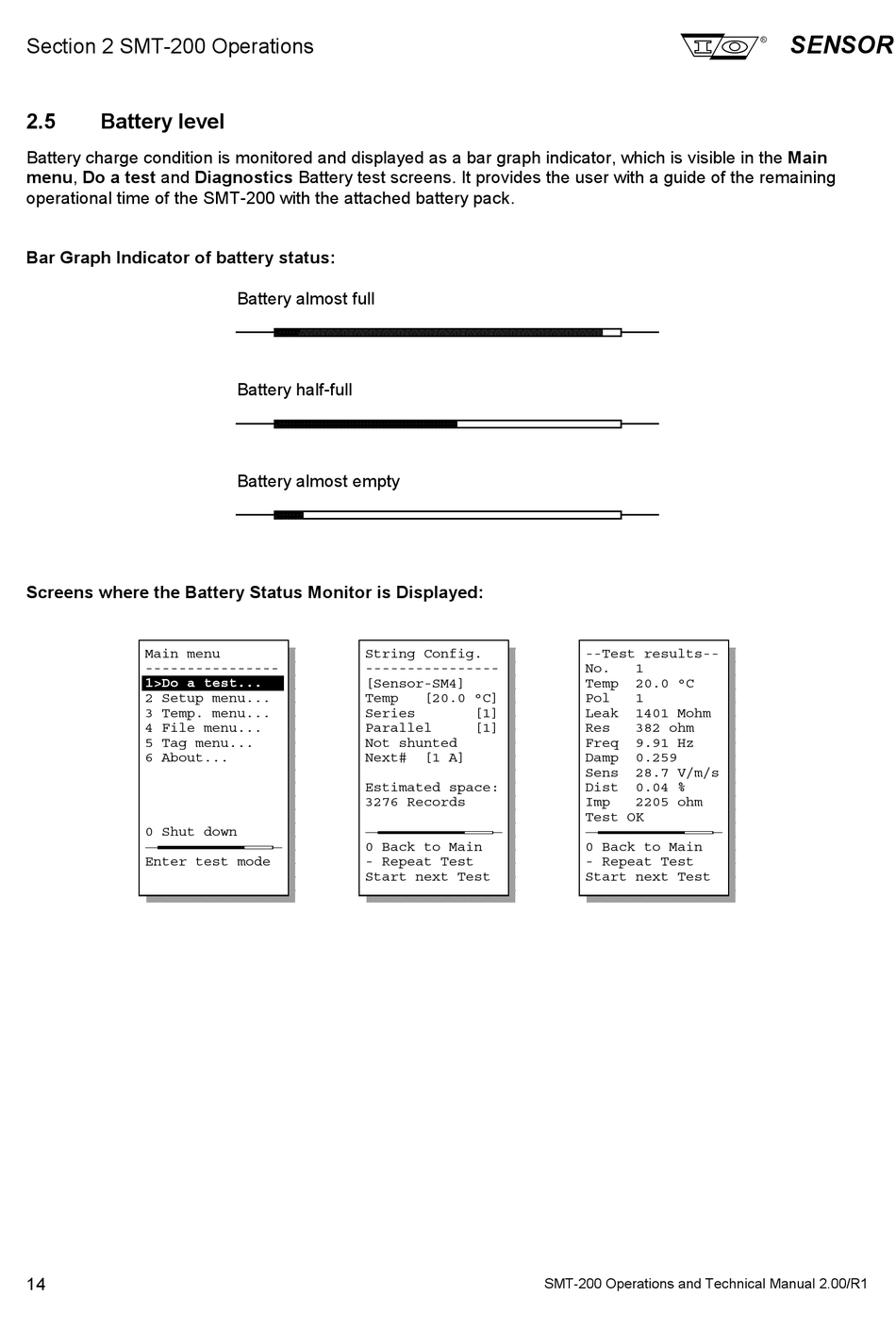

Battery charge condition is monitored and displayed as a bar graph indicator, which is visible in the Main
menu, Do a test and Diagnostics Battery test screens. It provides the user with a guide of the remaining
operational time of the SMT-200 with the attached battery pack.
Bar Graph Indicator of battery status:
Screens where the Battery Status Monitor is Displayed:
Main menu
----------------
1>Do a test...
2 Setup menu...
3 Temp. menu...
4 File menu...
5 Tag menu...
6 About...
0 Shut down
Enter test mode
14
Battery almost full
Battery half-full
Battery almost empty
String Config.
----------------
[Sensor-SM4]
Temp
Series
Parallel
Not shunted
Next#
Estimated space:
3276 Records
0 Back to Main
- Repeat Test
Start next Test
--Test results--
No.
Temp
[20.0 °C] Pol
[1] Leak
[1] Res
Freq
[1 A] Damp
Sens
Dist
Imp
Test OK
0 Back to Main
- Repeat Test
Start next Test
SMT-200 Operations and Technical Manual 2.00/R1
