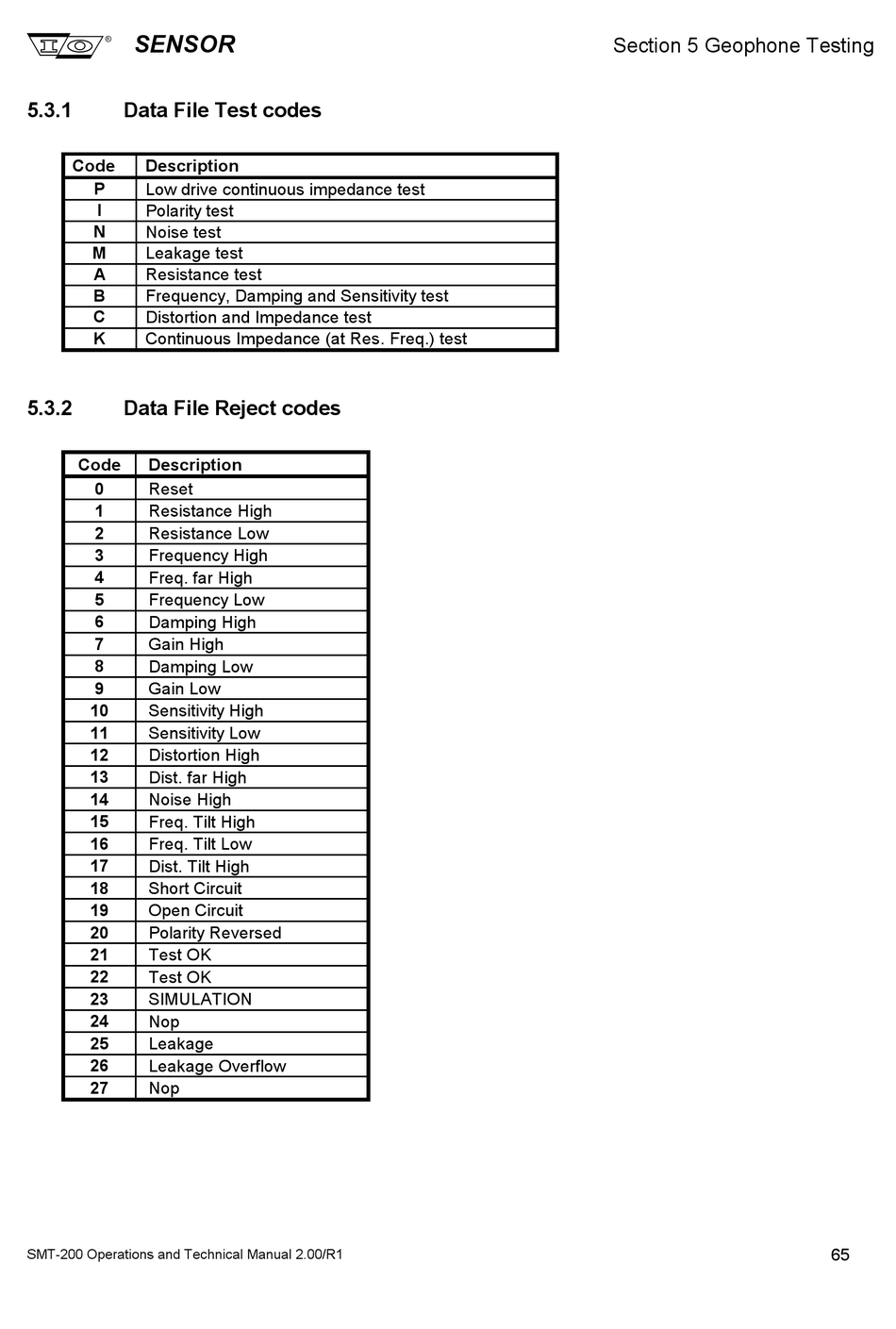

5.3.1 Data File Test codes
Code Description
P Low drive continuous impedance test
I Polarity test
N Noise test
M
Leakage test
A
Resistance test
B Frequency, Damping and Sensitivity test
C Distortion and Impedance test
K Continuous Impedance (at Res. Freq.) test
5.3.2 Data File Reject codes
Code Description
0 Reset
1 Resistance High
2 Resistance Low
3 Frequency High
4 Freq. far High
5 Frequency Low
6 Damping High
7 Gain High
8 Damping Low
9 Gain Low
10 Sensitivity High
11
Sensitivity Low
12
Distortion High
13
Dist. far High
14 Noise High
15 Freq. Tilt High
16 Freq. Tilt Low
17 Dist. Tilt High
18 Short Circuit
19 Open Circuit
20 Polarity Reversed
21 Test OK
22 Test OK
23 SIMULATION
24 Nop
25 Leakage
26
Leakage Overflow
27
Nop
