Section 2 SMT-200 Operations
Main menu
----------------
1>Do a test...
2 Setup menu...
3 Temp. menu...
4 File menu...
5 Tag menu...
6 About...
0 Shut down
Enter test mode
Main menu
----------------
1>Do a test...
2 Setup menu...
3 Temp. menu...
4 File menu...
5 Tag menu...
6 About...
0 Shut down
Enter test mode

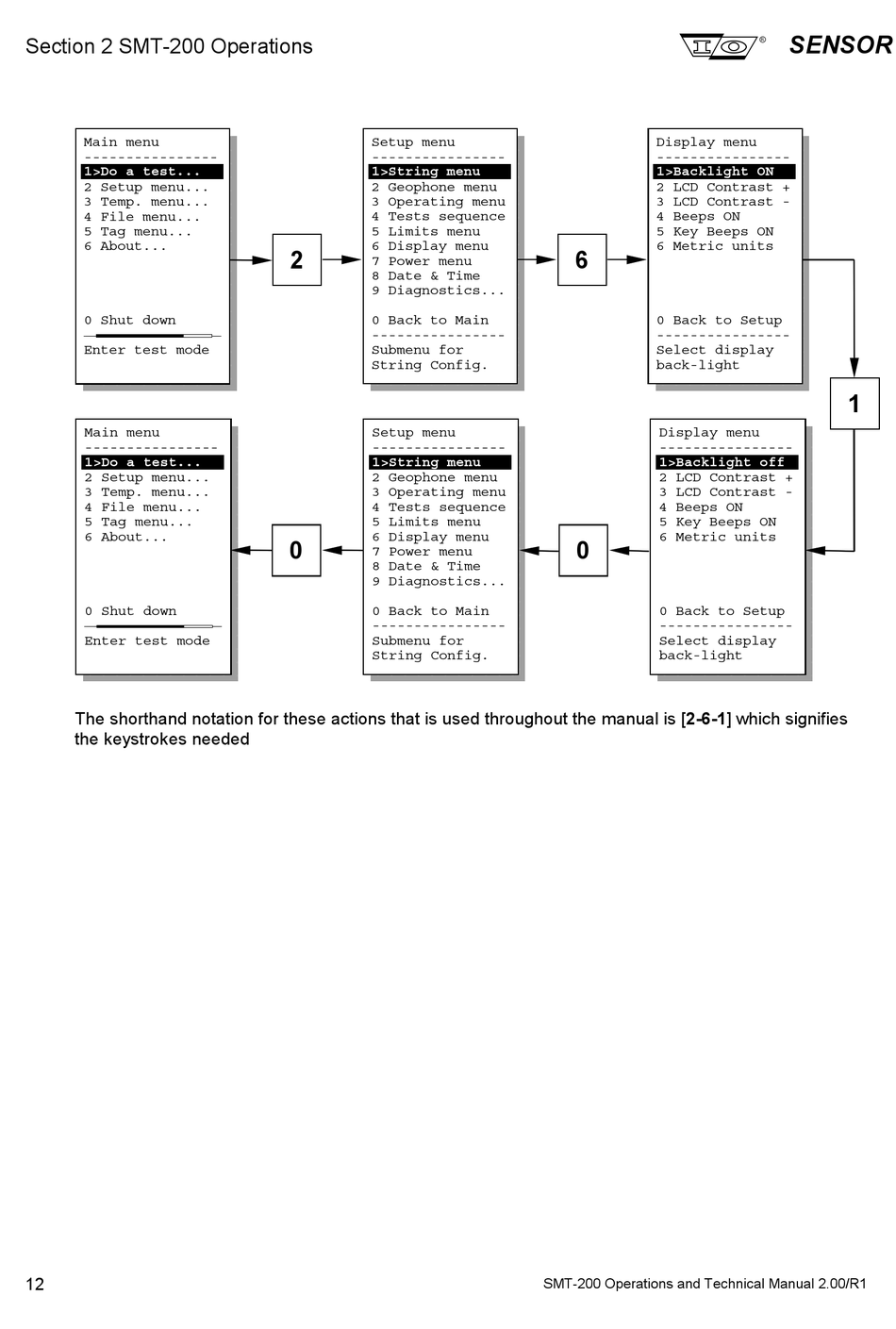

The shorthand notation for these actions that is used throughout the manual is [2-6-1] which signifies
the keystrokes needed
12
Setup menu
----------------
1>String menu
2 Geophone menu
3 Operating menu
4 Tests sequence
5 Limits menu
6 Display menu
2
7 Power menu
8 Date & Time
9 Diagnostics...
0 Back to Main
----------------
Submenu for
String Config.
Setup menu
----------------
1>String menu
2 Geophone menu
3 Operating menu
4 Tests sequence
5 Limits menu
6 Display menu
0
7 Power menu
8 Date & Time
9 Diagnostics...
0 Back to Main
----------------
Submenu for
String Config.
Io
Display menu
----------------
1>Backlight ON
2 LCD Contrast +
3 LCD Contrast -
4 Beeps ON
5 Key Beeps ON
6 Metric units
6
0 Back to Setup
----------------
Select display
back-light
Display menu
----------------
1>Backlight off
2 LCD Contrast +
3 LCD Contrast -
4 Beeps ON
5 Key Beeps ON
6 Metric units
0
0 Back to Setup
----------------
Select display
back-light
SMT-200 Operations and Technical Manual 2.00/R1
