Io SENSOR
7.1

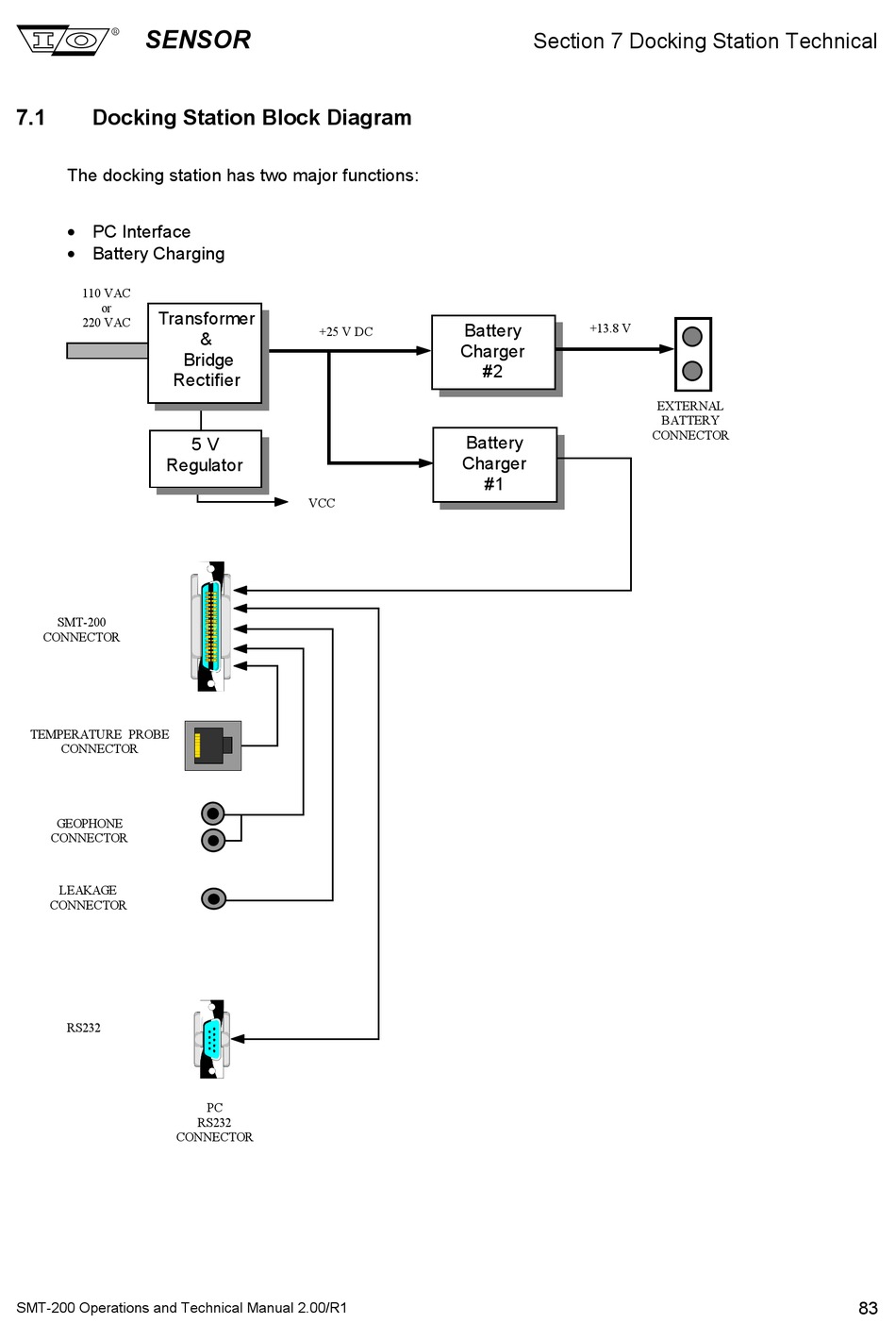

Docking Station Block Diagram
The docking station has two major functions:
• PC Interface
• Battery Charging
110 VAC
or
Transformer
220 VAC
Bridge
Rectifier
Regulator
SMT-200
CONNECTOR
TEMPERATURE PROBE
CONNECTOR
GEOPHONE
CONNECTOR
LEAKAGE
CONNECTOR
RS232
CONNECTOR
SMT-200 Operations and Technical Manual 2.00/R1
+25 V DC
&
5 V
VCC
PC
RS232
Section 7 Docking Station Technical
Battery
+13.8 V
Charger
#2
Battery
Charger
#1
EXTERNAL
BATTERY
CONNECTOR
83
