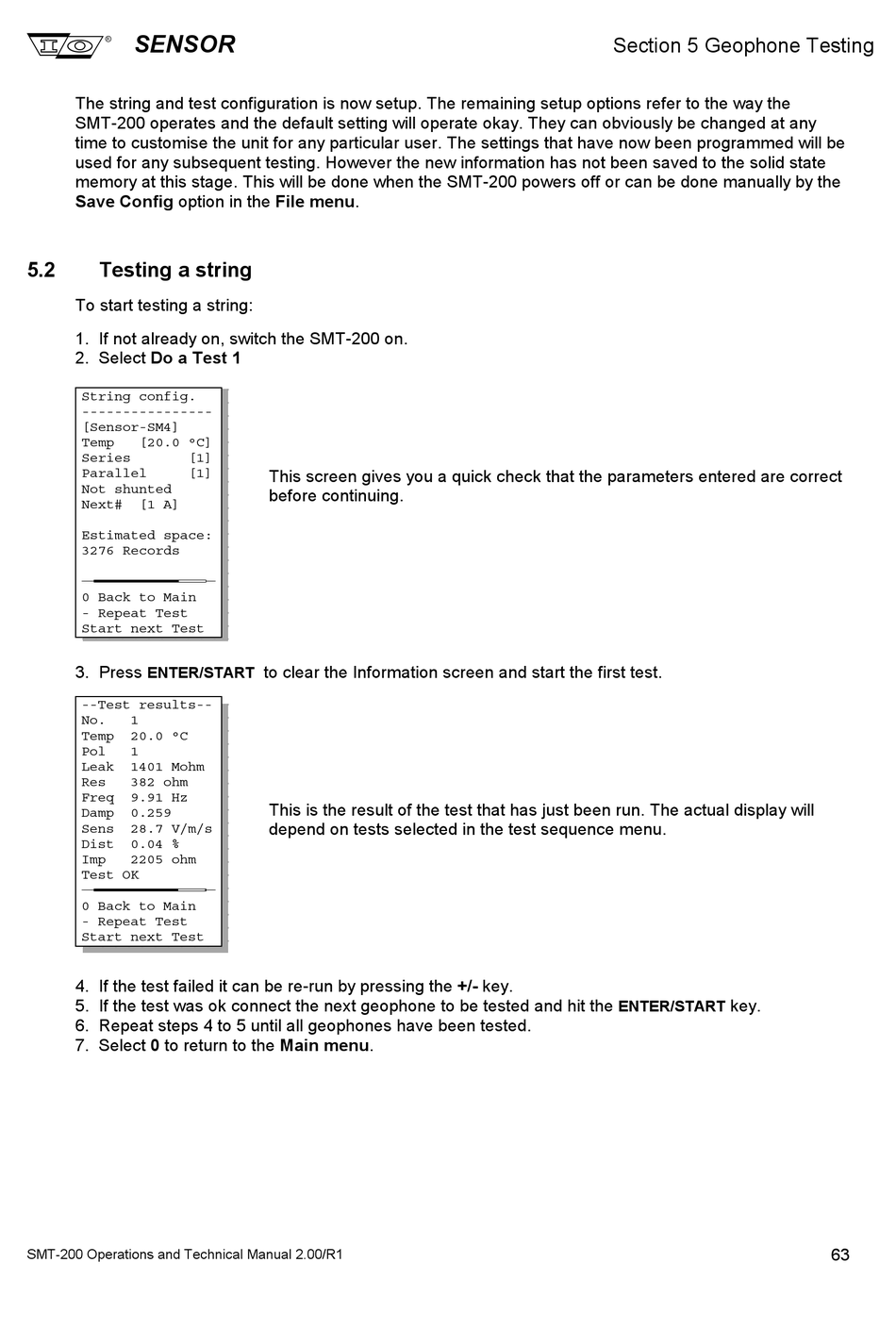

The string and test configuration is now setup. The remaining setup options refer to the way the
SMT-200 operates and the default setting will operate okay. They can obviously be changed at any
time to customise the unit for any particular user. The settings that have now been programmed will be
used for any subsequent testing. However the new information has not been saved to the solid state
memory at this stage. This will be done when the SMT-200 powers off or can be done manually by the
Save Config option in the File menu.
5.2 Testing a string
To start testing a string:
1. If not already on, switch the SMT-200 on.
2. Select Do a Test 1
String config.
----------------
[Sensor-SM4]
Temp [20.0 °C]
Series [1]
Parallel [1]
Not shunted
Next# [1 A]
Estimated space:
3276 Records
0 Back to Main
- Repeat Test
Start next Test
3. Press
ENTER/START
--Test results--
No. 1
Temp 20.0 °C
Pol 1
Leak 1401 Mohm
Res 382 ohm
Freq 9.91 Hz
Damp 0.259
Sens 28.7 V/m/s
Dist 0.04 %
Imp 2205 ohm
Test OK
0 Back to Main
- Repeat Test
Start next Test
4. If the test failed it can be re-run by pressing the +/- key.
5. If the test was ok connect the next geophone to be tested and hit the
6. Repeat steps 4 to 5 until all geophones have been tested.
7. Select 0 to return to the Main menu.
SMT-200 Operations and Technical Manual 2.00/R1
This screen gives you a quick check that the parameters entered are correct
before continuing.
to clear the Information screen and start the first test.
This is the result of the test that has just been run. The actual display will
depend on tests selected in the test sequence menu.
Section 5 Geophone Testing
key.
ENTER/START
