SENSOR
Io

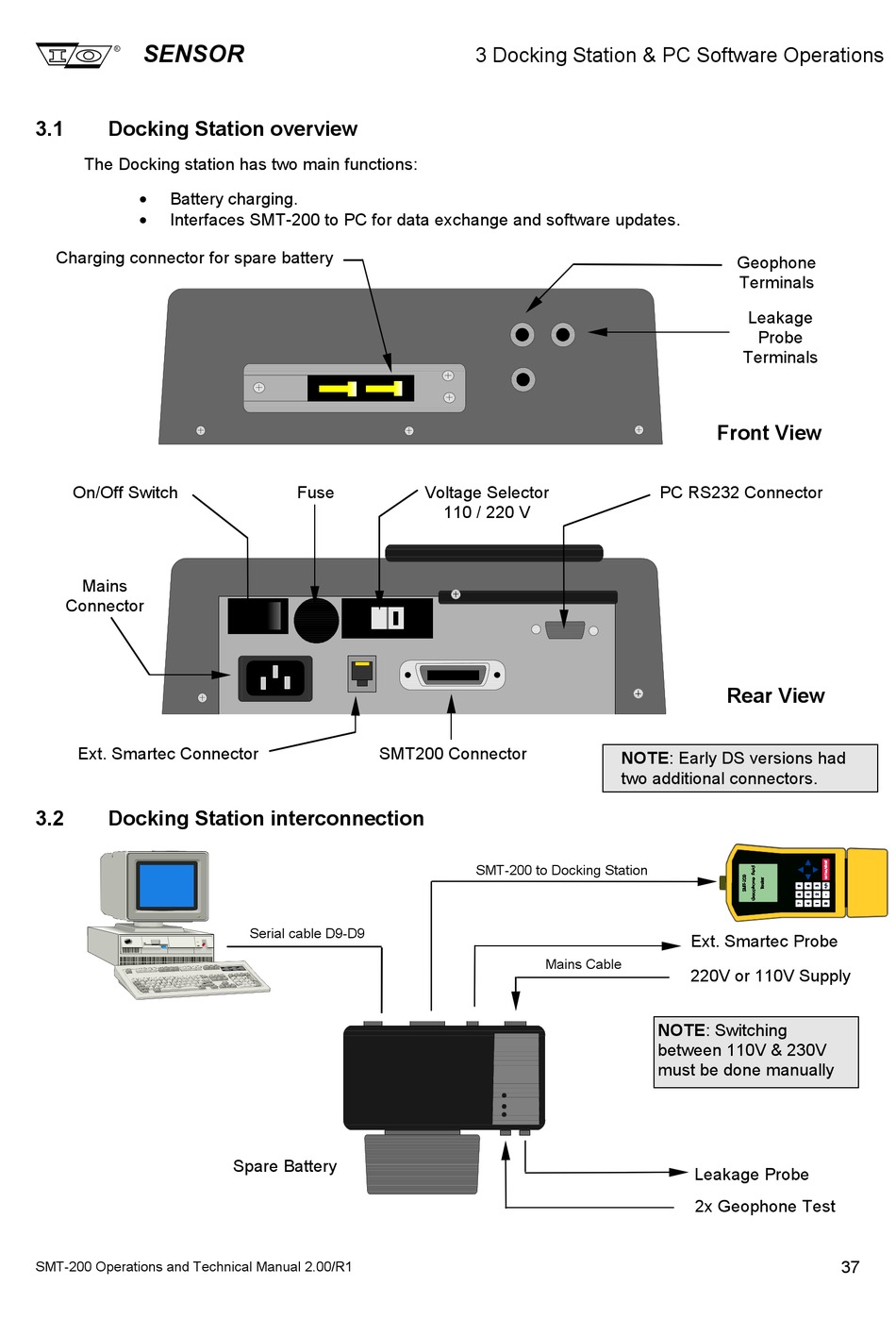

3.1 Docking Station overview
The Docking station has two main functions:
•
Battery charging.
•
Interfaces SMT-200 to PC for data exchange and software updates.
Charging connector for spare battery
On/Off Switch
Mains
Connector
Ext. Smartec Connector
3.2 Docking Station interconnection
SMT-200 Operations and Technical Manual 2.00/R1
Fuse
SMT200 Connector
Serial cable D9-D9
Spare Battery
3 Docking Station & PC Software Operations
Voltage Selector
110 / 220 V
SMT-200 to Docking Station
Mains Cable
Geophone
Terminals
Leakage
Probe
Terminals
Front View
PC RS232 Connector
Rear View
NOTE: Early DS versions had
two additional connectors.
Ext. Smartec Probe
220V or 110V Supply
NOTE: Switching
between 110V & 230V
must be done manually
Leakage Probe
2x Geophone Test
37
