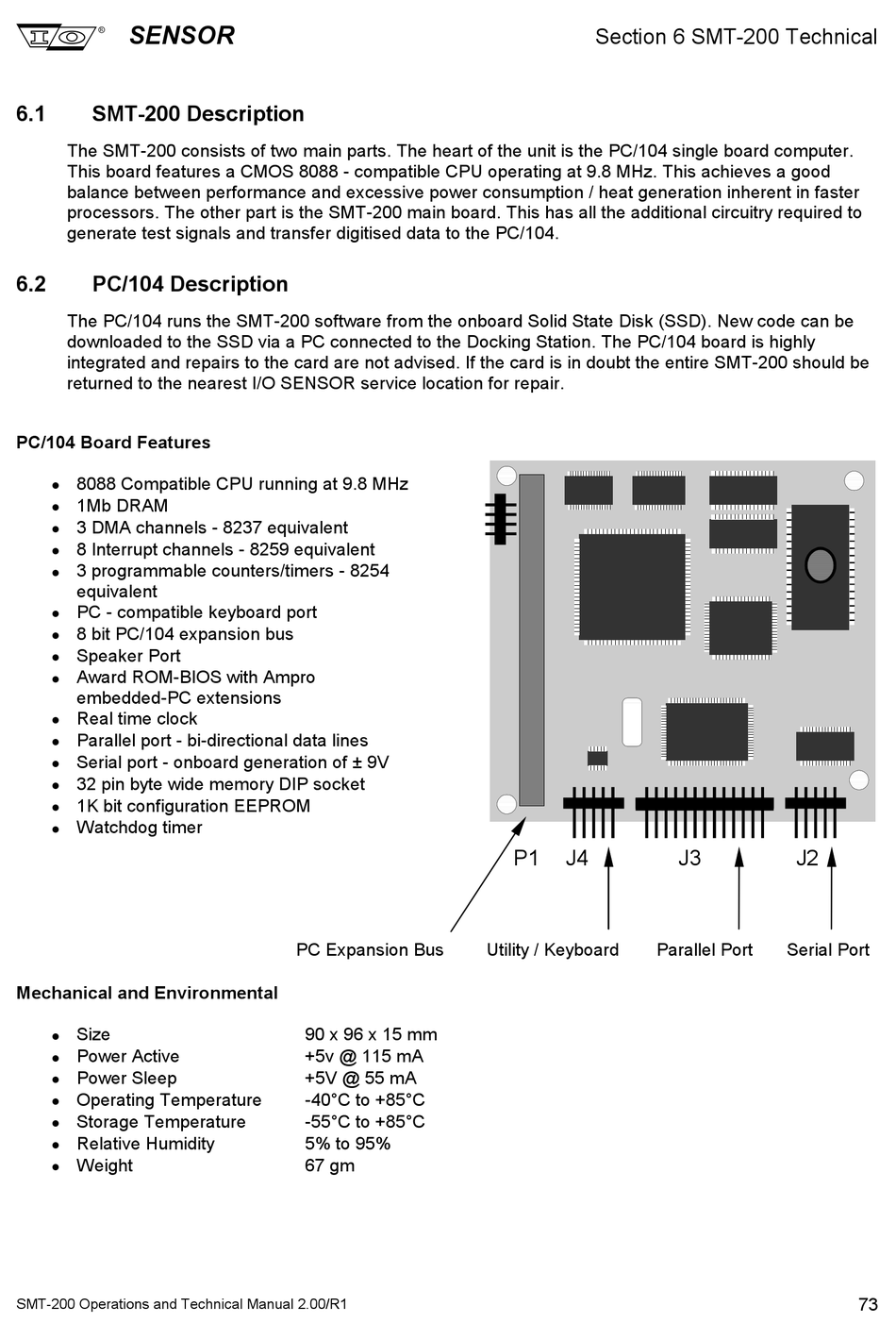

6.1 SMT-200 Description
The SMT-200 consists of two main parts. The heart of the unit is the PC/104 single board computer.
This board features a CMOS 8088 - compatible CPU operating at 9.8 MHz. This achieves a good
balance between performance and excessive power consumption / heat generation inherent in faster
processors. The other part is the SMT-200 main board. This has all the additional circuitry required to
generate test signals and transfer digitised data to the PC/104.
6.2 PC/104 Description
The PC/104 runs the SMT-200 software from the onboard Solid State Disk (SSD). New code can be
downloaded to the SSD via a PC connected to the Docking Station. The PC/104 board is highly
integrated and repairs to the card are not advised. If the card is in doubt the entire SMT-200 should be
returned to the nearest I/O SENSOR service location for repair.
PC/104 Board Features
• 8088 Compatible CPU running at 9.8 MHz
• 1Mb DRAM
• 3 DMA channels - 8237 equivalent
• 8 Interrupt channels - 8259 equivalent
• 3 programmable counters/timers - 8254
equivalent
• PC - compatible keyboard port
• 8 bit PC/104 expansion bus
• Speaker Port
• Award ROM-BIOS with Ampro
embedded-PC extensions
• Real time clock
• Parallel port - bi-directional data lines
• Serial port - onboard generation of ± 9V
• 32 pin byte wide memory DIP socket
• 1K bit configuration EEPROM
• Watchdog timer
Mechanical and Environmental
• Size
• Power Active
• Power Sleep
• Operating Temperature
• Storage Temperature
• Relative Humidity
• Weight
SMT-200 Operations and Technical Manual 2.00/R1
PC Expansion Bus
90 x 96 x 15 mm
+5v @ 115 mA
+5V @ 55 mA
-40°C to +85°C
-55°C to +85°C
5% to 95%
67 gm
Section 6 SMT-200 Technical
P1 J4
Utility / Keyboard
J3 J2
Parallel Port Serial Port
