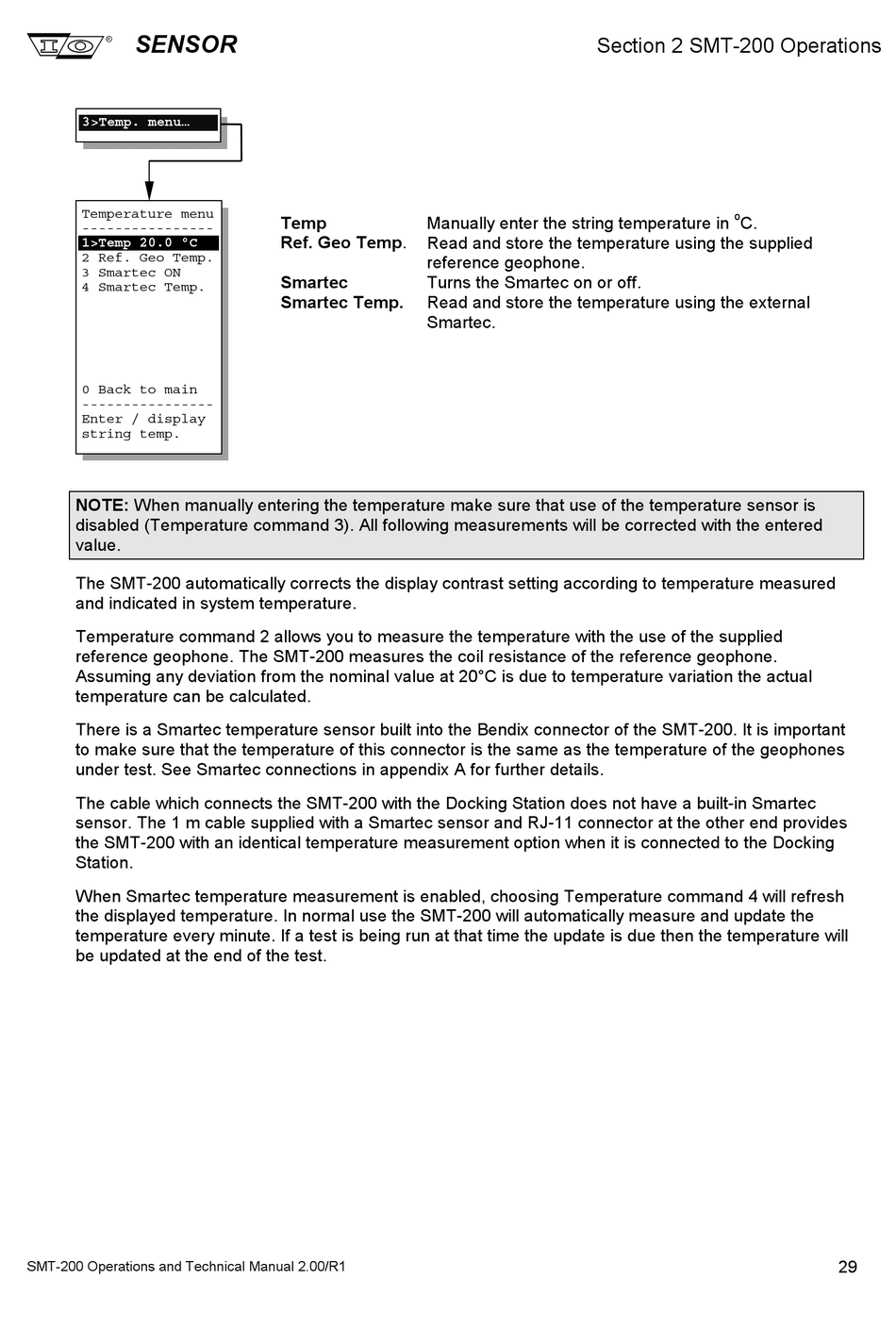

Sensor SMT-200 Operation And Technical Manual page 39

SENSOR
Io
3>Temp. menu...
Temperature menu
----------------
1>Temp 20.0 °C
2 Ref. Geo Temp.
3 Smartec ON
4 Smartec Temp.
0 Back to main
----------------
Enter / display
string temp.
NOTE: When manually entering the temperature make sure that use of the temperature sensor is
disabled (Temperature command 3). All following measurements will be corrected with the entered
value.
The SMT-200 automatically corrects the display contrast setting according to temperature measured
and indicated in system temperature.
Temperature command 2 allows you to measure the temperature with the use of the supplied
reference geophone. The SMT-200 measures the coil resistance of the reference geophone.
Assuming any deviation from the nominal value at 20°C is due to temperature variation the actual
temperature can be calculated.
There is a Smartec temperature sensor built into the Bendix connector of the SMT-200. It is important
to make sure that the temperature of this connector is the same as the temperature of the geophones
under test. See Smartec connections in appendix A for further details.
The cable which connects the SMT-200 with the Docking Station does not have a built-in Smartec
sensor. The 1 m cable supplied with a Smartec sensor and RJ-11 connector at the other end provides
the SMT-200 with an identical temperature measurement option when it is connected to the Docking
Station.
When Smartec temperature measurement is enabled, choosing Temperature command 4 will refresh
the displayed temperature. In normal use the SMT-200 will automatically measure and update the
temperature every minute. If a test is being run at that time the update is due then the temperature will
be updated at the end of the test.
SMT-200 Operations and Technical Manual 2.00/R1
Temp Manually enter the string temperature in
Ref. Geo Temp. Read and store the temperature using the supplied
reference geophone.
Smartec Turns the Smartec on or off.
Smartec Temp. Read and store the temperature using the external
Smartec.
Section 2 SMT-200 Operations
o
C.
29
