SENSOR
Io

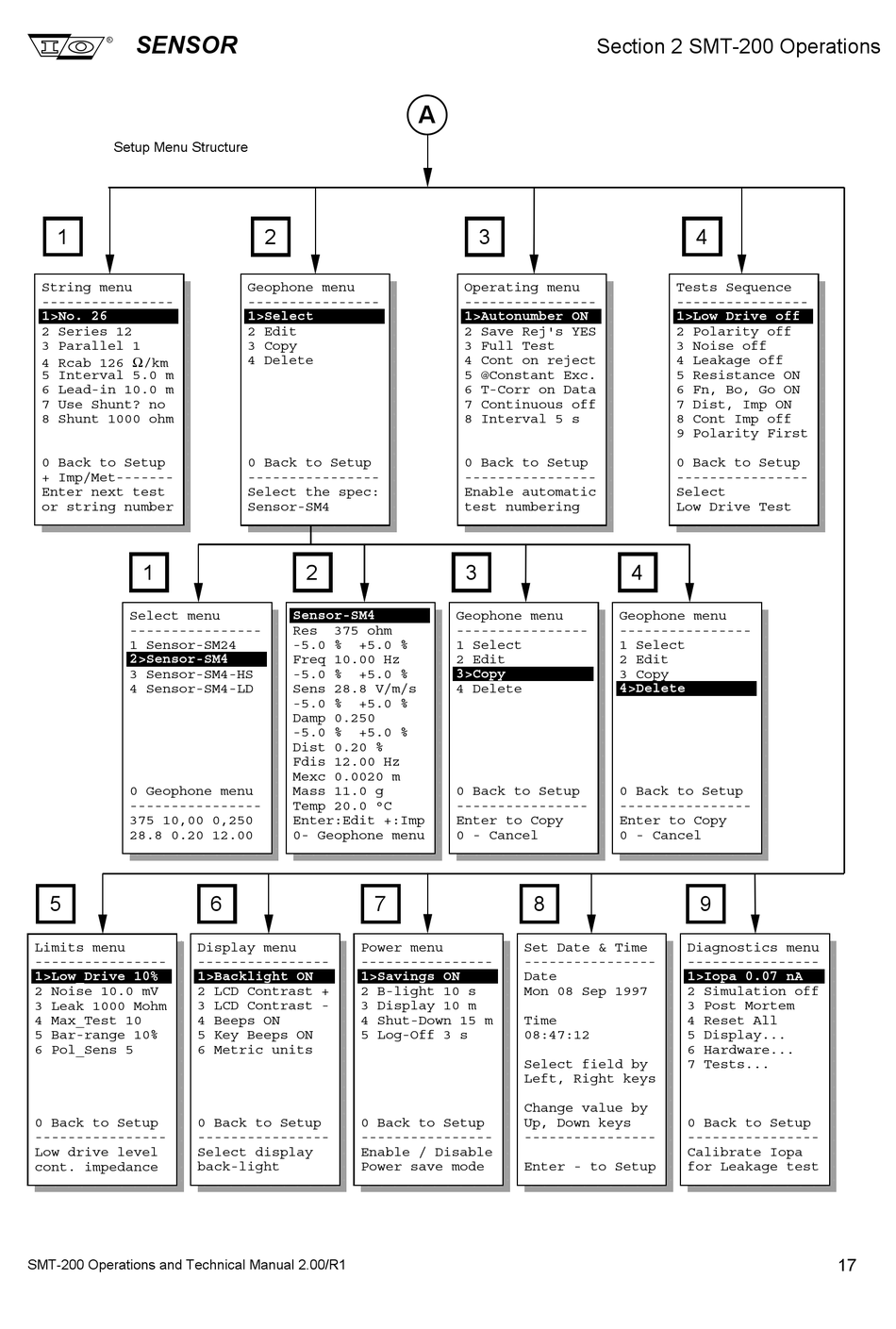

Setup Menu Structure
1
String menu
----------------
1>No. 26
2 Series 12
3 Parallel 1
4 Rcab 126 Ω/km
5 Interval 5.0 m
6 Lead-in 10.0 m
7 Use Shunt? no
8 Shunt 1000 ohm
0 Back to Setup
+ Imp/Met-------
Enter next test
or string number
1
Select menu
----------------
1 Sensor-SM24
2>Sensor-SM4
3 Sensor-SM4-HS
4 Sensor-SM4-LD
0 Geophone menu
----------------
375 10,00 0,250
28.8 0.20 12.00
5
Limits menu
----------------
1>Low_Drive 10%
2 Noise 10.0 mV
3 Leak 1000 Mohm
4 Max_Test 10
5 Bar-range 10%
6 Pol_Sens 5
0 Back to Setup
----------------
Low drive level
cont. impedance
SMT-200 Operations and Technical Manual 2.00/R1
2
Geophone menu
----------------
1>Select
2 Edit
3 Copy
4 Delete
0 Back to Setup
----------------
Select the spec:
Sensor-SM4
2
Sensor-SM4
Res 375 ohm
-5.0 % +5.0 %
Freq 10.00 Hz
-5.0 % +5.0 %
Sens 28.8 V/m/s
-5.0 % +5.0 %
Damp 0.250
-5.0 % +5.0 %
Dist 0.20 %
Fdis 12.00 Hz
Mexc 0.0020 m
Mass 11.0 g
Temp 20.0 °C
Enter:Edit +:Imp
0- Geophone menu
6
Display menu Power menu
---------------- ----------------
1>Backlight ON 1>Savings ON
2 LCD Contrast + 2 B-light 10 s
3 LCD Contrast - 3 Display 10 m
4 Beeps ON 4 Shut-Down 15 m
5 Key Beeps ON 5 Log-Off 3 s
6 Metric units
0 Back to Setup 0 Back to Setup
---------------- ----------------
Select display Enable / Disable
back-light Power save mode
A
3
Operating menu
----------------
1>Autonumber ON
2 Save Rej's YES
3 Full Test
4 Cont on reject
5 @Constant Exc.
6 T-Corr on Data
7 Continuous off
8 Interval 5 s
0 Back to Setup
----------------
Enable automatic
test numbering
3
Geophone menu
----------------
1 Select
2 Edit
3>Copy
4 Delete
0 Back to Setup
----------------
Enter to Copy
0 - Cancel
7 8
Set Date & Time
----------------
Date
Mon 08 Sep 1997
Time
08:47:12
Select field by
Left, Right keys
Change value by
Up, Down keys
----------------
Enter - to Setup
Section 2 SMT-200 Operations
4
Tests Sequence
----------------
1>Low Drive off
2 Polarity off
3 Noise off
4 Leakage off
5 Resistance ON
6 Fn, Bo, Go ON
7 Dist, Imp ON
8 Cont Imp off
9 Polarity First
0 Back to Setup
----------------
Select
Low Drive Test
4
Geophone menu
----------------
1 Select
2 Edit
3 Copy
4>Delete
0 Back to Setup
----------------
Enter to Copy
0 - Cancel
9
Diagnostics menu
----------------
1>Iopa 0.07 nA
2 Simulation off
3 Post Mortem
4 Reset All
5 Display...
6 Hardware...
7 Tests...
0 Back to Setup
----------------
Calibrate Iopa
for Leakage test
