• GND/3.3V/5V output
• External power supply
• CE compliant
• 12V @1.6 Amps
• Power measurement
• 0.051-ohm resistors for measuring current draw
Package Contents
Your ADZS-21569-EZKIT package contains the following items.
• ADZS-21569-EZKIT board
• Universal 12V DC power supply
• USB 2.0 type A to micro-B cable
• ICE-1000 emulator
Contact the vendor where you purchased your ADZS-21569-EZKIT evaluation board or contact Analog Devices,
Inc. if any item is missing.
Default Configuration
The ADZS-21569-EZKIT board is designed to run as a standalone unit.

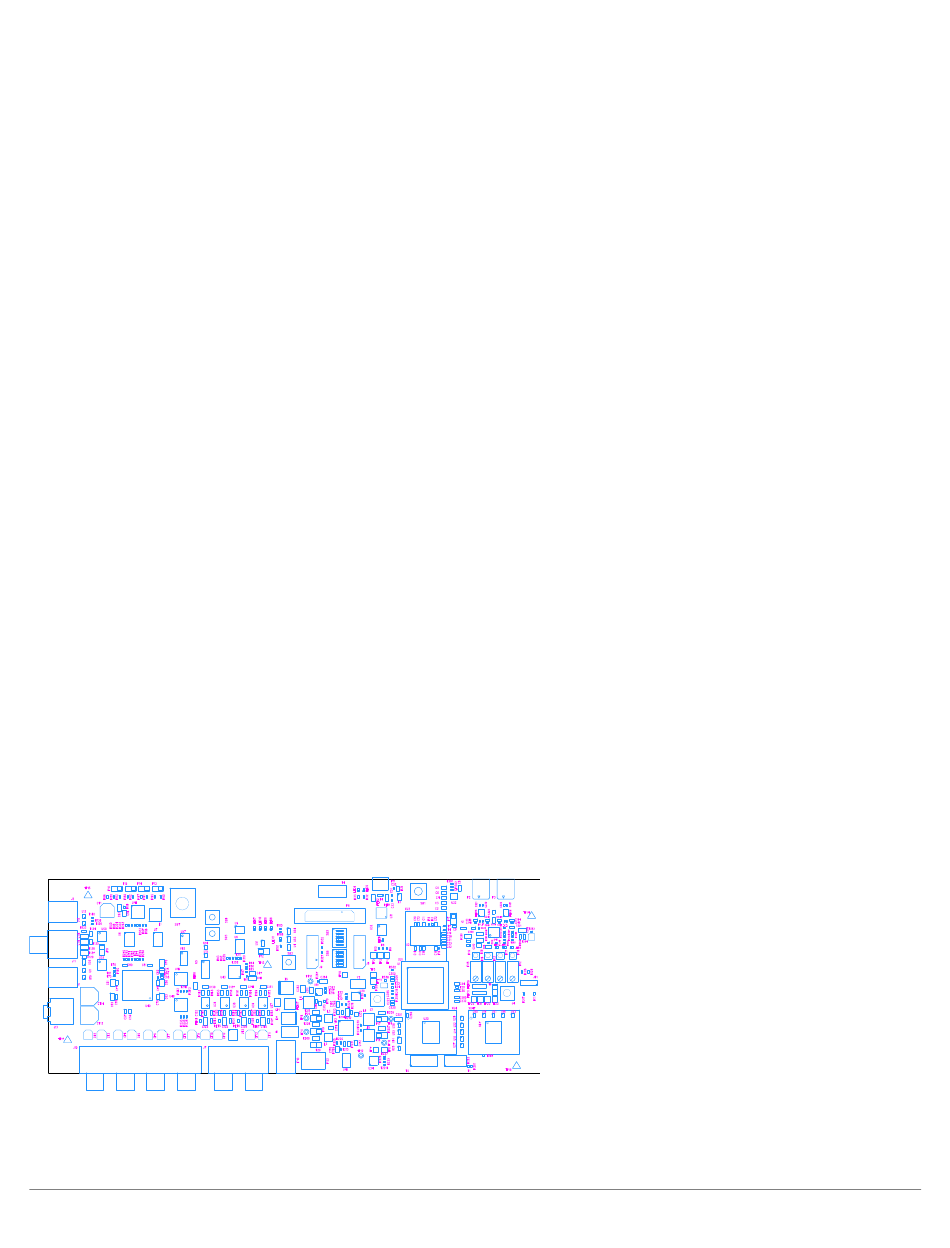

The Default Hardware Setup figure shows the default settings for jumpers and switches and the location of the
jumpers, switches, connectors, and LEDs. Confirm that your board is in the default configuration before using the
board.
Default Config
Figure 2-1: Default Hardware Setup
Connectors on the back of the board are noted with dotted lines if applicable.
NOTE:
