3.12.3. Data Link Warnings

The following data link warnings may occur in the bottom line of the Status Display.

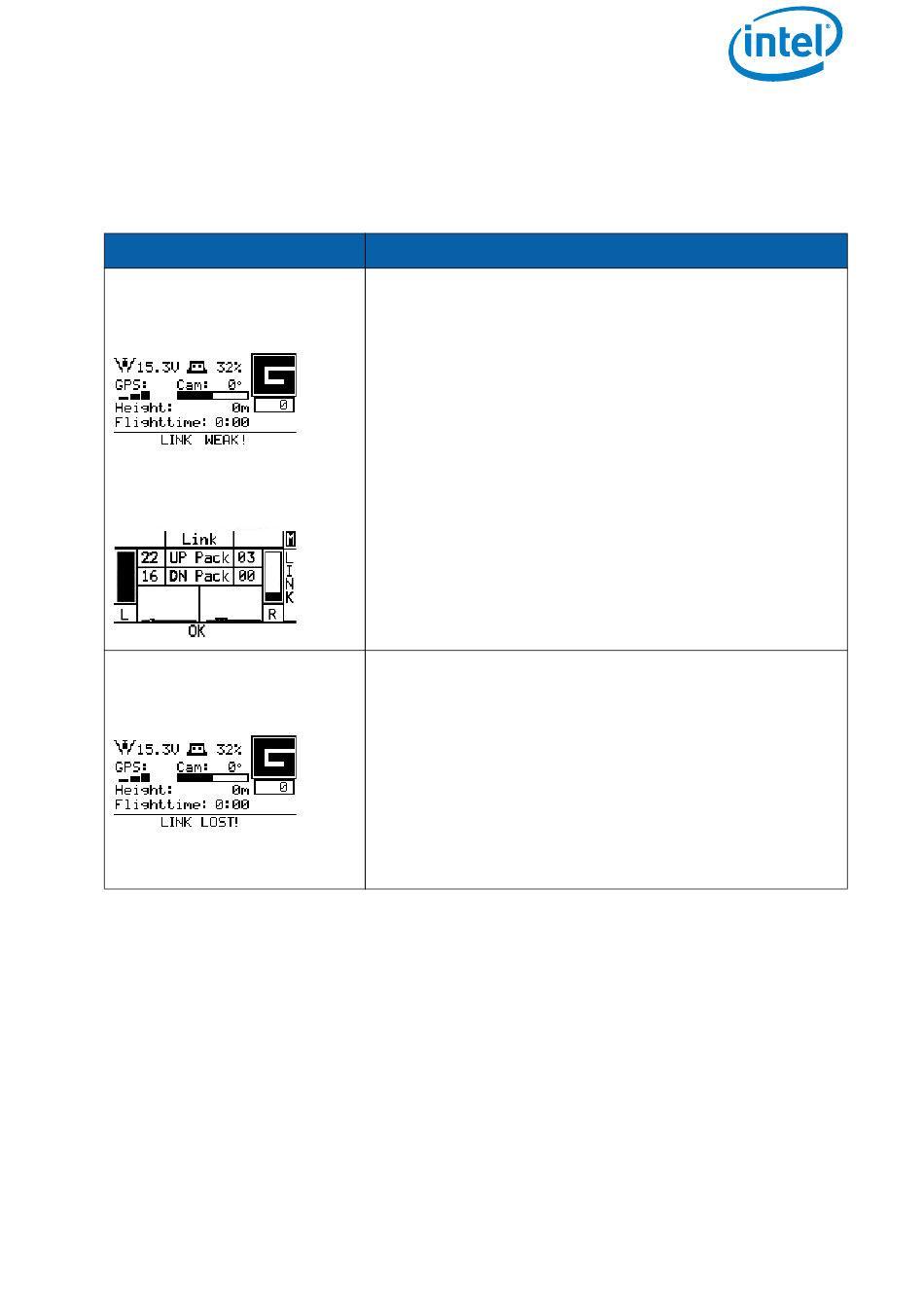

Table 3.10: Diversity Data Link warnings
SIGNALS
Acoustic: "Link weak!"
Tactile: Vibration on CTR
Visual on the Status Display:
Text on the tablet:
Link weak!
Acoustic: "Link lost!"
Tactile: Vibration on CTR
Visual on the Status Display:
Text on the tablet:
Link lost!
© 2018 Intel Corporation. All rights reserved
EXPLANATION
The Intel® Falcon™ 8+ UAV has two fully independent
data link connections. In case one link is disturbed, the
message is shown. Nevertheless, the
LINK WEAK
system can still be fully controlled via the second
independent link, on a different channel in the 2.4
GHz band.
Check if the antenna panel of the CTR is completely
unfolded and reduce the distance to the UAV until the
signal strengthens.
In case of this message pushing the arrow RIGHT but-
ton of the Status Display three times opens the shown
screen with details about the signal strength of both
data link connections.
The UAV has flown out of range and there is no data
link connection between UAV and CTR anymore. In
this case the preselected Link Loss Procedure is auto-
matically activated.
