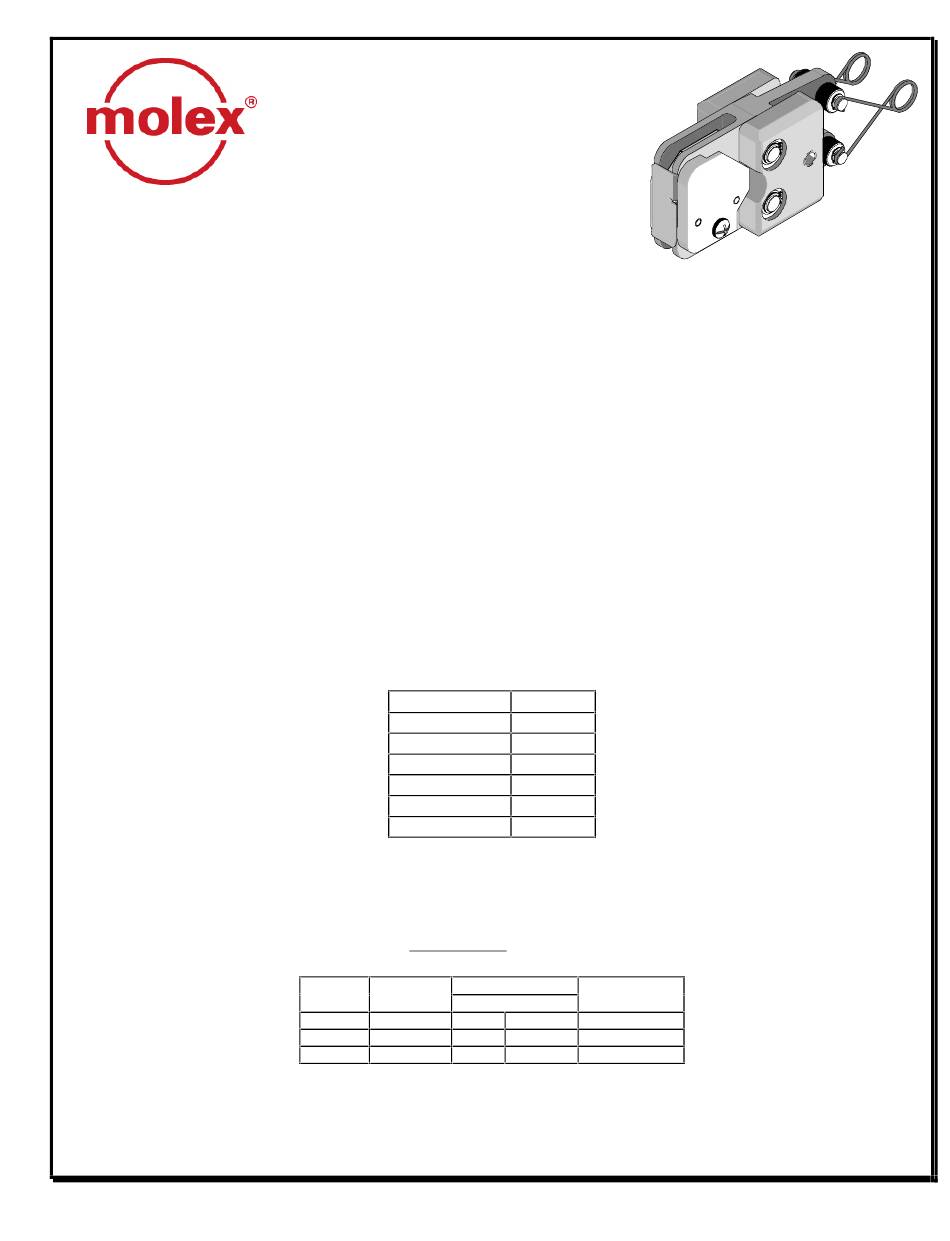

AT7050 Air Crimp Tool Head
FEATURES
Œ
Quick-change tool head for the 19279-0001 (AT-200)
Œ
Tooling kit is interchangeable with other kits in the 64001 and 64003 Series
Œ
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Œ
Pneumatic powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping
SCOPE
Nylon closed end connectors 12–22 AWG. This tool head is intended for use in the 19279-0001 (AT-200) either hand held or with
optional bench adapter 19078-0307 (ATBA) and foot switch.
Testing
Mechanical
The tensile test or pull test is a means of evaluating the mechanical properties of the crimped connections. The following charts
show the UL specifications for various wire sizes. The tensile strength is shown in pounds and indicates the minimum acceptable
force to break or separate terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding
to this list and an up to date copy is available on www.molex.com.
Doc No. 64005-0900
Release Date: 10-10-02
Revision: F
Revision Date: 05-11-05
Air Powered Crimp Tool Head
Operating Instruction Sheet
And Specifications
Part No. 64005-0900
Eng. No. AT 7050
(Replaces 19283-0048)
Wire Size (AWG)
22
20
18
16
14
12
* UL – 486 C – Closed end connectors and Wire Nuts.
Terminal
Terminal
No.
Eng No. (REF)
AWG
19160-0009
NC-2212
12 - 22
19160-0010
NC-2212-L
12 - 22
19160-0011
NC-2212-BA
12 - 22
UNCONTROLLED COPY
UL – 486 C
8
10
10
15
25
35
Wire Size
Wire Combinations
mm²
(3.30-0.35)
See Chart 1
(3.30-0.35)
See Chart 1
(3.30-0.35)
See Chart 1
Page 1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex 64005-0900
Summary of Contents for molex 64005-0900
- Page 1 * UL – 486 C – Closed end connectors and Wire Nuts. The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding to this list and an up to date copy is available on www.molex.com. Terminal...
- Page 2 Stranded or Solid UL & CSA Stranded or Solid UL & CSA Stranded or Solid UL & CSA Stranded or Solid UL & CSA UNCONTROLLED COPY Doc No. 64005-0900 Release Date: 10-10-02 Page 2 of 7 Revision: F Revision Date: 05-11-05...
- Page 3 Figure 3 Figure 2 3. Remove the crimp and inspect for proper crimp location, and check for insulation closure. Molex offers a Crimp Inspection Handbook for closed barrel industrial product. See our website or contact your sales engineer. Note: Whenever crimping without the locator, make sure the seam of the terminal is oriented up or down in the tool if using unbrazed product, as this will provide higher pull force values.
- Page 4 LUBRICATION POINTS protected with a thin coat of high quality machine oil. Do not oil (BOTH SIDES) excessively. The 64005-0900 (AT-7050) was engineered for LIGHT OIL (EVERY MONTH durability, but like any fine piece of equipment it needs cleaning OR 5,000 CRIMPS) and lubrication for a maximum service life of trouble-free crimping.
- Page 5 ** The following purchased parts are available from an Industrial supply company such as MSC (1-800-645-7270). M4 LOCKNUT W/ HEX NYLON INSERT Figure 5 UNCONTROLLED COPY Doc No. 64005-0900 Release Date: 10-10-02 Page 5 of 7 Revision: F Revision Date: 05-11-05...
- Page 6 3/16” by 3/8” Long Dowel Pin ** The following purchased parts are available from an Industrial supply company such as (MSC 1-800-645-7270). Figure 6 UNCONTROLLED COPY Doc No. 64005-0900 Release Date: 10-10-02 Page 6 of 7 Revision: F Revision Date: 05-11-05...
- Page 7 Technician ______________ Date of Calibration ______________ Calibration should be done every 5,000 cycles or 3 months. Tools should be lubricated during this operation. Molex Application Tooling Group 1150 E. Diehl Road Naperville, IL 60563 Tel: (630) 969-4550; Fax: (630) 505-0049 UNCONTROLLED COPY Doc No.
