CCS50D
5
Installation
5.1
Installation conditions
5.1.1

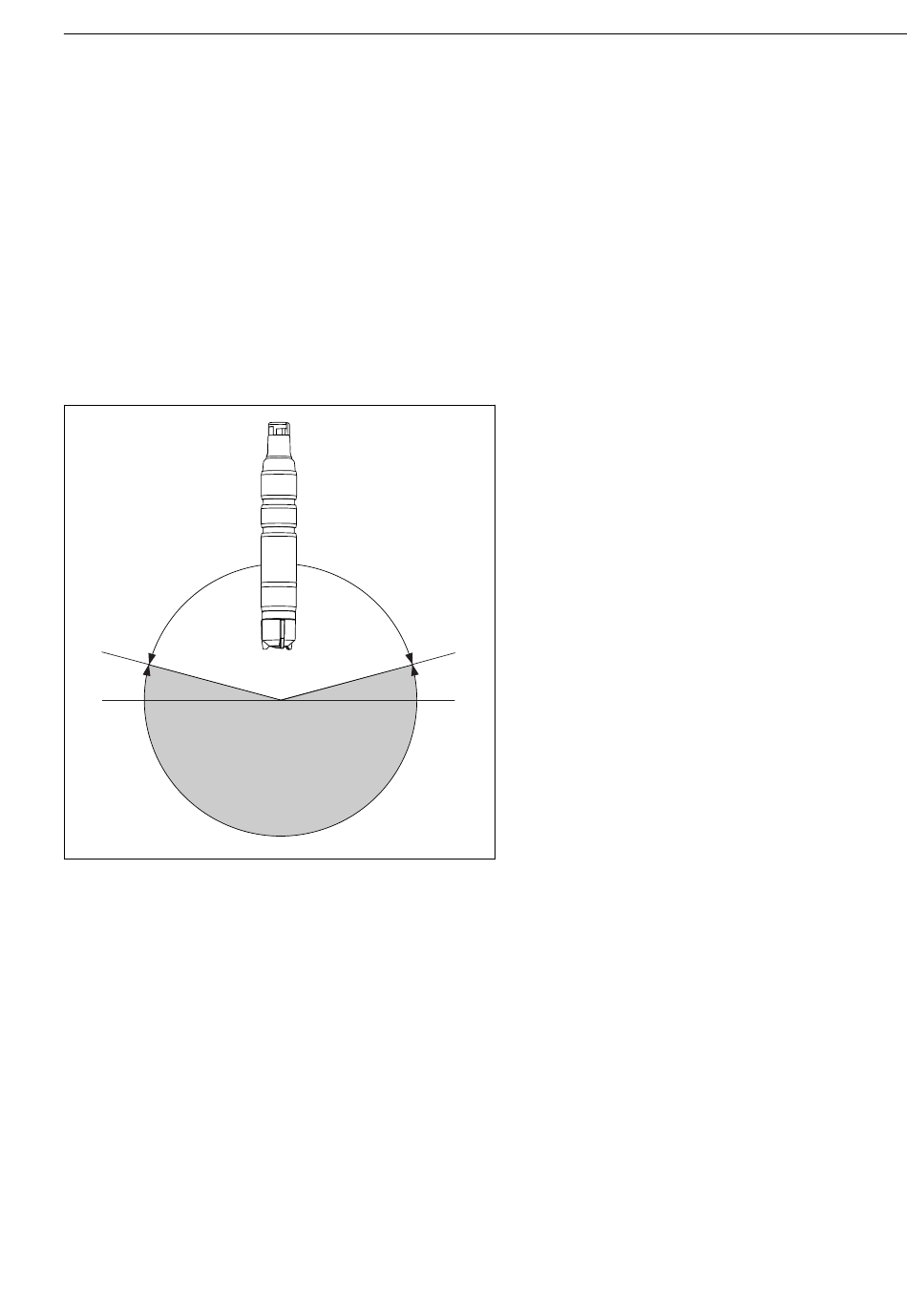

Installation position
Do not install upside-down!
‣
Install the sensor in an assembly, support or appropriate process connection at an angle of
at least 15 ˚ to the horizontal.
‣
Other angles of inclination are not permitted.
‣
Follow the instructions for installing the sensor in the Operating Instructions of the
assembly used.
15°
5.1.2
Immersion depth
50 mm (1.97 in)
Endress+Hauser
A
15°
B
A
Permitted orientation
B
Incorrect orientation
A0034236
Installation
15
