CCS50D
Equip sensor with adapter
The required adapter (clamping ring, thrust collar and O-ring) can be ordered as a mounted
sensor accessory or as a separate accessory → 41.
1.
First slide the clamping ring, then the thrust collar, and then the O-ring from the
membrane cap towards the sensor head and into the lower groove.
8

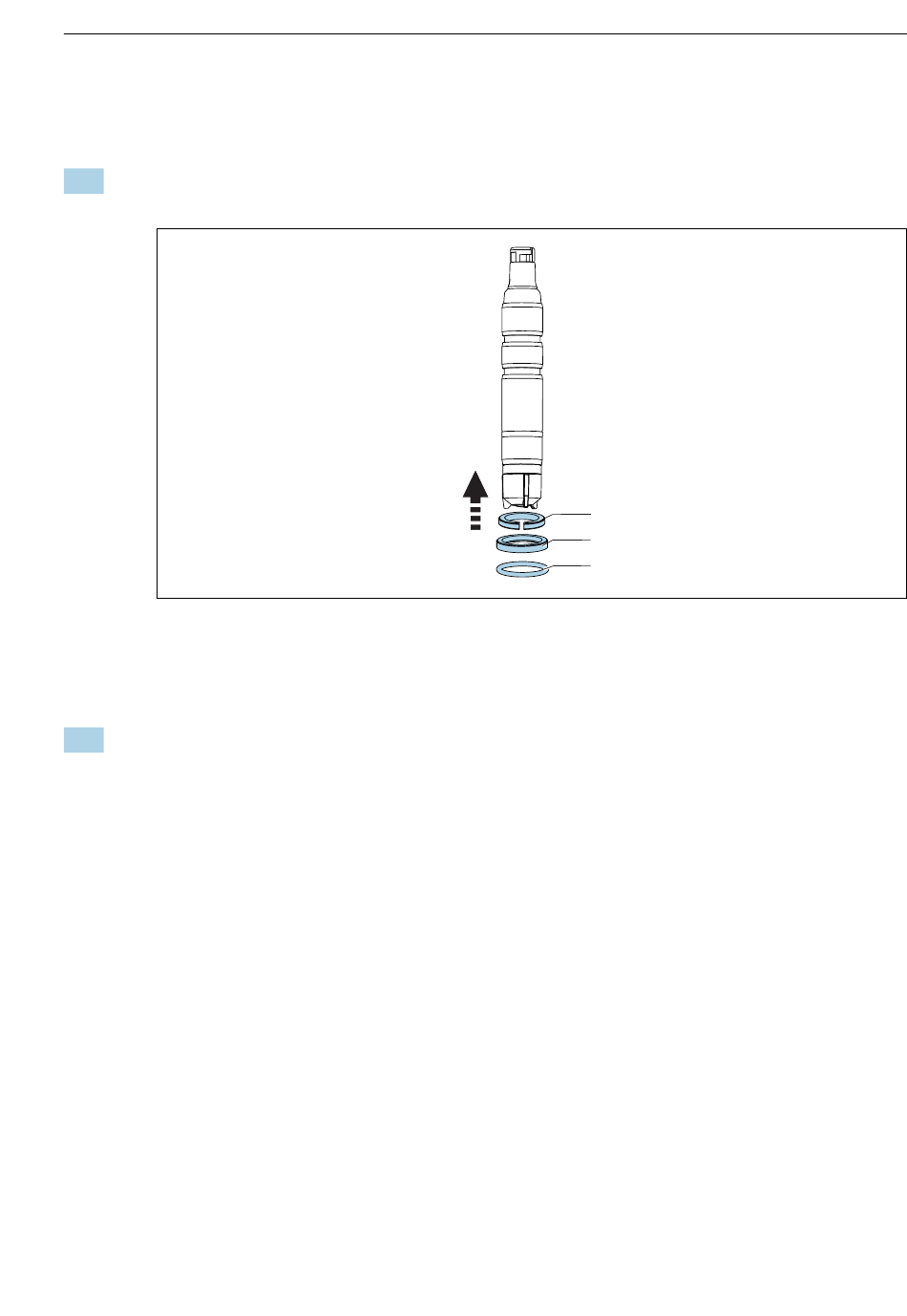

Slide clamping ring (1), thrust collar (2) and O-ring (3) upwards from the membrane
cap to the sensor shaft and into the lower groove.
Installing sensor in assembly
2.
Slide sensor with adapter for Flowfit CCA151 into the opening in the assembly.
Endress+Hauser
1
2
3
Installation
A0034247
21
