Summary of Contents for Endress+Hauser Memosens COS81D

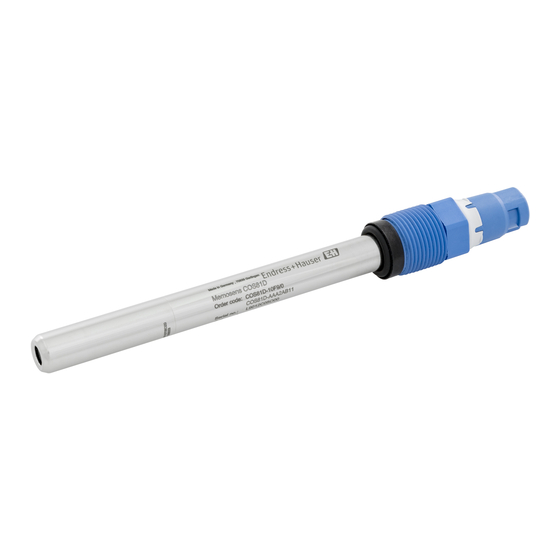

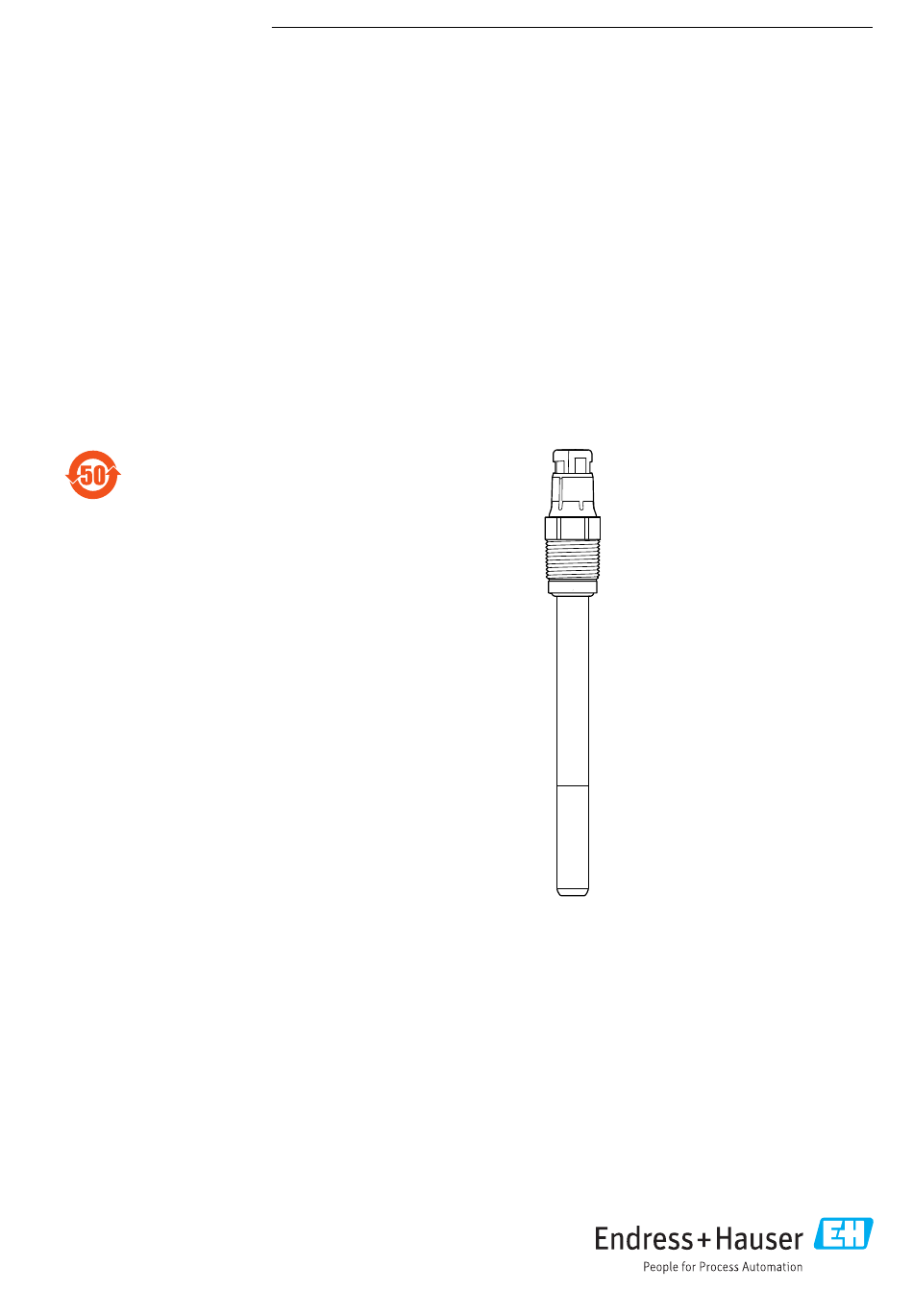

- Page 1 Products Solutions Services BA01448C/07/EN/04.20 71488795 2020-03-02 Operating Instructions Memosens COS81D Hygienic, optical sensor for measuring oxygen...
- Page 2 EU Declaration of Conformity Memosens COS81D EU Declaration of Conformity Endress+Hauser...
-
Page 3: Table Of Contents
Memosens COS81D Table of contents Table of contents 10.2 Maintenance tasks ..... 28 About this document ....4 10.3 Cleaning exterior of sensor . -
Page 4: About This Document
About this document Memosens COS81D About this document Warnings Structure of information Meaning This symbol alerts you to a dangerous situation. DANGER Failure to avoid the dangerous situation will result in a fatal or serious Causes (/consequences) injury. If necessary, Consequences of non-compliance (if applicable) ‣... -
Page 5: Basic Safety Instructions
Memosens COS81D Basic safety instructions Basic safety instructions Requirements for the personnel • Installation, commissioning, operation and maintenance of the measuring system may be carried out only by specially trained technical personnel. • The technical personnel must be authorized by the plant operator to carry out the specified activities. -
Page 6: Operational Safety
Basic safety instructions Memosens COS81D Operational safety Before commissioning the entire measuring point: 1. Verify that all connections are correct. 2. Ensure that electrical cables and hose connections are undamaged. 3. Do not operate damaged products, and protect them against unintentional operation. - Page 7 Memosens COS81D Basic safety instructions Temperature classes ATEX, IECEx, CSA C/ US and NEPSI ATEX II 1G Ex ia IIC T3/T4/T6 Ga Type Medium temperature T for temperature class (T COS81D - BA****13 -10 °C ≤ Ta ≤ 130 °C (T3) -10 °C ≤...
-
Page 8: Device Description, Function
Device description, function Memosens COS81D Device description, function Optical measuring principle Sensor structure Oxygen-sensitive molecules (markers) are integrated into the optically active layer (fluorescence layer). The fluorescence layer, an optical insulating layer and a cover layer are applied on top of one another on the carrier. -
Page 9: Sensor Design
Memosens COS81D Device description, function Sensor design A0027181 1 Memosens COS81D Memosens plug-in head with optics assembly Spot cap Thrust collar Optical waveguide with temperature sensor Sensor shaft Process seal 10.77 x 2.62 mm O-ring sensor shaft Process connection Pg 13.5 The sensor' s spot cap can have either a c-shaped or u-shaped design. -
Page 10: Spot Cap
Device description, function Memosens COS81D Spot cap The oxygen dissolved in the medium is diffused to the fluorescence layer of the spot cap. A suitable flow is not required, as no oxygen is consumed during measurement. However, flow improves the speed at which the measuring system reacts and ensures a more representative measured value compared to a measurement in a static medium. -
Page 11: Incoming Acceptance And Product
Memosens COS81D Incoming acceptance and product identification Incoming acceptance and product identification Incoming acceptance 1. Verify that the packaging is undamaged. Notify the supplier of any damage to the packaging. Keep the damaged packaging until the issue has been resolved. -
Page 12: Scope Of Delivery
5. Click on the product image in the popup window. A new window (Device Viewer) opens. All of the information relating to your device is displayed in this window as well as the product documentation. Manufacturer address Endress+Hauser Conducta GmbH+Co. KG Dieselstraße 24 D-70839 Gerlingen Scope of delivery Scope of delivery of sensor •... - Page 13 Memosens COS81D Incoming acceptance and product identification 4.4.4 Certification body Certification center DEKRA Testing and Certification GmbH Bochum OOO "НАНИО ЦСВЭ" Russian Federation 4.4.5 Material certificates Manufacturer declaration of FDA compatibility All parts (seals) in contact with the medium comply with the relevant regulations of the U.S.
- Page 14 Incoming acceptance and product identification Memosens COS81D 4.4.9 Biological reactivity test Certificate of Compliance for biological reactivity tests as per USP (United States Pharmacopeia) part<87> and part <88> class VI with batch traceability of materials in contact with product (O-rings, spot layer in contact with medium).
-
Page 15: Installation
45° 135° 0° 180° 315° 225° A0042948 3 Installation angle for Memosens COS81D-****C*** (c-shaped spot cap) The sensor can be installed at any installation angle (0 to 360 °). Recommended installation angle COS81D-****U*** (u-shaped) 45° 135° 45° 0° 180°... -
Page 16: Mounting The Sensor
Mounting the sensor 5.2.1 Measuring system A complete measuring system comprises: • a Memosens COS81D oxygen sensor • Measuring cable CYK10 • A transmitter, e.g. Liquiline CM42, Liquiline CM44x/R, Liquiline CM44P, Liquiline Compact CM72/82 • Optional: an assembly, e.g. permanent installation assembly CPA842, flow assembly or... -
Page 17: Installation Examples
Memosens COS81D Installation 5.2.2 Installing at a measuring point Must be installed in a suitable assembly (depending on the application). WARNING Electrical voltage In the event of a fault, non-grounded metallic assemblies may be live and as such are not safe to touch! ‣... - Page 18 6 Flow assembly CYA680 Flow chamber of assembly Installed sensor Memosens COS81D Flow assembly CYA21 for water treatment and processes The compact stainless steel assembly offers space for a 12-mm sensor with a length of 120 mm. The assembly has a low sampling volume and, with the 6-mm connections, it is best suited for residual oxygen measurement in water treatments and boiler feedwater.
- Page 19 Installation position for COS81D-****U*** (with u-shaped spot cap) A0042966 8 Suitable and unsuitable installation positions for Memosens COS81D with u-shaped spot cap and retractable assembly Ascending pipe, best position Horizontal pipe, sensor top down, impermissible due to air cushion or foam bubble forming...
-
Page 20: Post-Installation Check
Installation Memosens COS81D Post-installation check 1. Are the sensor and cable undamaged? 2. Is the orientation correct? 3. Is the sensor installed in an assembly and is not suspended from the cable? 4. Avoid the penetration of moisture by fitting the protection cap on the immersion assembly. -
Page 21: Electrical Connection
Memosens COS81D Electrical connection Electrical connection WARNING Device is live! Incorrect connection may result in injury or death! ‣ The electrical connection may be performed only by an electrical technician. ‣ The electrical technician must have read and understood these Operating Instructions and must follow the instructions contained therein. -
Page 22: Calibration And Adjustment
Calibration and adjustment Memosens COS81D Calibration and adjustment The sensor is calibrated and adjusted in the factory prior to delivery and is therefore ready for immediate use. Calibration or adjustment is required in the following situations: • Changes due to process conditions, e.g. for Cleaning in Place (CIP), Sterilization in Place (SIP) and autoclaving •... -
Page 23: Calibration In Oxygen With 100% Rh
Memosens COS81D Calibration and adjustment 2. If necessary: Adjust the sensor to the zero point. The reference method (sample calibration in zero point) can also be used here if appropriate collecting vessels or reference measurement are available. If the oxygen sensor is calibrated too early, this can result in an incorrect zero point. - Page 24 Calibration and adjustment Memosens COS81D • The saturation value S acc. to Table 1 • The altitude factor K acc. to Table 2 Table 1 [˚C (˚F)] [mg/l=ppm] [˚C (˚F)] [mg/l=ppm] [˚C (˚F)] [mg/l=ppm] [˚C (˚F)] [mg/l=ppm] 0 (32) 14.64 11 (52) 10.99...
- Page 25 Memosens COS81D Calibration and adjustment Example • Air calibration at 18 °C (64 °F), altitude 500 m (1650 ft) above sea level, current air pressure 1009 hPa • S = 9.45 mg/l, K = 0.943, L = 0.996, M=1.00 • Calibration value C = 8.88 mg/l.
-
Page 26: Commissioning
Commissioning Memosens COS81D Commissioning Prior to initial commissioning, ensure that: • The sensor is correctly installed • The electrical connection is correct If using an assembly with automatic cleaning function: ‣ Check that the cleaning medium (water or air, for example) is connected correctly. -
Page 27: Troubleshooting
Memosens COS81D Troubleshooting Troubleshooting ‣ If one of the following problems is present: Check the measuring system in the order shown. Problem Testing Remedial action ‣ Nothing displayed, no Power supplied to the Establish the power supply. reaction from the sensor transmitter? ‣... -
Page 28: Maintenance
Maintenance Memosens COS81D Maintenance Take all the necessary precautions in time to ensure the operational safety and reliability of the entire measuring system. NOTICE Effects on process and process control! ‣ When carrying out any work on the system, bear in mind any potential impact this could have on the process control system and the process itself. -
Page 29: Cleaning Sensor Optics
Memosens COS81D Maintenance For reliable measurement, the sensor must be cleaned at regular intervals. The frequency and intensity of the cleaning operation depend on the medium. Clean the sensor: • Before every calibration • Before returning it for repairs Type of contamination... -
Page 30: Wear Parts And Consumables
Maintenance Memosens COS81D 10.5 Wear parts and consumables Parts of the sensor are subject to wear during operation. By taking suitable measures, you can restore the normal operating function. Corrective action Reason Replace process seals Visible damage to a process seal Replace spot cap , including O-rings •... - Page 31 Memosens COS81D Maintenance Replacing the sealing ring for the shaft sleeve A0043010 Unscrew spot cap and remove. Remove the O-ring above the thread on the shaft. Push the mounting tool from below onto the shaft until it sits over the thread.
- Page 32 Maintenance Memosens COS81D A0043015 Clean the sensor optics carefully using the cloth provided. A0043011 Screw on the spot cap. Replacing the sealing ring towards the process A0043013 Remove the O-ring on the process connection in the direction of the spot cap.
-
Page 33: Checking The Measurement Function
Memosens COS81D Maintenance A0043015 Clean the sensor optics carefully using the cloth provided. A0043011 Screw on the new spot cap. 4. Calibrate sensor.→ 22 10.6 Checking the measurement function 1. Remove the sensor from the medium. 2. Clean and dry the spot cap. -
Page 34: Accessories
Accessories Memosens COS81D Accessories The following are the most important accessories available at the time this documentation was issued. ‣ For accessories not listed here, please contact your Service or Sales Center. 11.1 Assemblies (selection) COS81D with 220 mm length is suitable for all assemblies requiring an installation length of 225 mm. -
Page 35: Measuring Cable
Memosens COS81D Accessories 11.2 Measuring cable Memosens data cable CYK10 • For digital sensors with Memosens technology • Product Configurator on the product page: www.endress.com/cyk10 Technical Information TI00118C Memosens data cable CYK11 • Extension cable for digital sensors with Memosens protocol •... - Page 36 Accessories Memosens COS81D Liquiline Compact CM82 • Configurable 1-channel multiparameter transmitter for Memosens sensors • Ex- and non-ex applications possible in all industries • Product Configurator on the product page: www.endress.com/CM82 Technical Information TI01397C Liquiline Compact CM72 • 1-channel single parameter field device for Memosens sensors •...
-
Page 37: Repair
The product must be returned if repairs or a factory calibration are required, or if the wrong product was ordered or delivered. As an ISO-certified company and also due to legal regulations, Endress+Hauser is obliged to follow certain procedures when handling any returned products that have been in contact with medium. -
Page 38: Technical Data
Technical data Memosens COS81D Technical data 13.1 Input Measured variables Dissolved oxygen [mg/l, µg/l, ppm, ppb or %SAT or hPa] Oxygen (gaseous) [hPa or %Vol] Temperature [˚C, ˚F] Measuring ranges Measuring ranges apply for 25 ˚C (77 ˚F) and 1013 hPa (15 psi) -
Page 39: Process
Memosens COS81D Technical data IP69K (test in accordance with DIN 40050-9) 13.4 Process Process temperature Sensor General Oxygen measurement COS81D-****1* (EPDM) -10 to +140 °C (15 to 280 °F) COS81D-****3* (FFKM) 0 to +140 °C (32 to 280 °F) COS81D-**C*** (c-shaped) 0 to 60 °C (32 to 140 °F) - Page 40 Technical data Memosens COS81D A0034733 13 Design of spot cap u-shaped c-shaped Dimensions 50 (1.97) 120 / 220 / 360 / 420 (4.72 / 8.66 / 14.2 / 16.5)* Pg 13,5 A0034910 14 Dimensions in mm (inch) Flow assembly CYA21 for 28 (1.10)
- Page 41 Memosens COS81D Technical data Seals/O-rings EPDM, FFKM (USP<87>, <88> Class VI and FDA) Spot layer Silicone (USP<87>, <88> Class VI and FDA) Process connection Pg 13.5 Torque max. 3 Nm Surface roughness < 0.38 µm Temperature sensor Pt1000 (Class A according to DIN IEC 60751)
-
Page 42: Appendices
Appendices Memosens COS81D Appendices Endress+Hauser... -
Page 43: Index
Memosens COS81D Index Index Accessories ....... . 34 Hazardous areas ......6 Adjustment . - Page 44 Index Memosens COS81D Safety Electrical equipment in hazardous areas ..6 Occupational safety ......5 Operational .
- Page 48 *71488795* 71488795 www.addresses.endress.com...
