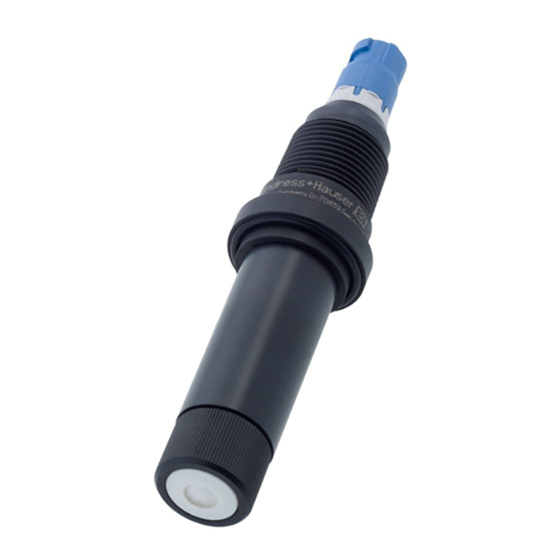

- Page 1 Products Solutions Services BA00419C/07/EN/13.15 71290810 Operating Instructions Chloromax CCS142D Digital sensor with Memosens technology for determining free chlorine...
-
Page 3: Table Of Contents
Chloromax CCS142D Table of contents Table of contents Document information ..4 Storing the sensor ....25 Regenerating the sensor . -
Page 4: Document Information
Document information Chloromax CCS142D Document information Warnings Structure of information Meaning This symbol alerts you to a dangerous situation. DANGER Failure to avoid the dangerous situation will result in a fatal or serious injury. Causes (/consequences) Consequences of non-compliance (if applicable) ‣... -
Page 5: Basic Safety Instructions
Chloromax CCS142D Basic safety instructions Basic safety instructions Requirements for personnel Installation, commissioning, operation and maintenance of the measuring system may be carried out only by specially trained technical personnel. ‣ The technical personnel must be authorized by the plant operator to carry out the specified activities. -
Page 6: Operational Safety
Device description, function Chloromax CCS142D Electromagnetic compatibility • The product has been tested for electromagnetic compatibility in accordance with the applicable European standards for industrial applications. • The electromagnetic compatibility indicated applies only to a product that has been connected in accordance with these Operating Instructions. -
Page 7: Effects On The Measuring Signal
Chloromax CCS142D Device description, function Effects on the measuring signal 3.2.1 pH value pH-dependency Molecular chlorine (Cl ) is present at pH values < 4. Consequently, hypochlorous acid (HOCl) and hypochlorite (OCl– remain within the range of pH 4 to 11 as components of free chlorine. - Page 8 Device description, function Chloromax CCS142D pH compensation of chlorine sensor signal To calibrate and verify the chlorine measuring system, a colorimetric reference measurement must be carried out using the DPD method. Free chlorine reacts with diethyl-p- phenylendiamine to form a red dye. The intensity of the red color increases proportionally to the chlorine content.
-
Page 9: Sensor Design
If the temperature has changed, a recalibration must be performed. The Chloromax CCS142D, when used with the Liquiline, enables automatic temperature compensation (ATC). In this case, the temperature does not need to remain constant, and a recalibration in the event of temperature changes is not required. - Page 10 Device description, function Chloromax CCS142D Memosens plug-in head O-ring Large anode, silver/silver chloride Gold cathode Measuring chamber Membrane cap with dirt-repellent membrane Screw cap for securing the membrane cap A0026479 2 Sensor structure Endress+Hauser...
-
Page 11: Incoming Acceptance And Product Identification
Chloromax CCS142D Incoming acceptance and product identification Incoming acceptance and product identification Incoming acceptance Verify that the packaging is undamaged. Notify your supplier of any damage to the packaging. Keep the damaged packaging until the matter has been settled. -
Page 12: Scope Of Delivery
Incoming acceptance and product identification Chloromax CCS142D In the navigation area on the right-hand side, select "Check your device features" under "Device support". An additional window opens. Enter the order code from the nameplate into the search field. You will receive information on each feature (selected option) of the order code. -
Page 13: Installation
Chloromax CCS142D Installation Installation Installation conditions 5.1.1 Orientation Do not install overhead! ‣ Install the sensor with an angle of inclination of at least 15 °to the horizontal in an assembly, support or suitable process connection. ‣ Other angles of inclination are not permitted. - Page 14 Installation Chloromax CCS142D 5.1.2 Dimensions NPT 3/4" Ø25 (0.98) Ø 31 (1.22) A0007386 3 Dimensions in mm (inch) Endress+Hauser...
-
Page 15: Installing The Sensor
Chloromax CCS142D Installation Installing the sensor 5.2.1 Measuring system A complete measuring system comprises: • Chloromax CCS142D chlorine sensor • Assembly, e.g. Flowfit CCA250 • Measuring cable CYK10 • Transmitter, e.g. Liquiline CM44x or CM44xR • Optional: – Extension cable CYK11 –... -
Page 16: Post-Installation Check
Installation Chloromax CCS142D 5.2.2 Installation in CCA250 flow assembly The Flowfit CCA250 flow assembly is designed for installing the sensor It allows a pH and ORP sensor to be installed, in addition to the chlorine or chlorine dioxide sensor. A needle valve regulates the flow in the range of 30 to 120 l/h (7.9 to 30 gal/h). -
Page 17: Electrical Connection
Chloromax CCS142D Electrical connection Electrical connection WARNING Device is live Incorrect connection may result in injury or death. ‣ The electrical connection may be performed only by an electrical technician. ‣ The electrical technician must have read and understood these Operating Instructions and must follow the instructions contained therein. -
Page 18: Post-Connection Check
Electrical connection Chloromax CCS142D Post-connection check Device condition and specifications Notes Are the outside of the sensor, assembly, junction box, cable Visual inspection undamaged? Electrical connection Notes Are the installed cables strain-relieved and not twisted? Is a sufficient length of the cable cores stripped, and is it positioned... -
Page 19: Commissioning
Chloromax CCS142D Commissioning Commissioning Function check Before first commissioning, check if: • the sensor is correctly installed • the electrical connection is correct. If using an assembly with automatic cleaning, check that the cleaning medium (e.g. water or air) is connected correctly. - Page 20 Commissioning Chloromax CCS142D Prerequisites The sensor reading is stable (no drifts or unsteady values for at least 5 minutes). This is normally guaranteed once the following preconditions have been met: • The polarization period has elapsed. • The flow is constant and within the correct range.
-
Page 21: Diagnostics And Troubleshooting
Chloromax CCS142D Diagnostics and troubleshooting Diagnostics and troubleshooting When troubleshooting, you must take account of the entire measuring system. This comprises: • Transmitter • Electrical connections and lines • Assembly • Sensor The possible causes of error in the following table refer primarily to the sensor. Before commencing troubleshooting, ensure that the following operating conditions have been met: •... - Page 22 Diagnostics and troubleshooting Chloromax CCS142D Error Possible cause Remedy Display value too low Measuring chamber not completely Fully tighten measuring chamber or screw tightened. Membrane soiled Clean membrane Air bubble in front of membrane Release air bubble Air bubble between cathode and...
-
Page 23: Maintenance
Chloromax CCS142D Maintenance Maintenance Take all the necessary precautions in time to ensure the operational safety and reliability of the entire measuring system. NOTICE Effects on process and process control ‣ When carrying out any work on the system, take into account possible repercussions for process control or the process itself. -
Page 24: Replacing The Membrane
Maintenance Chloromax CCS142D Replacing the membrane A0026509 Unscrew the measuring chamber (pos. 1). Unscrew the front screw cap (pos. 3). Remove the membrane cap (pos. 2) and replace it with a CCY14-WP replacement cartridge. Refill the measuring chamber with electrolyte CCY14-F (→ 24). -
Page 25: Storing The Sensor
Chloromax CCS142D Maintenance Refilling the electrolyte Unscrew the measuring chamber from the sensor shaft. Hold the measuring chamber at an angle and pour in approx. 7 to 8 ml (0.24 to 0.27 fl.oz) of electrolyte, up to the internal thread. -
Page 26: Reconditioning The Sensor
Maintenance Chloromax CCS142D Reconditioning the sensor Longterm operation of the sensor (> 3 months) in a chlorine-free medium, i.e. with very low sensor currents, may lead to deactivation of the sensor. This deactivation is a continuous process that results in a lower slope and longer response times. After long-term operation in a chlorine-free medium, the sensor can be reconditioned. - Page 27 Chloromax CCS142D Maintenance The sensor must not touch the liquid. Place the sensor in the gaseous phase approx. 5 to 10 mm (0.2 to 0.4 inch) above the chlorine bleach lye. The sensor current will now increase. The absolute value and the speed of increase depend on the temperature of the chlorine bleach lye.
-
Page 28: Accessories
Accessories Chloromax CCS142D Accessories The following are the most important accessories available at the time this documentation was issued. For accessories not listed here, please contact your service or sales office. 10.1 Connection accessories CYK10 Memosens data cable • For digital sensors with Memosens technology •... -
Page 29: Repairs
The product must be returned if repairs or a factory calibration are required, or if the wrong product was ordered or delivered. As an ISO-certified company and also due to legal regulations, Endress+Hauser is obliged to follow certain procedures when handling any returned products that have been in contact with medium. - Page 30 Technical data Chloromax CCS142D 12.2 Performance characteristics 12.2.1 Reference operating conditions 20 °C (68 °F) pH 7.2 12.2.2 Response time < 2 min in applications involving mainly active chlorination 12.2.3 Measured value resolution CCS142D-A: Approx. 15 μg/l Cl CCS142D-G: Approx. 5 μg/l Cl 12.2.4...
- Page 31 Chloromax CCS142D Technical data 12.2.10 Chlorine intrinsic consumption At average medium concentrations of 1 mg/l Cl and under reference operating conditions CCS142D-A: 25 ng Cl per hour CCS142D-G: 100 ng Cl per hour 12.3 Environment 12.3.1 Ambient temperature –5 to 55 ˚C (20 to 130 ˚F), non-freezing 12.3.2...
-
Page 32: Installation And Operation In Hazardous Environment Class
Installation and operation in hazardous environment Class I Div. 2 Chloromax CCS142D 12.5 Mechanical construction 12.5.1 Dimensions → 14 12.5.2 Weight 0.1 kg (0.2 lbs) 12.5.3 Materials Sensor shaft: Membrane: PTFE Membrane cap: PBT (GF 30), PVDF Cathode: Gold... - Page 33 Chloromax CCS142D Installation and operation in hazardous environment Class I Div. 2 Endress+Hauser...
-
Page 34: Index
Index Chloromax CCS142D Index Flow assembly ....16 Immersion assembly ... . . 16 Accessories ..... 28 Orientation . - Page 35 Chloromax CCS142D Index Return ......29 Safety instructions ....5 Scope of delivery .
- Page 36 *71290810* 71290810 www.addresses.endress.com...
