Equip sensor with adapter
The required adapter can be ordered as a mounted sensor accessory or as a separate
accessory.→  41
1. Slide adapter for Flowfit CCA250 from the sensor head up to the stop on the sensor.


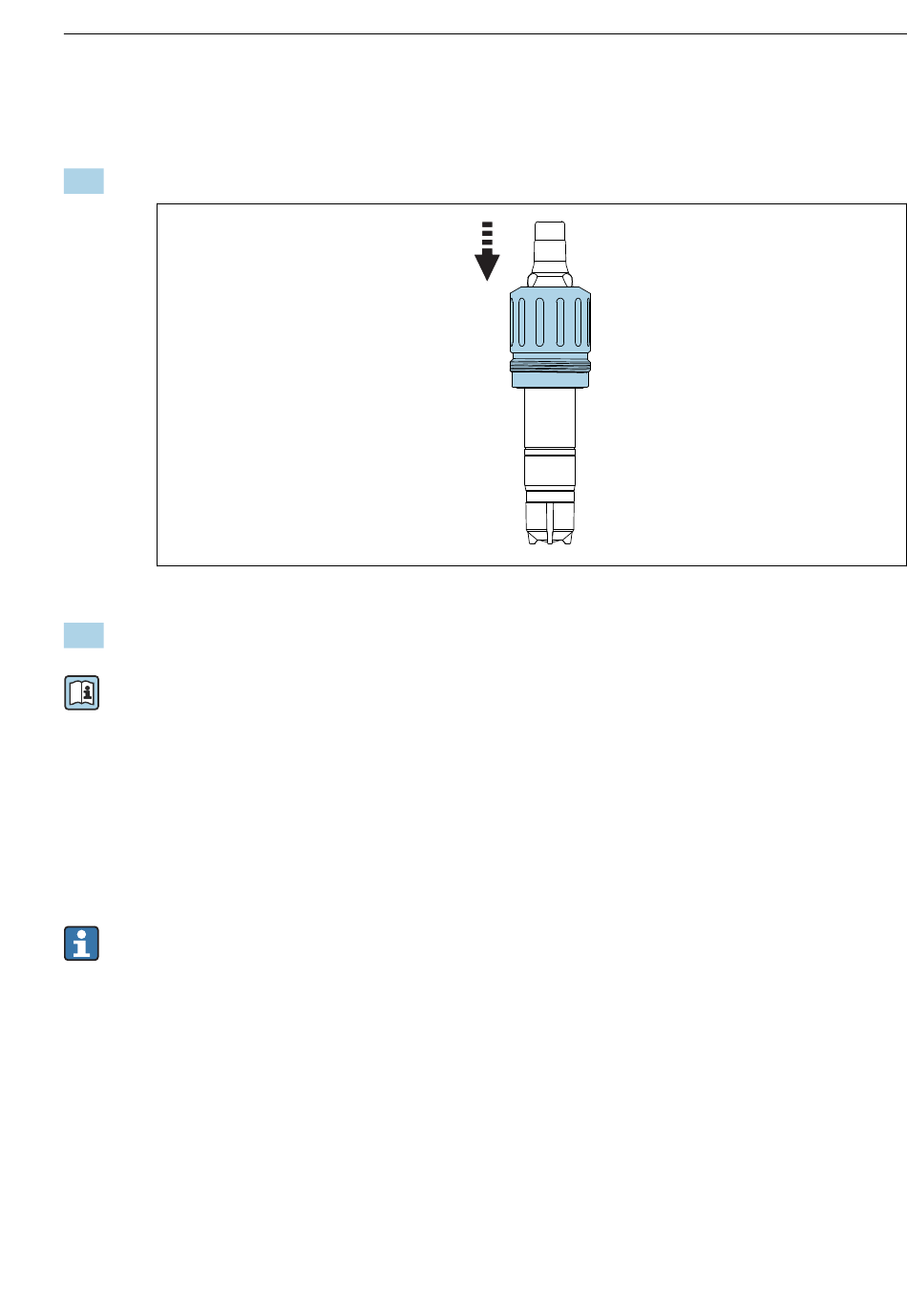

 10 Slide on adapter for Flowfit CCA250.
2. Lock the adapter in place using the two studs provided.
For detailed information on "Installing sensor in Flowfit CCA250 assembly", see
Operating Instructions for assembly
5.2.5 Installing sensor in other flow assemblies
When using other flow assemblies, please ensure the following:
‣
A flow velocity of at least 15 cm/s (0.49 ft/s) must always be ensured at the membrane.
‣
The flow direction is upwards. Transported air bubbles must be removed so that they do
not collect in front of the membrane.
‣
The flow must be directed to the membrane.
Pay attention to the additional installation instructions in the Operating Instructions for
the assembly.
5.2.6 Installing sensor in immersion assembly CYA112
Alternatively, the sensor can be installed in an immersion assembly with G1 threaded
connection, e. g.
