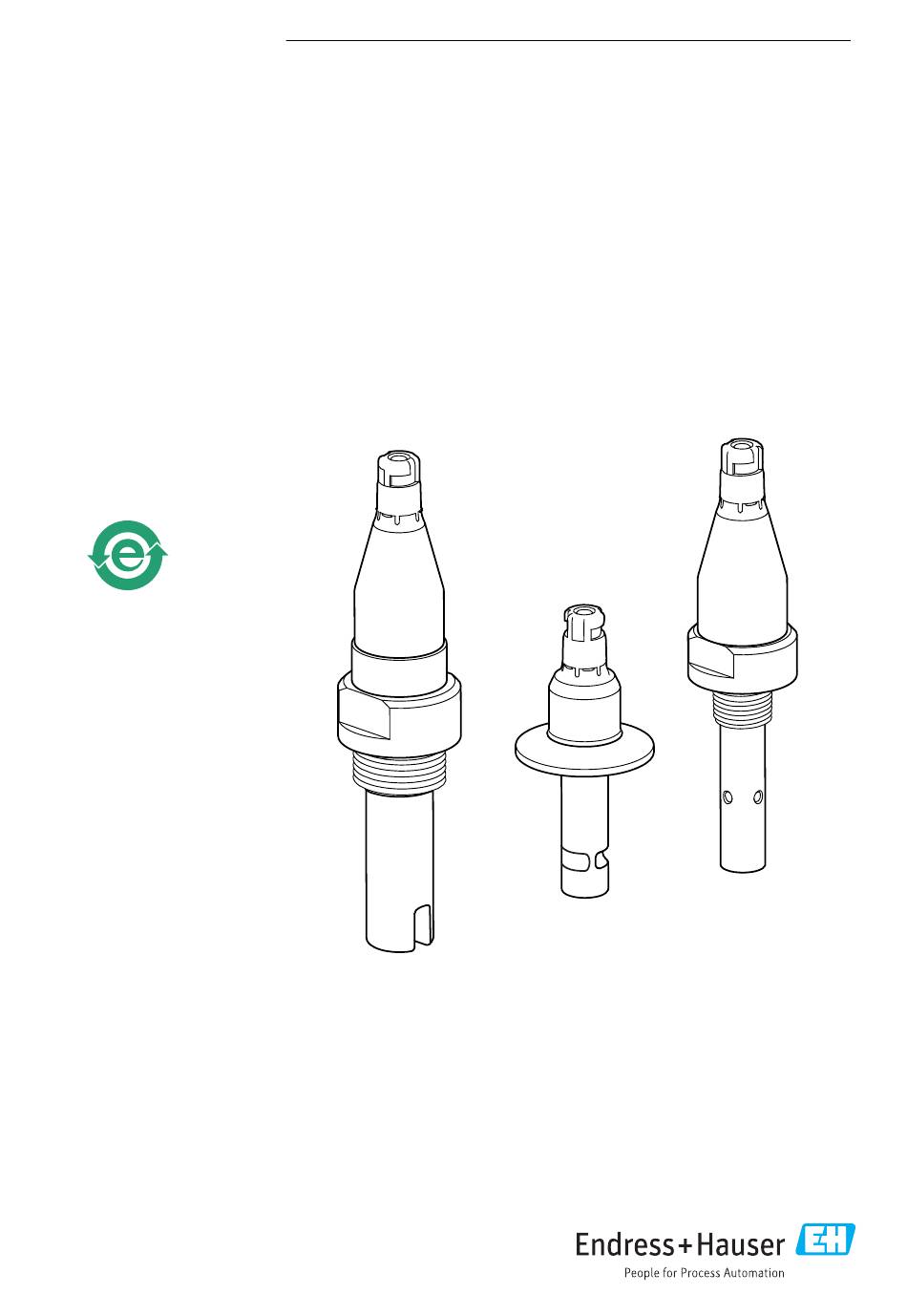

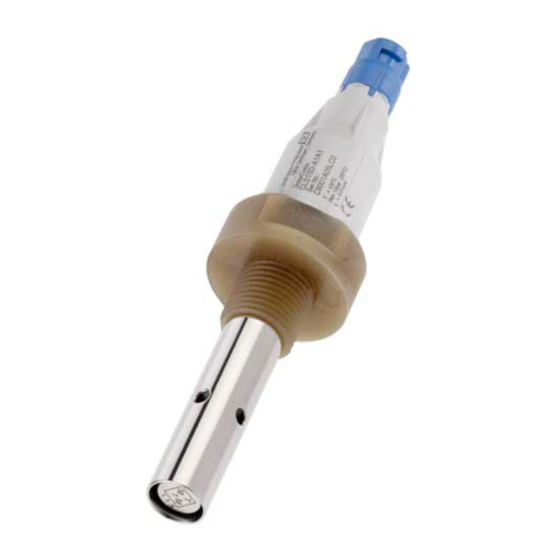

- Page 1 Products Solutions Services BA01147C/07/EN/05.20 71464661 2020-01-31 Operating Instructions Condumax CLS15D/16D/21D Sensors with Memosens protocol For conductive measurement of conductivity in liquids...
- Page 2 EU Declaration of Conformity Condumax CLS15D/16D/21D EU Declaration of Conformity ATEX / NEPSI II 1G Ex ia IIC T3/T4/T6 Ga, IECEx Ex ia IIC T3/T4/T6 Ga Endress+Hauser...
- Page 3 Condumax CLS15D/16D/21D EU Declaration of Conformity ATEX/NEPSI II 3G Ex ic IIC T3/T4/T6 Gc Endress+Hauser...
-
Page 4: Table Of Contents
Table of contents Condumax CLS15D/16D/21D Table of contents About this document ... 5 Warnings ......5 Symbols . -
Page 5: About This Document
Condumax CLS15D/16D/21D About this document About this document Warnings Structure of information Meaning This symbol alerts you to a dangerous situation. DANGER Failure to avoid the dangerous situation will result in a fatal or serious injury. Causes (/consequences) If necessary, Consequences of non- compliance (if applicable) ‣... -
Page 6: Basic Safety Instructions
They are used in the following fields: Sensor Applications Hazardous areas Condumax CLS15D Measurements in pure and ultrapure water Approved for Ex zone 0 Condumax CLS16D Measurements in pure and ultrapure water with hygienic requirements Approved for Ex zone 0... -
Page 7: Operational Safety
Condumax CLS15D/16D/21D Basic safety instructions Operational safety Before commissioning the entire measuring point: Verify that all connections are correct. Ensure that electrical cables and hose connections are undamaged. Do not operate damaged products, and protect them against unintentional operation. Label damaged products as defective. - Page 8 Basic safety instructions Condumax CLS15D/16D/21D Temperature classes Name Type Medium temp. T for temperature class (Tn) Cat. Condumax CLS15D -20 °C ≤ Ta ≤ +135 °C (T3) II 1G -20 °C ≤ Ta ≤ +120 °C (T4) -20 °C ≤ Ta ≤ +70 °C (T6)
-
Page 9: Incoming Acceptance And Product Identification
Condumax CLS15D/16D/21D Incoming acceptance and product identification Name Type Medium temp. T for temperature class (Tn) Cat. Condumax CLS16D -5 °C ≤ Ta ≤ +135 °C (T3) II 3G -5 °C ≤ Ta ≤ +115 °C (T4) -5 °C ≤ Ta ≤ +65 °C (T6) -
Page 10: Product Identification
Incoming acceptance and product identification Condumax CLS15D/16D/21D Product identification 3.2.1 Type code for versions with explosion protection Name Type Version Condumax CLS15D CLS16D CLS21D Process connections, For use in hazardous areas, ATEX/NEPSI II 1G Ex ia IIC materials not Ex-relevant... -
Page 11: Scope Of Delivery
Click on the product image in the popup window. A new window (Device Viewer) opens. All of the information relating to your device is displayed in this window as well as the product documentation. Manufacturer's address Endress+Hauser Conducta GmbH+Co. KG Dieselstraße 24 D-70839 Gerlingen Scope of delivery The scope of delivery includes: •... - Page 12 Incoming acceptance and product identification Condumax CLS15D/16D/21D ATEX/NEPSI II 3G Ex ic IIC T3/T4/T6 Gc for use in Zone 2 with Liquiline M CM42-KV*** transmitter • EAC Ex, 0Ex ia IIC T6/T4/T3 Ga X • Zone 0 • Certificate number: TC RU C-DE.AA87.B.00088 •...
-
Page 13: Installation
Condumax CLS15D/16D/21D Installation Installation Mounting the sensor 4.1.1 CLS15D The sensors are installed directly via the process connection thread NPT ½" or ¾" or clamp 1 ½". As an option, the sensor can also be installed using a commercially available T- piece or cross fitting or using a flow assembly. - Page 14 Installation Condumax CLS15D/16D/21D NPT ½” 38.5 (1.52) Ø 6 (0.24) Ø 29 (1.14) A0019015 A0019014 1 With NPT ½" thread in T-piece or cross 2 With NPT ½" thread in flow assembly fitting 71042405, dimensions in mm (inch) T-piece or cross fitting (DN 32, 40 or 50) Sensor holder NPT ½"...
- Page 15 Condumax CLS15D/16D/21D Installation 4.1.2 CLS16D The sensors are installed directly via the process connection. ‣ When installing in pipes, pay attention to the flow direction. A0019017 A0019016 4 Inadmissible flow direction 3 Permitted flow direction Ensure that the electrodes are fully immersed in the medium during measurement.
- Page 16 Installation Condumax CLS15D/16D/21D The sensors are installed directly via the process connection. As an option, the sensor can also be installed via a flow assembly. NOTICE Incorrect mounting or disassembly The Memosens head could become loose and fall off, resulting in total sensor failure! ‣...
-
Page 17: Post-Installation Check
Condumax CLS15D/16D/21D Electrical connection The Dipfit CLA111 immersion assembly is available for installing sensors with G1 thread in vessels. A0024145 7 Installation in Dipfit CLA111 immersion assembly, fastening versions A, B and D Ensure that the electrodes are fully immersed in the medium during measurement. -
Page 18: Quick Wiring Guide
Electrical connection Condumax CLS15D/16D/21D Quick wiring guide 5.1.1 Sensors for zone 0 CYK10 CYK10 Ex ia Ga Ex ia Ga CPS41D CPS341D CPS11D CPS42D CPS12D CPS71D CPS72D CPS91D CPS92D CLS16D CPS16D CLS15D CPS76D COS22D CLS21D CLS82D CPS96D CPS471D CPS171D CPS491D CPS441D... - Page 19 Condumax CLS15D/16D/21D Electrical connection 5.1.2 Sensors for zone 2 CYK10 CYK10 Ex ic Ex ic CPS41D CPS341D CPS11D CPS42D CPS12D CPS71D CPS72D CPS91D CPS92D CLS16D CPS16D CLS15D CPS76D COS22D CLS21D CLS82D CPS96D CPS471D CPS171D CPS491D CPS441D COS51D CLS50D A0031184 9...
-
Page 20: Connecting The Sensor
Electrical connection Condumax CLS15D/16D/21D Connecting the sensor The electrical connection simulator to the transmitter is established using measuring cable CYK10. Com B Com A – A0024019 10 Measuring cable CYK10 NOTICE Mechanical twist protection for CLS15D and CLS21D If too much force is applied to the Memosens head, this can shear the connections and therefore destroy the sensor! ‣... -
Page 21: Commissioning
Condumax CLS15D/16D/21D Commissioning Device condition and specifications Action Are all cable entries mounted, tightened and leak-tight? In the case of lateral cable entries: ‣ Point cable loops downward so that water can Are all cable entries installed downwards or mounted laterally? drip off. -
Page 22: Repair
Repair Condumax CLS15D/16D/21D WARNING Thiocarbamide Harmful if swallowed! Limited evidence of carcinogenicity! Possible risk of harm to the unborn child! Dangerous for the environment with long-term effects! ‣ Wear protective goggles, protective gloves and appropriate protective clothing. ‣ Avoid all contact with the eyes, mouth and skin. -
Page 23: Return
The product must be returned if repairs or a factory calibration are required, or if the wrong product was ordered or delivered. As an ISO-certified company and also due to legal regulations, Endress+Hauser is obliged to follow certain procedures when handling any returned products that have been in contact with medium. -
Page 24: Technical Data
Technical data Condumax CLS15D/16D/21D Technical data Input 9.1.1 Measured variables • Conductivity • Temperature 9.1.2 Measuring ranges Conductivity (in relation to water at 25 °C (77 °F)) CLS15D -A 0.04 to 20 μS/cm CLS15D -B/L 0.10 to 200 μS/cm CLS16D 0.04 to 500 μS/cm... -
Page 25: Performance Characteristics
Condumax CLS15D/16D/21D Technical data Performance characteristics 9.2.1 Uncertainty of measurement CLS15D Each individual sensor is factory-measured in a solution of approx. 5 μS/cm for cell constant 0.01 cm or approx. 50 μS/cm for cell constant 0.1 cm using a reference measuring system traceable to NIST or PTB. -
Page 26: Environment
Technical data Condumax CLS15D/16D/21D Environment 9.3.1 Ambient temperature –20 to 60 °C (–4 to 140 °F) 9.3.2 Storage temperature -25 to +80 °C (-10 to +180 °F) 9.3.3 Degree of protection IP 68 / NEMA type 6P (1 m water column, 25 °C, 24 h) Process 9.4.1... - Page 27 Condumax CLS15D/16D/21D Technical data 9.4.3 Temperature/pressure ratings CLS15D p (abs.) [psi] [bar] [°C] –20 40 60 80 100 120 140 248 284 [° ] F 180 220 260 A0031428-EN 11 Mechanical pressure-temperature resistance Can be sterilized for a short time (1 hour) CLS16D p (abs.)
-
Page 28: Mechanical Construction
Technical data Condumax CLS15D/16D/21D CLS21D p (abs.) [psi] [bar] [°C] [°F] 140 180 220 A0031435-EN 13 Mechanical pressure-temperature resistance Mechanical construction 9.5.1 Weight CLS15D and CLS21D Approx. 0.3 kg (0.66 lbs) depending on version CLS16D Approx. 0.13 to 0.75 kg (0.29 to 1.65 lbs) depending on version 9.5.2... - Page 29 Condumax CLS15D/16D/21D Technical data CLS21D Electrodes Graphite Sensor shaft Polyethersulfone (PES-GF20) Thermal conductivity socket for Titanium 3.7035 temperature probe Clamp process connection • Process connection • Stainless steel 1.4435 • Seal • EPDM 9.5.3 Process connection CLS15D Thread NPT ½" and ¾"...
- Page 32 *71464661* 71464661 www.addresses.endress.com...
