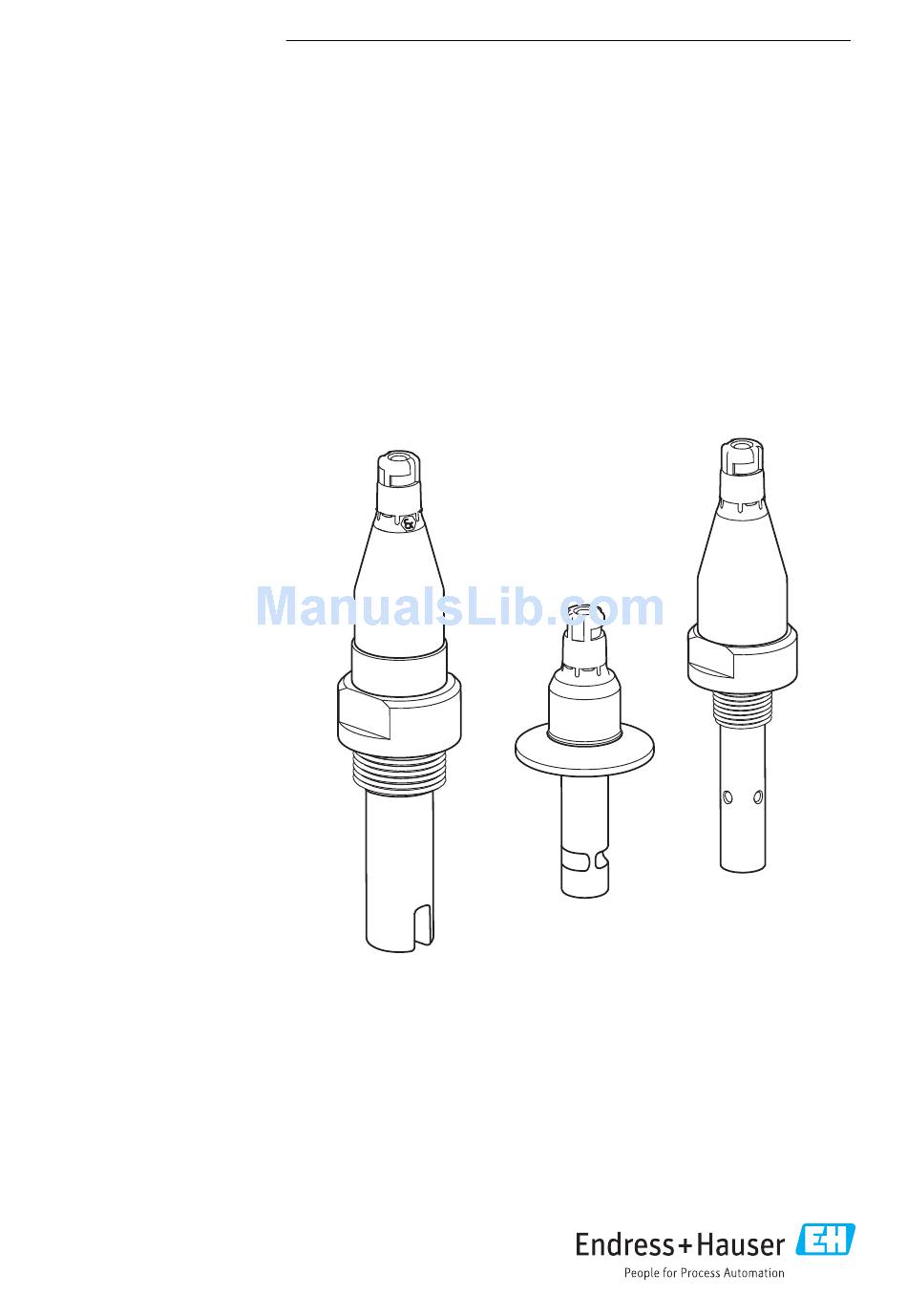

Page 1: Operating Instructions

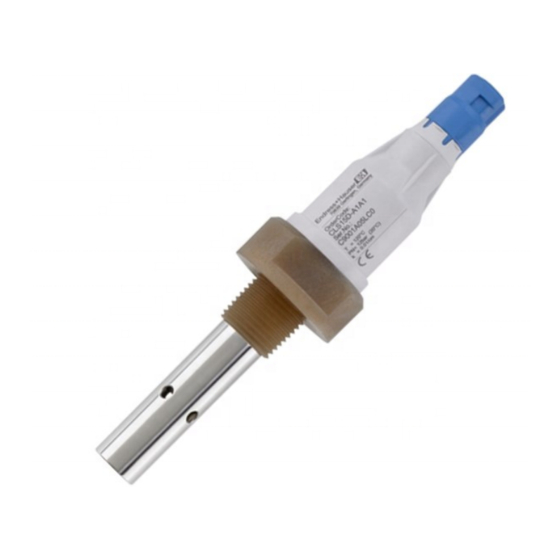

Products Solutions Services BA01147C/07/EN/03.16 71333350 Operating Instructions Condumax CLS15D/16D/21D Sensors with Memosens protocol For conductive measurement of conductivity in liquids... -
Page 3: Table Of Contents
10.2 ATEX/NEPSI II 3G Ex ic IIC T3/T4/T6 Gc ....... . 30 Endress+Hauser... -
Page 4: Document Information
Document information Condumax CLS15D/16D/21D Document information Warnings Structure of information Meaning This symbol alerts you to a dangerous situation. DANGER Failure to avoid the dangerous situation will result in a fatal or serious injury. Causes (/consequences) Consequences of non-compliance (if applicable) ‣... -
Page 5: Basic Safety Instructions
They are used in the following fields: Sensor Applications Hazardous areas Condumax CLS15D Measurements in pure and ultrapure water Approved for Ex zone 0 Condumax CLS16D Measurements in pure and ultrapure water with hygienic requirements Approved for Ex zone 0... -
Page 6: Operational Safety
10 nS/cm. • The CLS15D-type sensors with non-metal process connections may not be operated under process conditions in which electrostatic charging of the sensor, and particularly of the electrically insulated outer electrode, is likely to occur. - Page 7 Zone 2. The corresponding EU declaration of conformity is part of this document. • The certified conductivity sensors CLS15D / CLS16D / CLS21D may only be connected via the measuring cable CYK10-V*** to the certified intrinsically safe digital sensor output circuits of measuring device Liquiline M CM42-KV*********.
- Page 8 Basic safety instructions Condumax CLS15D/16D/21D Name Type Medium temp. T for temperature class (Tn) Cat. Condumax CLS16D -5 °C ≤ Ta ≤ +135 °C (T3) II 3G -5 °C ≤ Ta ≤ +115 °C (T4) -5 °C ≤ Ta ≤ +65 °C (T6)
-
Page 9: Incoming Acceptance And Product Identification
Condumax CLS15D/16D/21D Incoming acceptance and product identification Incoming acceptance and product identification Incoming acceptance Verify that the packaging is undamaged. Notify your supplier of any damage to the packaging. Keep the damaged packaging until the matter has been settled. -
Page 10: Scope Of Delivery
Enter the order code from the nameplate into the search field, and then select "Show details". You will receive information on each feature (selected option) of the order code. Manufacturer's address Endress+Hauser Conducta GmbH+Co. KG Dieselstraße 24 D-70839 Gerlingen Scope of delivery The scope of delivery includes: •... -
Page 11: Certificates And Approvals
Condumax CLS15D/16D/21D Incoming acceptance and product identification Certificates and approvals 3.4.1 mark Declaration of conformity The product meets the requirements of the harmonized European standards. As such, it complies with the legal specifications of the EU directives. The manufacturer confirms successful testing of the product by affixing to it the ... -
Page 12: Installation
Installation Condumax CLS15D/16D/21D Installation Mounting the sensor 4.1.1 CLS15D The sensors are installed directly via the process connection thread NPT ½" or ¾" or clamp 1 ½". As an option, the sensor can also be installed using a commercially available T- piece or cross fitting or using a flow assembly. - Page 13 Condumax CLS15D/16D/21D Installation NPT ½” 38.5 (1.52) Ø 6 (0.24) Ø 29 (1.14) A0019015 A0019014 1 With NPT ½" thread in T-piece or cross 2 With NPT ½" thread in flow assembly fitting 71042405, dimensions in mm (inch) T-piece or cross fitting (DN 32, 40 or 50) Sensor holder NPT ½"...
- Page 14 Installation Condumax CLS15D/16D/21D 4.1.2 CLS16D The sensors are installed directly via the process connection. Take the flow direction into consideration when installing in pipes. A0019017 A0019016 4 Inadmissible flow direction 3 Permitted flow direction Ensure that the electrodes are fully immersed in the medium during measurement. If the sensor is being used in the ultrapure water range, you must work under air-evacuated conditions.
- Page 15 Condumax CLS15D/16D/21D Installation The sensors are installed directly via the process connection. As an option, the sensor can also be installed via a flow assembly. NOTICE Incorrect mounting or disassembly The Memosens head could become loose and fall off, resulting in total sensor failure ‣...
-
Page 16: Post-Installation Check
Electrical connection Condumax CLS15D/16D/21D The Dipfit CLA111 immersion assembly is available to install sensors with a G1 thread in vessels. A0024145 7 Installation in Dipfit CLA111 immersion assembly, fastening versions A, B and D Ensure that the electrodes are fully immersed in the medium during measurement. -
Page 17: Connection Conditions
Condumax CLS15D/16D/21D Electrical connection Connection conditions 5.1.1 Connection at a glance Sensors for zone 0 CYK10 CYK10 Ex ia Ga Ex ia Ga CPS41D CPS341D CPS11D CPS42D CPS12D CPS71D CPS72D CPS91D CPS92D CLS16D CPS16D CLS15D CPS76D COS22D CLS21D CLS82D CPS96D... - Page 18 Electrical connection Condumax CLS15D/16D/21D Sensors for zone 2 CYK10 CYK10 Ex ic Ex ic CPS41D CPS341D CPS11D CPS42D CPS12D CPS71D CPS72D CPS91D CPS92D CLS16D CPS16D CLS15D CPS76D COS22D CLS21D CLS82D CPS96D CPS471D CPS171D CPS491D CPS441D COS51D CLS50D A0031184 9...
-
Page 19: Connecting The Sensor
A0024019 10 Measuring cable CYK10 NOTICE Mechanical twist protection for CLS15D and CLS21D If too much force is applied to the Memosens head, this can shear the connections and therefore destroy the sensor ‣ There is no need to exert excessive force when connecting the sensor to the cable coupling. -
Page 20: Commissioning
Commissioning Condumax CLS15D/16D/21D Device condition and specifications Notes Are all cable entries mounted, tightened and leak-tight? For lateral cable entries, make sure the cables loop downwards to allow water to drip off Are all cable entries installed downwards or mounted laterally? -
Page 21: Repair
Condumax CLS15D/16D/21D Repair WARNING Thiocarbamide Harmful if swallowed. Limited evidence of carcinogenicity. Possible risk of harm to the unborn child. Dangerous for the environment with long-term effects. ‣ Wear protective goggles, protective gloves and appropriate protective clothing. ‣ Avoid all contact with the eyes, mouth and skin. -
Page 22: Return
The product must be returned if repairs or a factory calibration are required, or if the wrong product was ordered or delivered. As an ISO-certified company and also due to legal regulations, Endress+Hauser is obliged to follow certain procedures when handling any returned products that have been in contact with medium. -
Page 23: Technical Data
Condumax CLS15D/16D/21D Technical data Technical data Input 9.1.1 Measured values • Conductivity • Temperature 9.1.2 Measuring ranges Conductivity (in relation to water at 25 °C (77 °F)) CLS15D-A 0.04 to 20 μS/cm CLS15D-B/L 0.10 to 200 μS/cm CLS16D 0.04 to 500 μS/cm CLS21D 10 μS/cm to 20 mS/cm... - Page 24 Technical data Condumax CLS15D/16D/21D Performance characteristics 9.2.1 Uncertainty of measurement CLS15D Each individual sensor is factory-measured in a solution of approx. 5 μS/cm for cell constant 0.01 cm or approx. 50 μS/cm for cell constant 0.1 cm using a reference measuring system traceable to NIST or PTB.
- Page 25 Condumax CLS15D/16D/21D Technical data Environment 9.3.1 Ambient temperature range -20 to +60 °C (-4 to 140 °F) 9.3.2 Storage temperature -25 to +80 °C (-10 to +180 °F) 9.3.3 Degree of protection IP 68 / NEMA type 6P (1 m water column, 25 °C, 24 h) Process 9.4.1...
- Page 26 Technical data Condumax CLS15D/16D/21D 9.4.3 Temperature/pressure ratings CLS15D p (abs.) [psi] [bar] [°C] –20 40 60 80 100 120 140 248 284 [° ] F 180 220 260 A0031428-EN 11 Mechanical pressure-temperature resistance Can be sterilized for a short time (1 hour) CLS16D p (abs.)
- Page 27 140 180 220 A0031435-EN 13 Mechanical pressure-temperature resistance Mechanical construction 9.5.1 Weight CLS15D and CLS21D Approx. 0.3 kg (0.66 lbs) depending on version CLS16D Approx. 0.13 to 0.75 kg (0.29 to 1.65 lbs) depending on version 9.5.2 Materials CLS15D Electrodes Polished, stainless steel 1.4435 (AISI 316L)
- Page 28 CLS21D Thread G1 NPT 1" thread Clamp 2" as per ISO 2852 Sanitary connection DN 25 as per DIN 11851 9.5.4 Surface roughness (CLS15D, CLS16D only) CLS15D ≤ 0.8 μm CLS16D ≤ 0.8 μm, electropolished ≤ 0.38 μm, electropolished, optional...
-
Page 29: Eu Declaration Of
Condumax CLS15D/16D/21D EU Declaration of conformity EU Declaration of conformity 10.1 ATEX / NEPSI II 1G Ex ia IIC T3/T4/T6 Ga, IECEx Ex ia IIC T3/T4/T6 Ga Endress+Hauser... -
Page 30: Atex/Nepsi Ii 3G Ex Ic Iic
EU Declaration of conformity Condumax CLS15D/16D/21D 10.2 ATEX/NEPSI II 3G Ex ic IIC T3/T4/T6 Gc Endress+Hauser... - Page 32 *71333350* 71333350 www.addresses.endress.com...
