Installation
Equip sensor with adapter
The required adapter can be ordered as a mounted sensor accessory or as a separate
accessory.→ 41
1.
Slide adapter for Flexdip CYA112 from the sensor head up to the stop on the sensor.
11

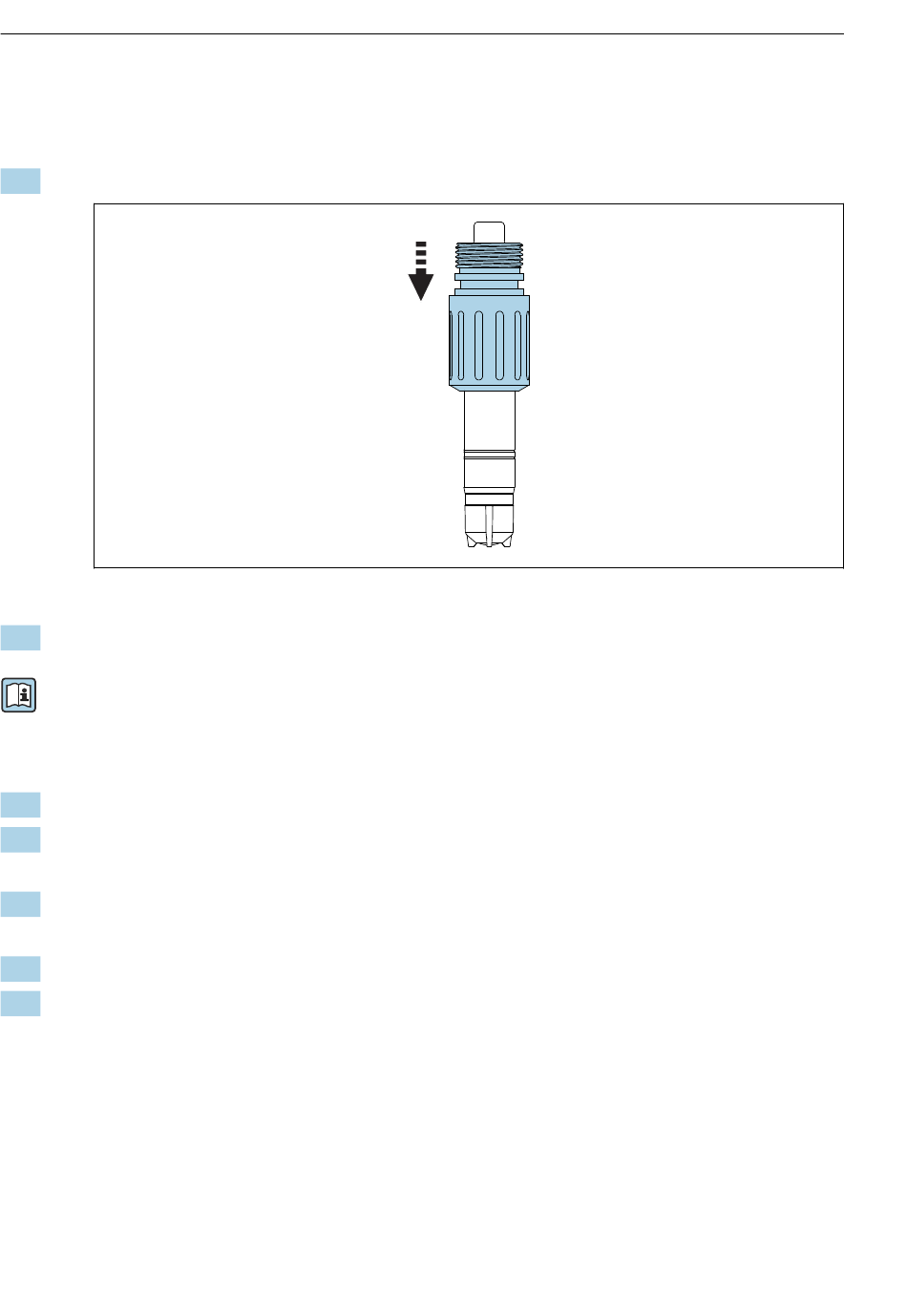

Slide on adapter for Flexdip CYA112.
2.
Lock the adapter in place using the two studs provided.
For detailed information on "Installing sensor in Flexdip CYA112 assembly", see
Operating Instructions for assembly
5.3
Post-installation check
1.
Is the adapter locked in place and unable to move freely?
2.
Is the sensor installed in an assembly and not freely suspended from the cable?
Install the sensor in an assembly or directly via the process connection.
3.
Is the membrane cap sealed?
Replace if necessary.
4.
Is the membrane intact and lying flat: Is the membrane bulging slightly (not flat)?
5.
Is there electrolyte in the membrane cap?
If necessary, refill the membrane cap with electrolyte.
24
CCS50D
A0034246
Endress+Hauser
