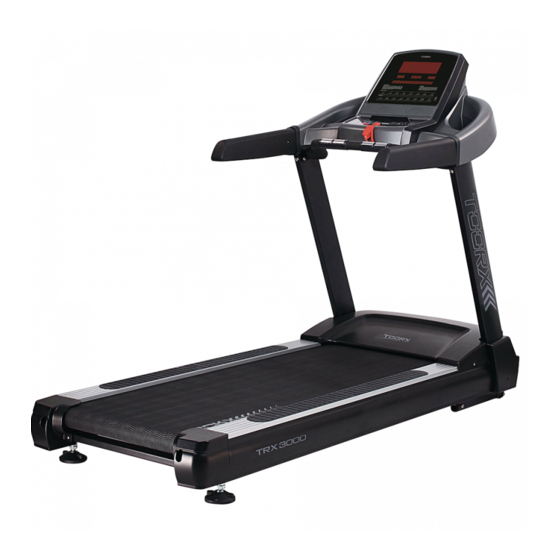

TOORX CHRONO PRO TRX 3000 Instruction
  1. Manuals
  2. Brands
  3. TOORX Manuals
  4. Treadmill
  5. CHRONO PRO TRX 3000
  6. Instruction

TOORX CHRONO PRO TRX 3000 Instruction

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION
APP READY 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHRONO PRO TRX 3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TOORX CHRONO PRO TRX 3000

Summary of Contents for TOORX CHRONO PRO TRX 3000

  • Page 1 INSTRUCTION APP READY 2.0...

  • Page 2: Product Overview

    The main technical parameters Input supply voltage：240V Working temperature: 0-40 ℃ Speed range: 0.8-22.0 KH/M Incline range:15 level Motor incline Distance display range: 0.00-99.9km Max. user weight: 180kg Calories display range: 000-999 Time display range: 00：00-99：59 (min : sec) Heart rate range: 50-200 (time / min) Running surface:560*1540mm Product size: 2095*810*1450 mm Product Overview...
  • Page 3 WHEN YOU OPEN THE CARTON, YOU WILL FIND THE BELOW SPARE PARTS: Step 1: Main frame 1set B50L/ R Left/ Right PU A3L/R Left Right C13 Safety Key 1set handle bar Upright Console set 1 set C19 MP3 line 1 pc C15 Cable core 1 pc D21 Flat Washer M10 14 pcs...
  • Page 4 Step 2: Lock the left and right upright (A3L / R) on the main frame (A1) with the hexagonal screw M10X55 (D11) and the plane washer M10 (D21) in the round head. Do not lock the screws first. Lock the electronic meter in the fourth step and then lock the screws. Then connect the lower line (C17) and the middle line (C18).
  • Page 5 Step 4: Connect the cables (C16) of console and cable (C18) of right upright then tighten console with Left /Right upright (A3L/R), then secure Right/ Left upright (A3L/R) and Cross bar (A4A) with Round hex bolt M10*20 (D105) and Flat Washer M10 (D21). Secure all screws on uprights.

  • Page 6: Window Display

    1.1 WINDOW DISPLAY 1.2. START Normal start after 5 seconds countdown 1.3 PROGRAM 3 countdown mode, 16 re-set programs, 3 Users, and 3 HRC programs 1.4 SAFETY LOCK FUNCTION The window shows"---" when take away the safety lock and the treadmill will stop quickly with "didi"alarm noise. And put the safety lock on, the computer will display for 2 seconds and the date count down to “0”...

  • Page 7: Display Function

    1.5.6 “INCLINE+/-” BUTTON INCLINE +/ –, Adjust incline when treadmill start; the increment is 1 level/time. Press the button more than 2 seconds, and it will be up or down automatically 1.5.7 INCLINE QUICK BUTTON Press the incline quick button 3，6，9，12 to adjust the incline directly when the treadmill is running 1.6 DISPLAY FUNCTION 1.6.1 SPEED Display running speed...
  • Page 8 MODE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE 1.9 Manual model operation 1.9.1 Press start key, time count down 5 seconds, then treadmill will start to work with initial speed1km/h 1.9.2 Press speed +/-, you can adjust the speed 1.9.3 Press incline+/-, you can adjust the incline 1.9.4 Press stop, you can stop treadmill at working state...
  • Page 9 Countdown time initial setting 30：00 minutes，setting range 5：00---99：00 minutes , each step 1：00. Countdown calorie initial setting 50therm, setting range 10---990 term，each step 10. Countdown distance initial setting 1.0km，setting range 0.5---99.9 km，each step 0.1 Cycle switch order is: manual, time, distance, calories. 1.11 BODY TESTER （...
  • Page 10 There are 3 HRC programs (HRC1-HRC3) in total. The parameter data setting order is “AGE” -> “THE(HRC) data” -> “TIME”. HRC: Detect user’s actual heart rate through wireless receiver and set different the heart rate data as goal to adjust speed and incline during running. It’s recommended that user uses the wireless chest belt while running HRC function.
  • Page 11 (1) If Target heart rate <THR-15,then the speed and incline will adjust automatically every 15 second, the SPEED will increase 0.8KM/h and incline add 1 section until they reach the max. data. (2) If THR-5>Target heart rate >=THR-15,then the speed and incline will adjust automatically every 15 second, the SPEED will increase 0.4KM/h and incline add 1 section until they reach the max.

  • Page 13: Parts List

    Parts list A. Welding parts Description Description Base frame Filter bracket Left upright Belt guide Right upright Speaker network Handrail bracket Handrail tube Cross bar Shaft Incline frame Side rail bracket B. Plastic parts Description Description Console set New cushion B1-1 Overlay Non-slip sticker...
  • Page 14 Motor belt Inverter Power switch Pulse Incline motor Single line (brown) 150 Safety key Single branch (blue) 150 Power cable Single ground wire Console upper wire Outlet Console lower wire Chest Belt Middle cable Pulse upper line MP3 line Pulse bottom line Magnetic ring D.
  • Page 15 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
