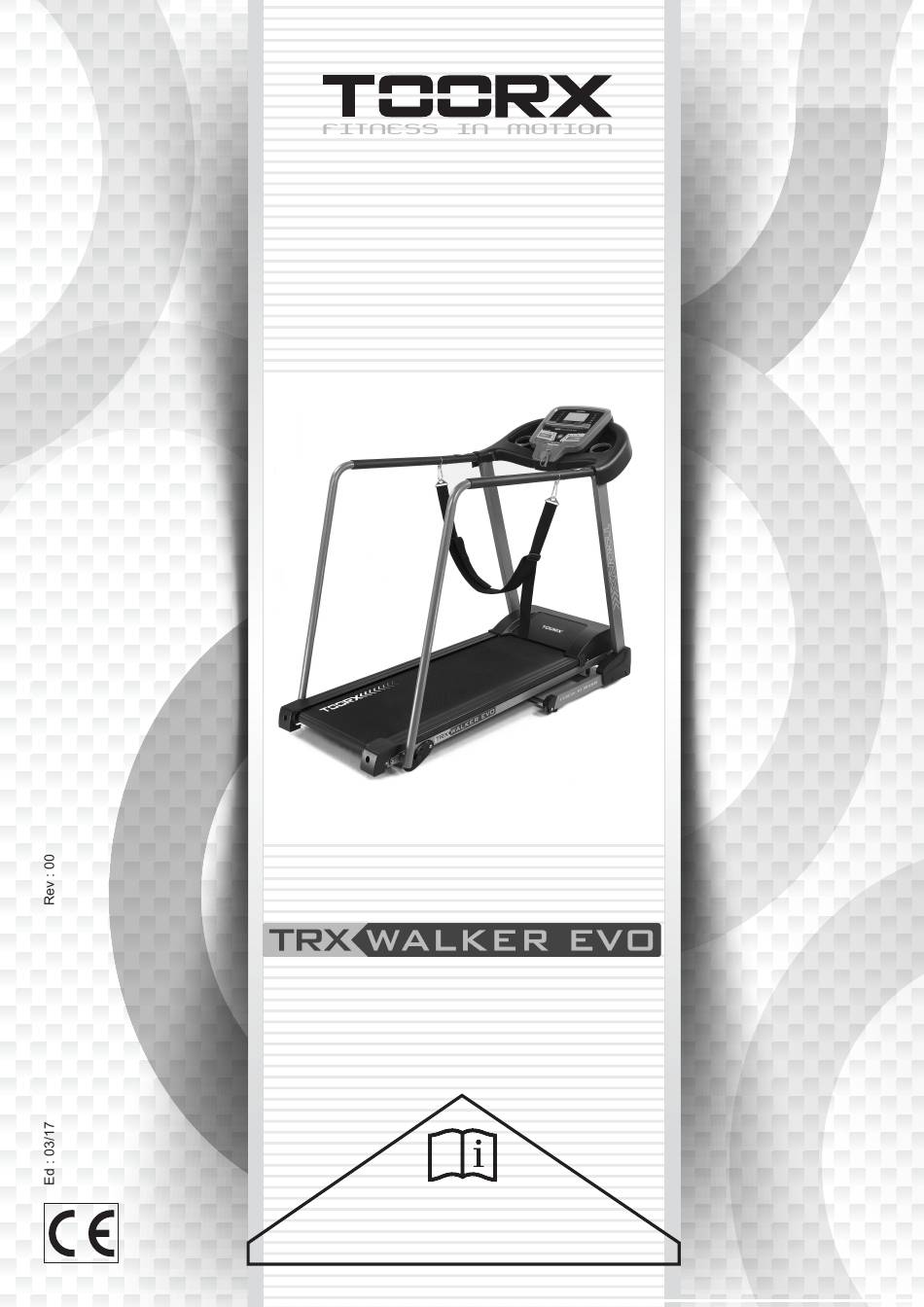

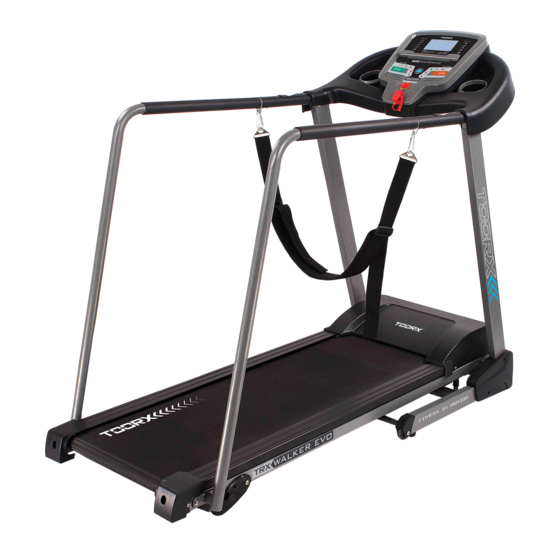

- Page 1 INSTRUCTION...
-
Page 2: Table Of Contents
CONTENT ----------------------------------------------------------------------------------------------------------------------------1 IMPORTANT SAFETY PRECAUTIONS ----------------------------------------------------------------------------------2 ASSEMBLY INSTRUCTIONS ------------------------------------------------------------------------------------------------4 FOLDING & UNFOLDING INSTRUCTIONS --------------------------------------------------------------------------7 INCLINE INSTRUCTIONS ---------------------------------------------------------------------------------------------------8 GROUNDING METHODS -----------------------------------------------------------------------------------------------------9 OPERATION GUIDE ----------------------------------------------------------------------------------------------------------10 GETTING STARTED GUIDE ------------------------------------------------------------------------------------------------15 SAFETY EXERCISES ----------------------------------------------------------------------------------------------------------16 WARM-UP EXERCISES -------------------------------------------------------------------------------------------------------17 MAINTENANCE INSTRUCTIONS ---------------------------------------------------------------------------------------18 BELT ADJUSTMENT ----------------------------------------------------------------------------------------------------------19 EXPLODED DRAWING ------------------------------------------------------------------------------------------------------20 PARTS LIST ----------------------------------------------------------------------------------------------------------------------21... - Page 3 The main technical parameters Working temperature: 0-40 ℃ Input supply voltage：220V Speed range: 0.4-8KM/ H Incline range:15 level Motor incline Max. user weight: 100kg Distance display range: 0.00-99.9km Calories display range: 000-999 Time display range: 00： 00-99： 59 (min : sec) Heart rate range: 50-200 (time / min) Running surface: 420X1250mm Product size: 1630*710*1310mm...
-
Page 4: Assembly Instructions
WHEN YOU OPEN THE CARTON, YOU WILL FIND THE BELOW SPARE PARTS: Main frame 1 set D17 Washer M8 8pcs Round bolt C13 Safety key 1pc M8*15 4pcs D3 Allen wrench 5mm B18 Silicon oil 1 pc D1 Screw driver 1 pc D16 Round head hex bolt M8*45 4 pcs B11L Left side cover 1... - Page 5 STEP 1：According to the following steps to lift up the computer bracket. Be careful not press the line when folding. STEP 2：Secure bottom frame with Round head hex bolt M8*45 (D16), Round head hex bolt M8*15(D13）, and the Inner washer M8 (D17). Then secure console frame with Round head hex bolt M8*15(D13）and Inner washer M8 (D17).
- Page 6 STEP 3：Lock the L/R Side cover (B11l/R) with Cross self-tapping bolt ST4.2*19 B11R B11L STEP 4: Take off the Put Belt safety hook (A29) into Left / Right Handrail Handrail plug (B4). (A30/A31). Install the Left / Right Handrail (A30/A31) to Handrail bracket (A4) with Cross bolt M6*16 (D81).
- Page 7 STEP 5: Lock the Safety buckle (A32) with safety hook (A29) and hang up the Belt (B84). Then put on the safety key (C13) Step 6: To check if the running belt runs correctly, placing treadmill in folding position and tightening all the bolts.
-
Page 8: Grounding Methods
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 9: Operation Guide
1.1. WINDOW DISPLAY 1.2 START Normal start after 5 seconds countdown 1.3 PROGRAM 3 countdown function, 12 pre-set programs, 1 body fat program 1.4 SAFETY LOCK FUNCTION The window shows"---" when take away the safety lock and the treadmill will stop quickly with "didi" alarm noise. - Page 10 When the treadmill is not running, press this button to choose countdown modes:”H-1”,”H-2”,”H-3”. H-1” is the time countdown mode, and “H-2” is the distance countdown mode, “H-3” is the calorie countdown mode; press the “SPEED+/-” button to adjust the data. After that, press the “START”...
- Page 11 1.7 PULSE FUNCTION When the treadmill is running, hold the hand pulse about 5 seconds, it will display pulse data. The pulse data range is 50-200 times/ minute. It has heart-shaped graphics when testing pulse. This data is only for reference, can not be as medical data. 1.8 PROGRAM EXERCISE CHART TIME INTERVAL SET TIME / 10 = EVERY GRADE TIME...
- Page 12 1.11 BODY TESTER（FAT） At the beginning state, press “ PROGRAM” continually to enter “FAT“ body fat test，window display “FAT”. Press “MODE” to enter (F1 SEX, F2 AGE, F3 HEIGHT, F4 WEIGHT). Press “SPEED+”, “SPEED-” to set. After setting, the computer will display F5 and grasp the hand pulse, the window will display your body quality index.
-
Page 13: Maintenance Instructions
WARNING：Please make sure pull out the treadmill's power plug before cleaning or maintaining the product. CLEANSING：General cleaning or the unit will greatly prolong the treadmill's life. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails. -
Page 14: Belt Adjustment
Place treadmill on a level surface. Make treadmill run at approximately 6-8 km/h, observe the running belt deviate condition. If the belt has drifted to the right, unplug the safety lock and power switch, and turn the right adjusting bolt 1/4 turn clockwise, then insert the power switch and safety lock, make the treadmill running, observe the running belt deviate condition. - Page 16 A. Welding parts Description Description Main frame Motor bracket Base frame Belt safety hook Left upright tube Left Handrail Right upright tube Right Handrail Handrail bracket Safety buckle Filter bracket B. Plastic parts Description Description Console set Motor bottom cover B1-1 Overlay Side rails...
- Page 17 Motor belt Inductor Power switch Filter Controller Single line (Black) 300 Left short keys D. Hardware parts Description Description Screw driver Hex round head bolt M6*60 Allen wrench T5 Hex round head bolt M8*20 Round hex bolt M10*50 Hex round head bolt M8*80 Round hex bolt M8*15 Cross head bolt M6X25, washer...
- Page 18 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
