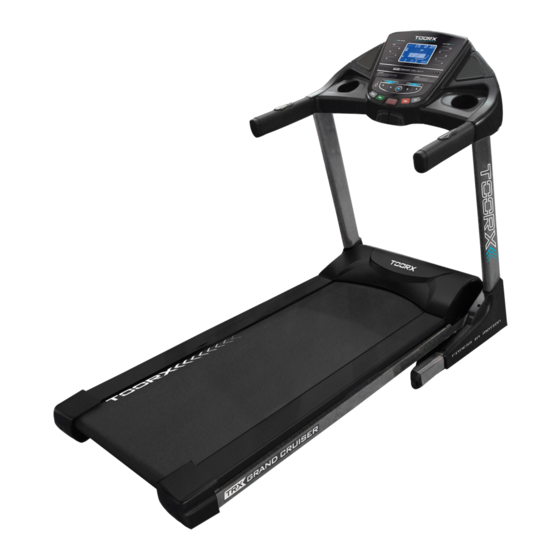

TOORX TRX GRAND CRUISER Instruction Manual
  1. Manuals
  2. Brands
  3. TOORX Manuals
  4. Treadmill
  5. TRX GRAND CRUISER
  6. Instruction manual

TOORX TRX GRAND CRUISER Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

INSTRUCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRX GRAND CRUISER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TOORX TRX GRAND CRUISER

Summary of Contents for TOORX TRX GRAND CRUISER

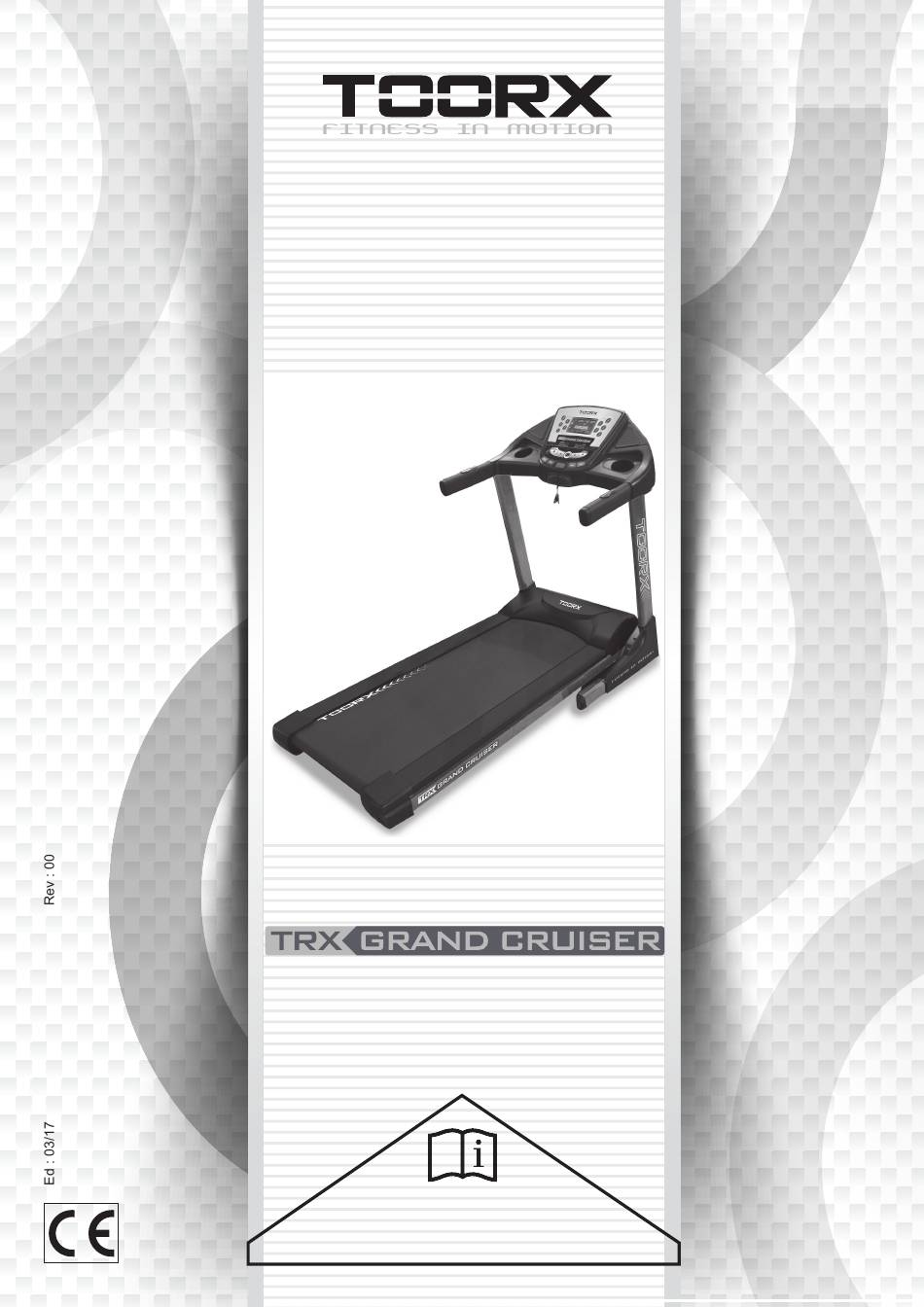

  • Page 1 INSTRUCTION...

  • Page 3: Assembly Pack Check List

    ASSEMBLY PACK ASSEMBLY PACK CHECK LIST CHECK LIST #148. Ø8 × 1.5T #94. Ø5/16" × 19 × 1.5T #88. 5 × 16m/m Split Washer (4pcs) Curved Washer (2pcs) Tapping Screw (4pcs) #95. M5 × 10m/m #90. 3/8" × 3/4" #147. 5/16" × 15m/m Phillips Head Screw (2pcs) Button Head Socket Bolt (4pcs) Button Head Socket Bolt (8pcs)

  • Page 4: Assembly Drawing

    ASSEMBLY DRAWING Step1. Take out the treadmill from the carton and lay it aside on the smooth ground. Step 2. Guide Frame Base Covers (R , L) (42 , 43) go through Uprights (R , L), (4 , 5). Connect the Computer Cable (Lower) (39) and Computer Cable (Middle) (38).
  • Page 5 ASSEMBLY DRAWING Step 4. Use Combination M5 Allen Wrench & Phillips Head Screw Drive (96) to tighten four 5 × 16m/m Tapping Screws (88) and two M5 × 10m/m Phillips Head Screws (95) to secure right and left Frame Base Covers (42 , 43) on the mainframe. Step5.
  • Page 6 ASSEMBLY DRAWING Step6. Use four 5/16" × 3/4" Button Head Socket Bolts (90) and four Ø8 × 1.5T Split Washers (148) to secure the console assembly. NOTE: Please Tighten All Screws After All Components Assembly Complete.

  • Page 8: Button Function

    FUNCTIONS Button Function: “Start” key ：Press this key, machine begins to run at the speed of 1.0 KPH / 0.6 MPH. “Stop” key ：Press this key, the walking belt will gradually slow down to stop. “ENTER” key ：When press this key, time, distance and calorie can be changed. Press “ FAST ” or “...

  • Page 9: Random Program

    FUNCTIONS Speedy Start (P0MANUAL mode) Press START button to speedily start the treadmill after turning on the power and putting on the safety key. Both speed and incline will be at the lowest value. The user has to adjust them to the desire levels manually.

  • Page 10: User Mode

    FUNCTIONS USER mode This mode provides five personal profiles. Follow the procedures as below. A. Use PROGRAM to select the USER mode. The program will automatically one without a profile. If five profiles are saved. The program will ask you if you want to override. Use UP/DOWM buttons to switch the user names.
  • Page 11 UNFOLDING FOLDING TRANSPORT UNFOLDING Pull locking knob and hold running deck and lower down to the floor. (As shown Figure 1_2.) FOLDING Pull the locking knob with right hand, left hand lift the running deck up to 30cm then two hands lift it until it is locked by the locking knob.

  • Page 12: General Maintenance

    GENERAL MAINTENANCE The treadmill is designed so that the tread-belt remains reasonably centered while in use. It is normal for some belts to drift near one side while in use, depending on a user’s gait and if they favor one leg. But if during use the belt continues to move toward one side, adjustments are necessary.

  • Page 13: Treadmill Lubrication

    TREADMILL LUBRICATION Your treadmill should require little maintenance other then periodically applying lubricant. Lubricating under the treadbelt will ensure superior performance and extend its life expectancy. HOW TO CHECK TREADBELT FOR PROPER LUBRICATION? Lift one side of the treadbelt and feel the top surface of the treadboard. If the surface is slick to the touch, then no further lubrication is required.
  • Page 14 OVERVIEW CHART...
  • Page 15 PARTS DESCRIPTION Q'TY LIST Main Frame Frame Base Incline Bracket Right Upright Left Upright Console Support Outer Slide Seat Slider Release Lever Link Link Shaft Shaft Bushing Fastening Bracket Clevis Pin Fastening Bushing Dual Torsion-Spring ChenChin Torsion-Spring Running Deck Running Belt Drive Belt Front Roller W/Pulley 21~2...
  • Page 16 PARTS DESCRIPTION Q'TY LIST 40~22 500m/m_Earphone socket with cable 40~24 3.0 × 8m/m_Sheet Metal Screw 40~25 3.5 × 12m/m_Sheet Metal Screw 40~26 PROGRAM Key 40~27 STOP Key 40~28 START Key 40~29 ENTER Key 40~30 Ø22.2_Mounting Plate 40~31 Ø32_Mounting Plate Handgrip End Cap Frame Base Cover (R) Frame Base Cover (L) Frame Base Front Wheel...

  • Page 17: Parts List

    PARTS LIST DESCRIPTION Q'TY 5/16" × 3/4"_Button Head Socket Bolt 3.5 × 16m/m_Tapping Screw M5_Split Washer 5/16" × 15m/m_Button Head Socket Bolt Ø5/16" × 19 × 1.5T_ Curved Washer M5 × 10m/m_Phillips Head Screw Combination M5 Allen Wrench & Phillips Head Screw Driver M6 ( 66 ×...
  • Page 18 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
