Summary of Contents for TOORX TRX Endurance

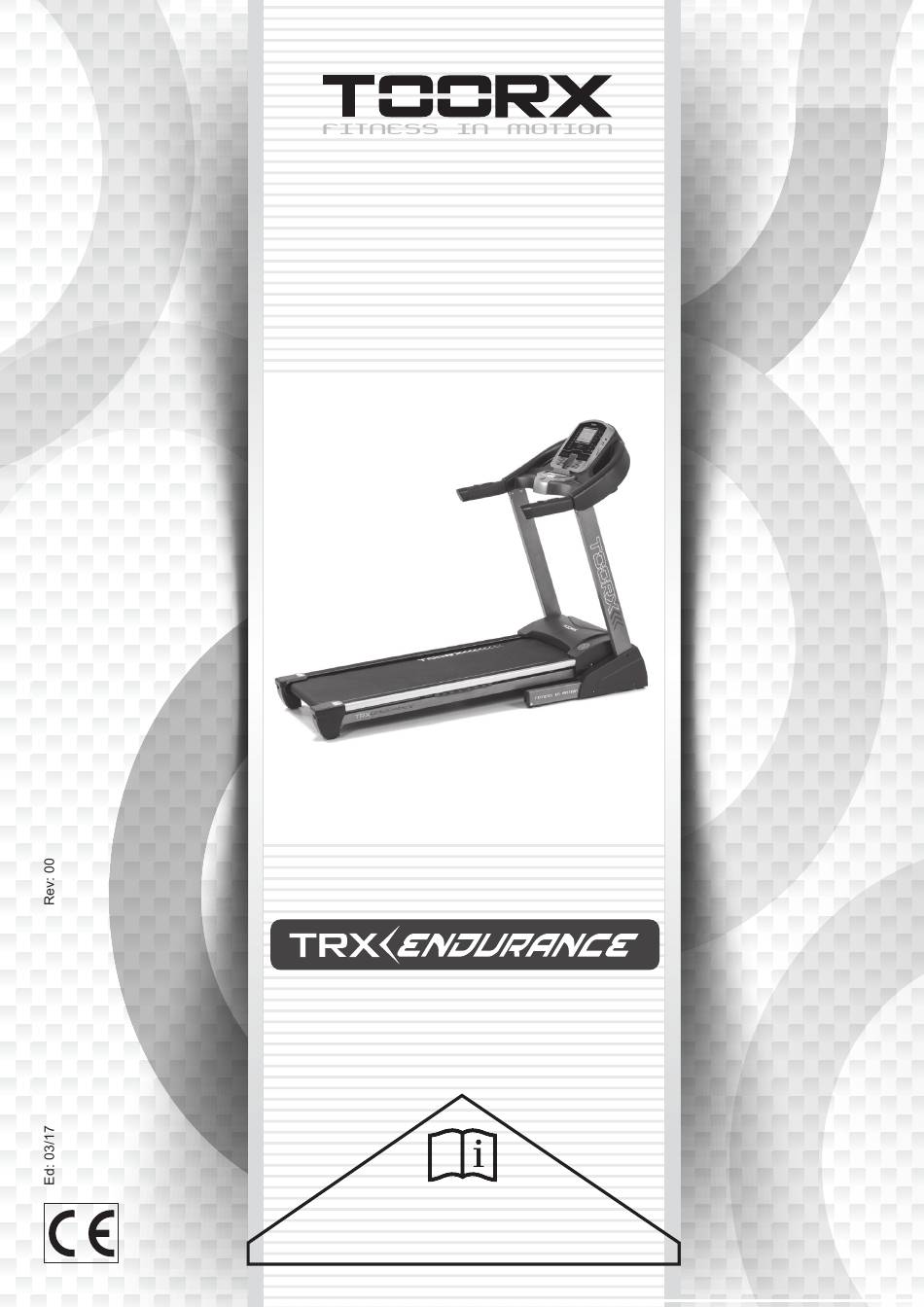

- Page 1 INSTRUCTION APP READY...
-
Page 2: Table Of Contents
CONTENT CONTENT -------------------------------------------------------------------------------------------------------------------------------- IMPORTANT SAFETY PRECAUTIONS ----------------------------------------------------------------------------------3-4 ASSEMBLY INSTRUCTIONS -------------------------------------------------------------------------------------------------4-6 FOLDING & UNFOLDING INSTRUCTIONS ------------------------------------------------------------------------------7 GROUNDING METHODS ----------------------------------------------------------------------------------------------------------8 OPERATION GUIDE ---------------------------------------------------------------------------------------------------------------9-14 GETTING STARTED GUIDE ----------------------------------------------------------------------------------------------------15 SAFETY EXERCISES --------------------------------------------------------------------------------------------------------------16 WARM-UP EXERCISES -----------------------------------------------------------------------------------------------------------17 MAINTENANCE INSTRUCTIONS --------------------------------------------------------------------------------------------18 BELT ADJUSTMENT ----------------------------------------------------------------------------------------------------------------19 EXPLODED DRAWING -------------------------------------------------------------------------------------------------------------20 PARTS LIST -------------------------------------------------------------------------------------------------------------------------21-22 ERROR CODE AND SIGNIFICANCE-----------------------------------------------------------------------------... -
Page 3: Assembly Instructions
Assembly instruction WHEN YOU OPEN THE CARTON, YOU WILL FIND THE BELOW SPARE PARTS: Main frame 1SET D7 Washer M10 8PCS D23 Bolt M10X15 4PCS C15 Safety key 1PC D36 Allen wrench T6 B6 Silicon oil 1 PC B28 Bottle 2PCS D24 Bolt M10X55 C19 Power line 1PC D40 Screw ST4.2X20... - Page 4 STEP 1：According to the following steps to lift up the computer bracket. Be careful not press the line when folding STEP 2：Lock the treadmill with Bolt M10*15(D23), M10*55(D24) and Washer M10 (D7). Step 3: Insert the Left front cover (B26) and Right front cover (B27) on the upright tube and base frame, then lock with Screw ST4.2*20 (D40).
- Page 5 Step 4: Put the Bottle (B28) on the computer cover, then put on the Safety key (C15), Power line (C19) and MP3 line (C29). STEP 5: Plug in the dual bluetooth kit (Note: The voltage of bluetooth kit is 3.3V. Do not use it on the computer, or the Bluetooth kit will be damaged.) 1.
- Page 6 Folding instruction Lift up the machine and force to pull up until you heard "click" that made by safety casing stuck the pneumatic cylinder. Unfolding instruction Kick the safety sleeve lightly and pull down the machine at the same time as the arrow direction.
-
Page 7: Grounding Methods
Grounding Methods This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 8: Operation Guide
Operation Guide 1. WINDOW DISPLAY 1.1. Console 1.2. START Normal start after 5 seconds countdown 1.3 PROGRAM 1 manual mode，16 pre-set programs, 1 body fat program ,3 countdown function , 3 users and HRC program 1.4. SAFETY LOCK FUNCTION The window shows"---" when take away the safety lock and the treadmill will stop quickly with "didi" alarm noise. - Page 9 modes:”H-1”,”H-2”,”H-3”;:H-1” is the time countdown mode, and “H-2” is the distance countdown mode, “H-3” is the calorie countdown mode; press the “SPEED+/-” or “INCLINE+/-“button to adjust the data. After that, press the “START” button to start this treadmill 1.5.4 “SPEED +/- “BUTTON SPEED +/–...
- Page 10 PULSE: 50 – 200 (BPM) INCLINE：0 – 15 1.7 PULSE FUNCTION When the treadmill is running, hold the hand pulse about 5 seconds, it will display pulse data. The pulse data range is 50-200 times/ minute. It has heart-shaped graphics when testing pulse. This data is only for reference, can not be as medical data.
- Page 11 1.9.4 Press stop, you can stop treadmill at working state 1.9.5 Press quick speed key, you can quickly adjust the speed you want 1.9.6 Press quick incline key, you can quickly adjust the incline you want 1.10 3 COUNTDOWN FUNCTION PARAMETER DATA Countdown time initial setting 30：00 minutes，setting range 5：00---99：00 minutes , each step 1：00.
- Page 12 speed. Press” INCLINE+” and “INCLINE-“ to set incline. Press "MODE" button and your choice will be set. The next workout segment will flash, go through the same setup as you completed with segment one. You must complete all 10 segments and then your user program is ready to use.
- Page 13 1.14.3.1 If the treadmill is still running when the user tries to connect the Bluetooth app, treadmill will stop and then enter the app controlling stage. 1.14.3.2 If the bluetooth connection does not work out well, the system will remain the same. 1.15 OTHERS 1.15.1The system will enter into power saving mode automatically if there is no any action within 10 minutes under IDLE MODE and there is no display and backlit on the computer.
-
Page 14: Maintenance Instructions
Maintenance Instruction WARNING ：Please make sure pull out the treadmill's power plug before cleaning or maintaining the product. CLEANSING：General cleaning or the unit will greatly prolong the treadmill's life. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails. -
Page 15: Belt Adjustment
Belt Adjustment Place treadmill on a level surface. Make treadmill run at approximately 6-8 km/h, observe the running belt deviate condition. f the belt has drifted to the right, unplug the safety lock and power switch, and turn the right adjusting bolt 1/4 turn clockwise, then insert the power switch and safety lock, make the treadmill running, observe the running belt deviate condition. -
Page 16: Exploded Drawing
Exploded Drawing... -
Page 17: Parts List
Parts list A-Welding parts Description Description Main frame Incline bracket Base frame Filter supporter Running board enhanced Left upright tube tube Right upright tube Belt guide Computer bracket B—Plastic parts Description Description computer cover Left rear cover Lower computer chip Right rear cover B2-1 Lower overlay... - Page 18 Right short keys Magnetic ring Safety key MP3 line Inductor Speed sensor Filter Single line cylinder Single line D—Hardware parts Description Description Bolt M5X20 Bolt M10X55 Incline bushing Bolt M10X65 Washer M8 Bolt M8X50 Nylon nut M8 Bolt M8X45 Bolt M10X45 Screw ST4.2X65 Washer M10 Bolt M5X15...
- Page 19 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
