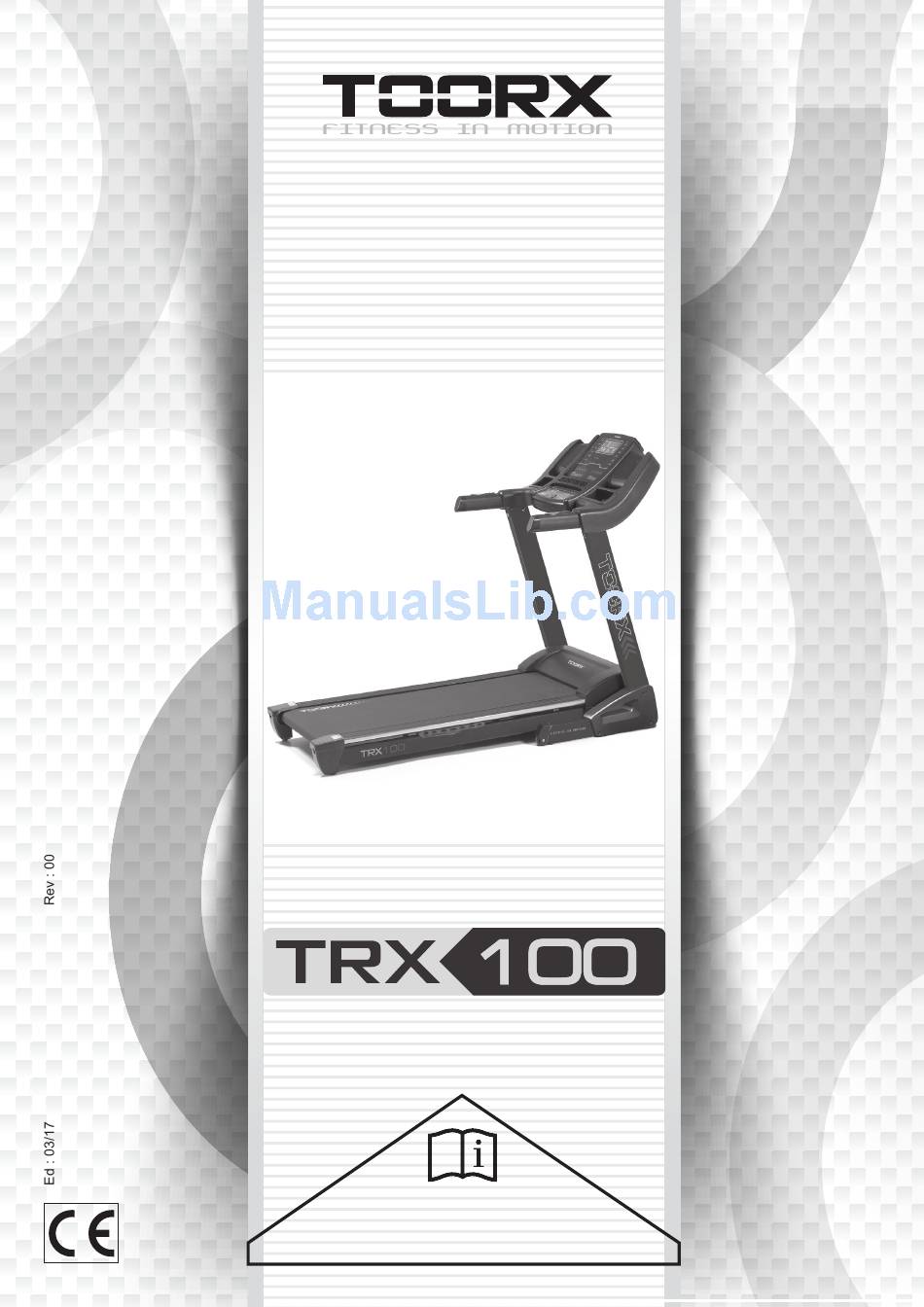

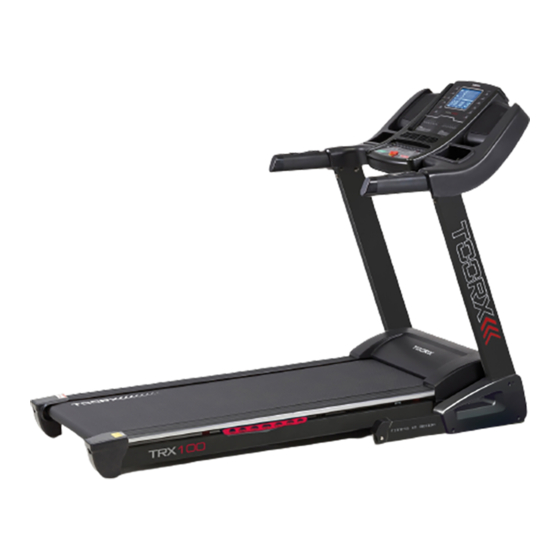

- Page 1 INSTRUCTION APP READY...
-
Page 2: Table Of Contents
CONTENT ---------------------------------------------------------------------------------------------------------------------------1 IMPORTANT SAFETY PRECAUTIONS -------------------------------------------------------------------------------- 2 ASSEMBLY INSTRUCTIONS ---------------------------------------------------------------------------------------------- 4 FOLDING & UNFOLDING INSTRUCTIONS ------------------------------------------------------------------------ 7 INCLINE INSTRUCTIONS --------------------------------------------------------------------------------------------------- 8 GROUNDING METHODS ---------------------------------------------------------------------------------------------------- 9 OPERATION GUIDE ---------------------------------------------------------------------------------------------------------- 10 GETTING STARTED GUIDE ---------------------------------------------------------------------------------------------- 15 SAFETY EXERCISES -------------------------------------------------------------------------------------------------------- 16 WARM-UP EXERCISES ----------------------------------------------------------------------------------------------------- 17 MAINTENANCE INSTRUCTIONS --------------------------------------------------------------------------------------- 18... -
Page 3: Assembly Instructions
WHEN YOU OPEN THE CARTON, YOU WILL FIND THE BELOW SPARE PARTS: Main frame 1 set D21 Flat washer M10 D8 Round bolt C13 Safety key 1pc M10*15 4pcs 8pcs D3 Allen wrench 1pc B18 Silicon oil 1pc D1 Screw driver 1 pc D12 Round hex bolt M8*55 4pcs B11L Left side cover 1... - Page 4 and flat STEP 2： Secure bottom frame with bolt M10*55(D12) M10*15(D8) washer M10 (D21). Step 3: Insert the L/R side cover (B11) into the upright tube and base frame, then lock with Screw ST4.2*19 (D48).
- Page 5 Step 4: Put on the Safety key (C13), MP3 line (C19) and Power code (C15). Step 5: Plug in Bluetooth dual kit (Warning: voltage of dual kit is 3.3V, and cannot plug into computer/lapto p or it will be damaged.) 1.Take out the Bluetooth kit and push the cover down to let USB slot appears.
- Page 6 2. Then connect the Bluetooth on treadmill. Bluetooth ATTENTION: Must confirm complete assembly as the required above and lock all bolts. Do the following operations after checking everything is OK. Before you use the treadmill, please read the instructions carefully.
- Page 7 Lift up the machine and force to pull up until you heard "click" that made by safety casing stuck the pneumatic cylinder. Kick the safety sleeve lightly and pull down the machine at the same time as the arrow direction. Then the machine will fall down smoothly.
-
Page 8: Grounding Methods
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 9: Operation Guide
1.1. WINDOW DISPLAY 1.2 START Normal start after 5 seconds countdown 1.3 PROGRAM 3 countdown function, 16 pre-set programs, 1 body fat program, 3 User, 3 Modes, USB Bluetooth , Polar receiver, and Fan 1.4 SAFETY LOCK FUNCTION The window shows"---" when take away the safety lock and the treadmill will stop quickly with "didi" alarm noise. - Page 10 1.5.1 START/STOP “START”--When the treadmill is not running, press this button to start, speed is “1.0”. “STOP”--When the treadmill is running, press this button to stop, then set program default and then return to manual mode after stopped. 1.5.2 “PROGRAM” BUTTON When the treadmill is not running, press this button can circle choose from manual mode to pre-set mode P1- P12 and body fat;...
- Page 11 1.6.5 PULSE Display pulse data. 1.6.6 ALL WINDOW DISPLAY DATA RANGE TIME：0:00 – 99.59(MIN) DISTANCE: 0.00 – 99.9(KM) CALORIES: 0.0 – 999 (C) SPEED: 0.8-14.0(km/h) PULSE: 50 – 200 (BPM) 1.7 PULSE FUNCTION When the treadmill is running, hold the hand pulse about 5 seconds, it will display pulse data. The pulse data range is 50-200 times/ minute.
- Page 12 body quality index. The ideal FAT should be between 20-25, if under 19, it means too thin. If between 25 and 29, it means overweight, if over 30, it means obesity. (The data is just for reference and can not be as medicinal data) Sex 01 Male 02 Female Age 10 ----- 99 Height 100 --- 200...
- Page 13 1.14.3 When the connecting is completed, user can use smartphone or tablet through the app to control the treadmill. 1.14.3.1 If the treadmill is still running when the user tries to connect the Bluetooth app, treadmill will stop and then enter the app controlling stage. 1.14.3.2 If the Bluetooth connection does not work out well, the system will remain the same.
-
Page 14: Maintenance Instructions
WARNING：Please make sure pull out the treadmill's power plug before cleaning or maintaining the product. CLEANSING：General cleaning or the unit will greatly prolong the treadmill's life. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails. -
Page 15: Belt Adjustment
Place treadmill on a level surface. Make treadmill run at approximately 6-8 km/h, observe the running belt deviate condition. If the belt has drifted to the right, unplug the safety lock and power switch, and turn the right adjusting bolt 1/4 turn clockwise, then insert the power switch and safety lock, make the treadmill running, observe the running belt deviate condition. - Page 16 B41R B11L...
- Page 17 A. Welding parts Description Description Main frame Incline Frame Base frame 滤波器支撑座 Left upright tube 跑板加强管 Right upright tube Motor Barcket Handrail bracket Belt Guide B. Plastic parts Description Description Computer chip Transport wheel B1-1 Overlay B1 8 Silicon oil B1-2 Membrane key Protecting wire plug...
- Page 18 Cross head self taping bolt Round hex bolt M10*15 4.2*70 Cross head bolt M4*10, Round hex bolt M10*45 washer Cross head bolt M5*12, Round hex bolt M10*50 washer Cross head bolt M5*15, Round hex bolt M10*55 washer Cross head bolt M5*20, Round hex bolt M8*30 washer Cross self-tapping bolt...
- Page 19 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
