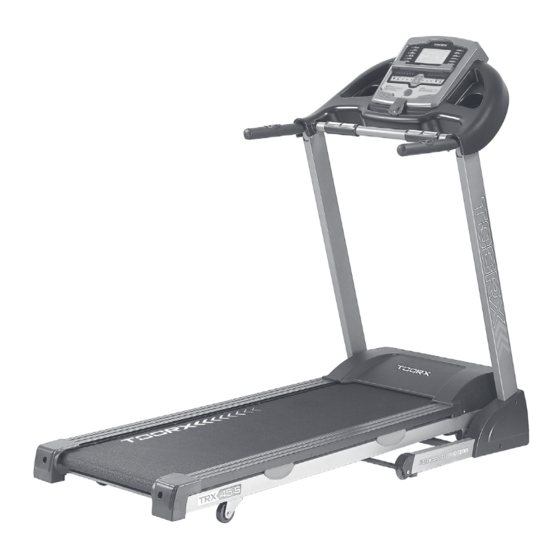

Summary of Contents for TOORX TRX46S

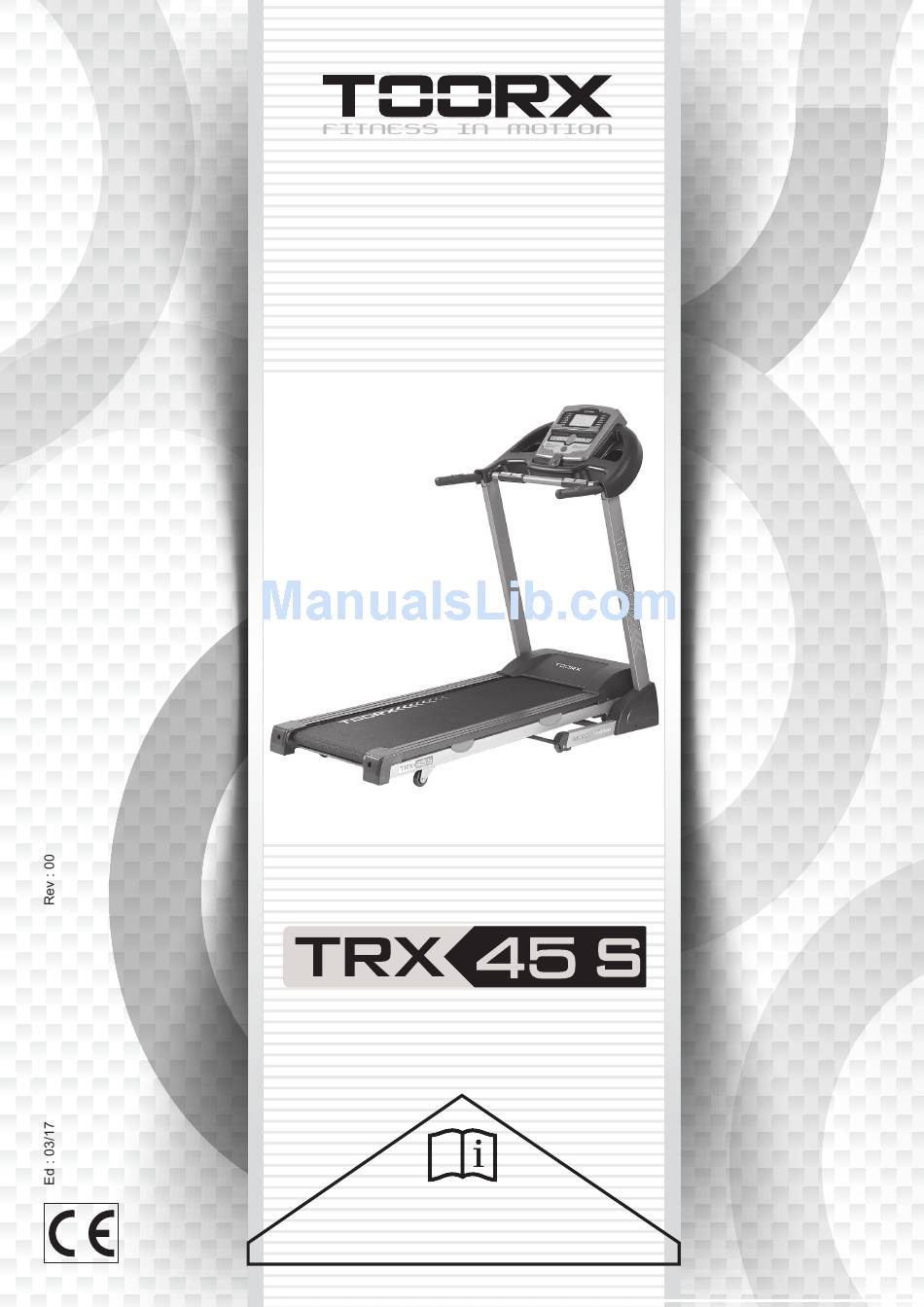

- Page 1 INSTRUCTION...
-
Page 2: Table Of Contents
CONTENT CONTENT -------------------------------------------------------------------------------------------------------------------------------- IMPORTANT SAFETY PRECAUTIONS ----------------------------------------------------------------------------------2-3 ASSEMBLY INSTRUCTIONS -------------------------------------------------------------------------------------------------3-5 FOLDING & UNFOLDING INSTRUCTIONS ------------------------------------------------------------------------------6 GROUNDING METHODS ----------------------------------------------------------------------------------------------------------7 OPERATION GUIDE -------------------------------------------------------------------------------------------------------------8-12 GETTING STARTED GUIDE ----------------------------------------------------------------------------------------------------13 SAFETY EXERCISES --------------------------------------------------------------------------------------------------------------14 WARM-UP EXERCISES -----------------------------------------------------------------------------------------------------------15 MAINTENANCE INSTRUCTIONS --------------------------------------------------------------------------------------------16 BELT ADJUSTMENT ----------------------------------------------------------------------------------------------------------------17 EXPLODED DRAWING -------------------------------------------------------------------------------------------------------------18 PARTS LIST -------------------------------------------------------------------------------------------------------------------------19-20 ERROR CODE AND SIGNIFICANCE-----------------------------------------------------------------------------... -
Page 3: Assembly Instructions
Assembly instruction WHEN YOU OPEN THE CARTON, YOU WILL FIND THE BELOW SPARE PARTS: Treadmill 1set D17 Washer M8 8PCS D13 Bolt M8*15 4PCS C13 Safety key 1pc D3 Allen wrench B18 silicon oil 1 PC D1 Screw driver 1 PCS D16 Bolt M8*45 5MM, 1 PCS... - Page 4 STEP 1：According to the following steps to lift up the computer bracket. Be careful not press the line when folding STEP 2：Lock the lower part of treadmill with Bolt M8*45 (D16), M8*15 (D13) and Washer (D17), then lock the upper part of the treadmill with M8*15 (D13) and Washer (D17).
- Page 5 Step 3: Lock the Left front cover(B11L) and Right front cover (B11R) with Screw ST4.2*20 (D49), then put on the Safety key (C13). B11L B11R ATTENTION: Must confirm complete assembly as the required above and lock all bolts. Do the following operations after checking everything is OK. Before you use the treadmill, please read the instructions carefully.
-
Page 6: Folding Instruction
Folding instruction Lift up the machine and force to pull up until you heard "click" that made by safety casing stuck the pneumatic cylinder. Unfolding instruction Kick the safety sleeve lightly and pull down the machine at the same time as the arrow direction. -
Page 7: Grounding Methods
Grounding Methods This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 8: Operation Guide
Operation Guide WINDOW DISPLAY 1.1. 1.2. START Normal start after 3 seconds countdown 1.3 PROGRAM 1 manual mode，12 pre-set programs, 3 HRCs, 1 body fat program, 3 countdown function 1.4. SAFETY LOCK FUNCTION The window shows "OFF" when take away the safety lock and the treadmill will stop quickly . 1.5.BUTTON FUNCTION 1.5.1. - Page 9 1.5.3 “MODE” BUTTON When the treadmill is not running, press this button to circle choose countdown Modes from manual mode,time countdown mode, distance countdown mode, and the calorie countdown mode. 1.5.4 “SPEED +/- “BUTTON SPEED +/– --Adjust speed when treadmill start, the increment is 0.1km/time in kilometer. User can adjust the data when treadmill stop, 1.5.5 SPEED QUICK BUTTON Press the speed quick button 3km/h, 6km/h, 9km/h to adjust the speed directly when the treadmill is...
- Page 10 DISTANCE: 0.00 – 99.9(KM) CALORIES: 0 – 999 (C) SPEED: 0.8-16.0(km/h) PULSE: 50 – 200 (BPM) 1.7 PULSE FUNCTION When the treadmill is running, hold the hand pulse about 12 seconds, it will display pulse data. The pulse data range is 50-200 times/ minute. It has heart-shaped graphics when testing pulse. This data is only for reference, can not be as medical data.
- Page 11 INCLINE SPEED INCLINE 1.9 Manual model operation 1.9.1 Press start key, time count down 3 seconds, then treadmill will start to work with initial speed 0.8km/h 1.9.2 Press speed +/-, you can adjust the speed 1.9.3 Press incline+/-, you can adjust the incline 1.9.4 Press stop, you can stop treadmill at working state 1.9.5 Press quick speed key, you can quickly adjust the speed you want 1.9.6 Press quick incline key, you can quickly adjust the incline you want...
- Page 12 FAT ≥30 Obesity 1.12 Heart Rate Control (HRC) Heart Rate controls the speed and inclines (user need to take the wireless chest belt) Press Mode and choose HRC, the treadmill will start to run after 3 seconds after switch on, 3 minutes of preheating to enter HRC function.
-
Page 13: Maintenance Instructions
Maintenance Instruction WARNING ：Please make sure pull out the treadmill's power plug before cleaning or maintaining the product. CLEANSING：General cleaning or the unit will greatly prolong the treadmill's life. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails. -
Page 14: Belt Adjustment
Belt Adjustment Place treadmill on a level surface. Make treadmill run at approximately 6-8 km/h, observe the running belt deviate condition. f the belt has drifted to the right, unplug the safety lock and power switch, and turn the right adjusting bolt 1/4 turn clockwise, then insert the power switch and safety lock, make the treadmill running, observe the running belt deviate condition. -
Page 15: Exploded Drawing
Exploded Drawing... -
Page 16: Parts List
Parts list Parts list A. Welding parts Description Description Incline bracket Main frame Base frame Filter supporter Motor bracket Left upright tube Right upright tube Handrail bracket B. Plastic parts Description Description Computer chip B16R Right rear cover B1-1 Overlay Adjust wheel B1-2 Membrane key... - Page 17 Front roller Lower line Running board Magnetic ring cylinder Inductor Motor belt Filter Power switch Single line Controller Speed sensor Left short keys pulse Right short keys Incline motor Safety key D. Hardware parts Description Description Screw driver 13-15-17 Bolt M6X60 Allen wrench T5 Bolt M8X20 Bolt M10X30...
- Page 18 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
