DESCRIPTION

Changehead for terminating Molex products Eng Nos. 5320;5321 ,

90635 and 40312 onto pre cut cable.

Fits onto pistol 69008-0949.

Terminates pre-cut ribbon cable into connector in one

action.

For jumper and daisy chain style harnesses.

Designed for prototype, small batch and field repair

applications only.

SIZE:

85mm x 78mm x 40mm

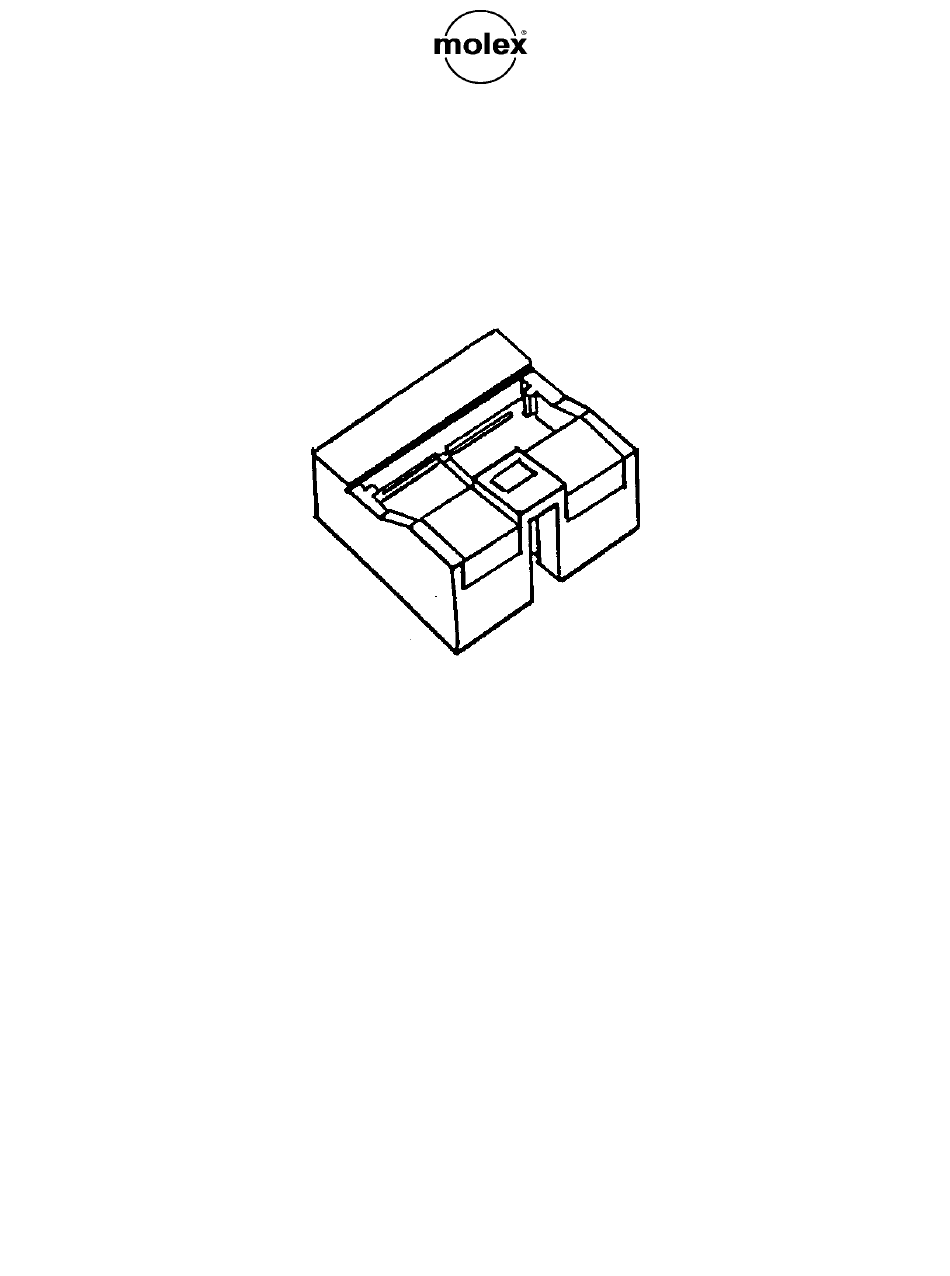

CHANGEHEAD

PART No. 69008-0250

AS.04.03.15/ Issue C

FILENAME

SD-69008-0250b

Table of Contents

Do you have a question about the 207129 Series and is the answer not in the manual?

Page 1 CHANGEHEAD PART No. 69008-0250 DESCRIPTION Changehead for terminating Molex products Eng Nos. 5320;5321 , 90635 and 40312 onto pre cut cable. FEATURES Fits onto pistol 69008-0949. Terminates pre-cut ribbon cable into connector in one action. For jumper and daisy chain style harnesses.
Page 2 WEIGHT: 0.2Kg MATL: Plastic Construction OPERATION PROCEDURE Slide changehead onto pistol 69008-0949. Slide connector into changehead. Insert ribbon cable over wire guide and into connector. Operate pistol to compress connector fully. Release pistol and remove harness. MAINTENANCE PROCEDURE Keep changehead clean at all times. Look into track and check for any damage, dirt or plastic shavings - Clean using a brush or similar.
Page 3 This tool is factory set to give a stroke of 11.7mm and does not need adjusting. QUALITY Check termination quality against the Molex wire termination specification for relevant product being terminated eg: PS-90650. A quality procedure should be in place to monitor output from this changehead.

69008-0250
