3. Connection

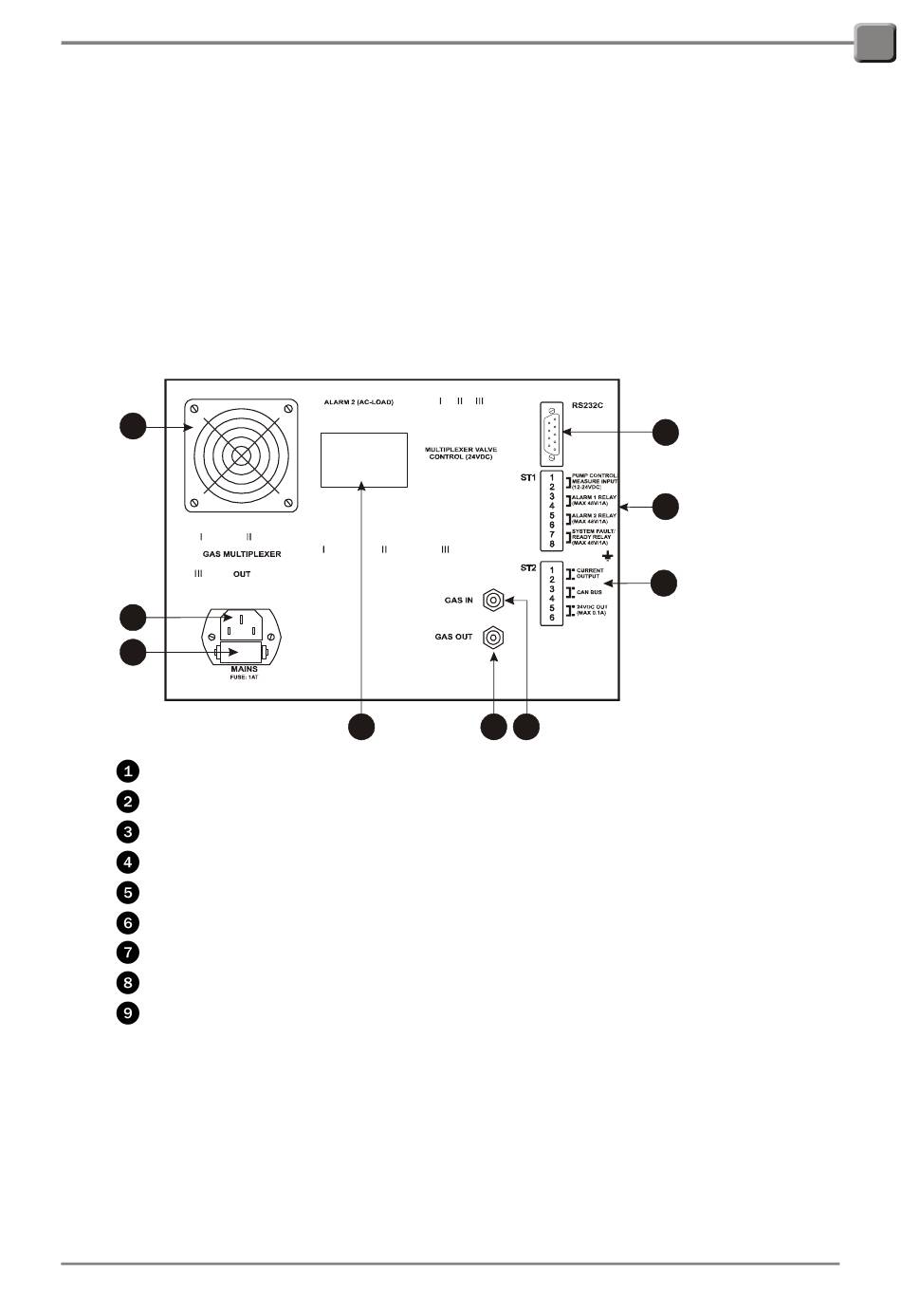

3.1. MAP Check 900X-1/2/4
• Pump control signal for external pump control (10-32VDC)
• Alarm relay outputs
• System error / Ready relay output
• Current/voltage outputs (optional)
• CAN bus (optional)
1
2
3
Fan / dust filter
Mains voltage
Mains fuse
RS232C port for serial communication with PC, etc.
ST1
ST2
Gas in
Gas out
Rating plate
ST1 1,2: Pump control signal, 10-32VDC input (for external pump control)
3,4: O
alarm 1 relay. Max. 48V, 1A
2
5,6: O
alarm 2 relay. Max. 48V, 1A
2
7,8: System error / Ready relay. Max. 48V, 1A
ST2 1,2: * Reserved for current output (optional)
3,4: * Reserved for CAN bus (optional)
5,6
* Reserved for 24VDC output (optional)
* Other connection will be marked with a text on the back of MAP Check 9000
PBI-Dansensor A/S
9
8
7
COPYRIGHT ©
4
5
6
(1+, 2-)
(3+, 4-)
(5+, 6-)
PBI-220047-F 01/2008
3. Connection
9
