Hardware layout and configuration

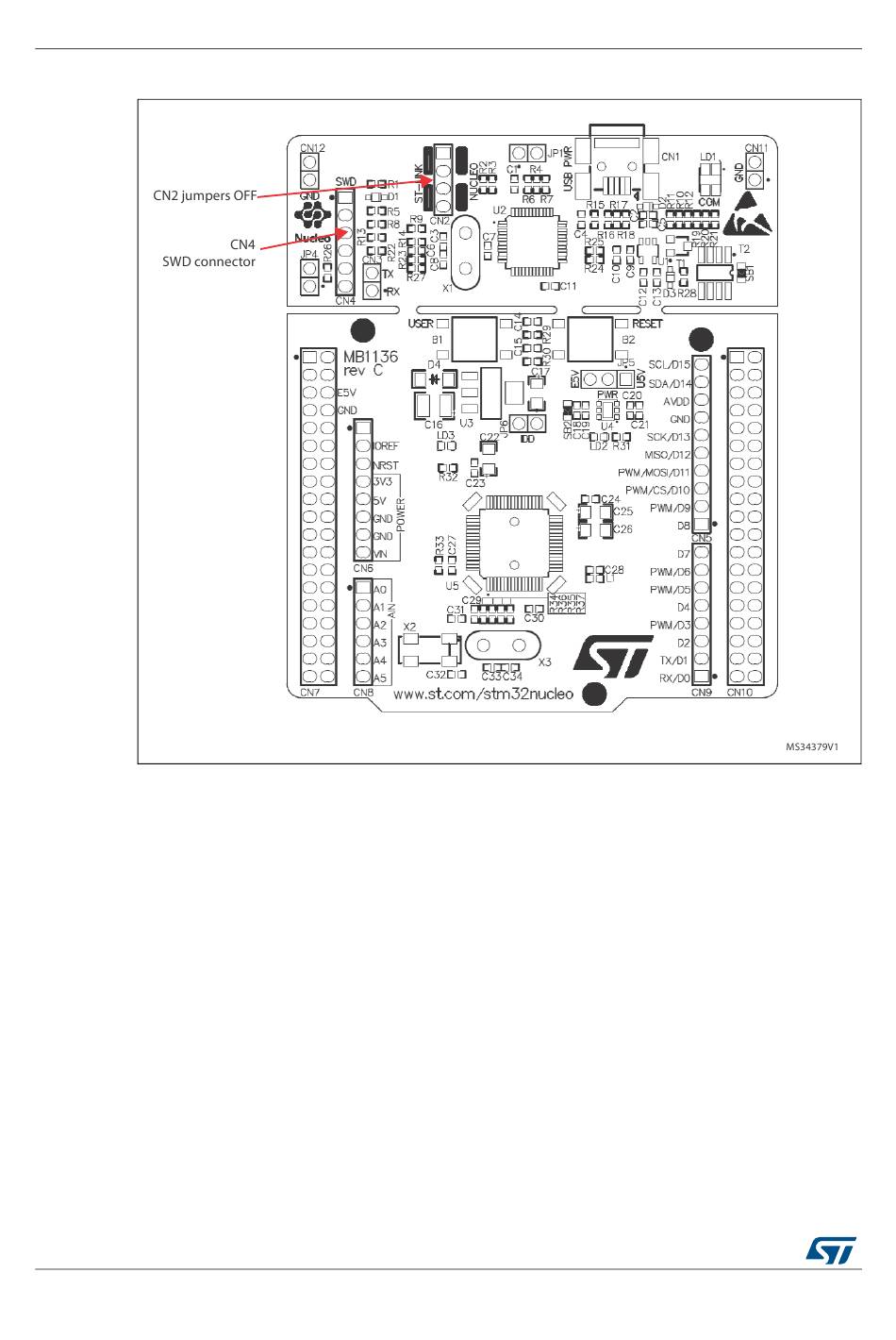

Figure 8. Using ST-LINK/V2-1 to program the STM32 on an external application

5.3

Power supply and power selection

The power supply is provided either by the host PC through the USB cable, or by an
external Source: VIN (7V-12V), E5V (5V) or +3V3 power supply pins on CN6 or CN7. In
case VIN, E5V or +3V3 is used to power the Nucleo board, using an external power supply
unit or an auxiliary equipment, this power source must comply with the standard EN-60950-
1: 2006+A11/2009, and must be Safety Extra Low Voltage (SELV) with limited power
capability.
5.3.1

Power supply input from the USB connector

The ST-LINK/V2-1 supports USB power management allowing to request more than
100 mA current to the host PC.
All parts of the STM32 Nucleo board and shield can be powered from the ST-LINK USB
connector CN1 (U5V or VBUS). Note that only the ST-LINK part is power supplied before
the USB enumeration as the host PC only provides 100 mA to the board at that time. During
the USB enumeration, the STM32 Nucleo board requires 300 mA of current to the Host PC.
If the host is able to provide the required power, the targeted STM32 microcontroller is
16/55 DocID025833 Rev 4
UM1724
