UM1724
5.10
Extension connectors
The following figures show the signals connected by default to Arduino Uno Revision 3
connectors (CN5, CN6, CN8, CN9) and to STMicroelectronics Morpho connector (CN7 and
CN10), for each STM32 Nucleo board.

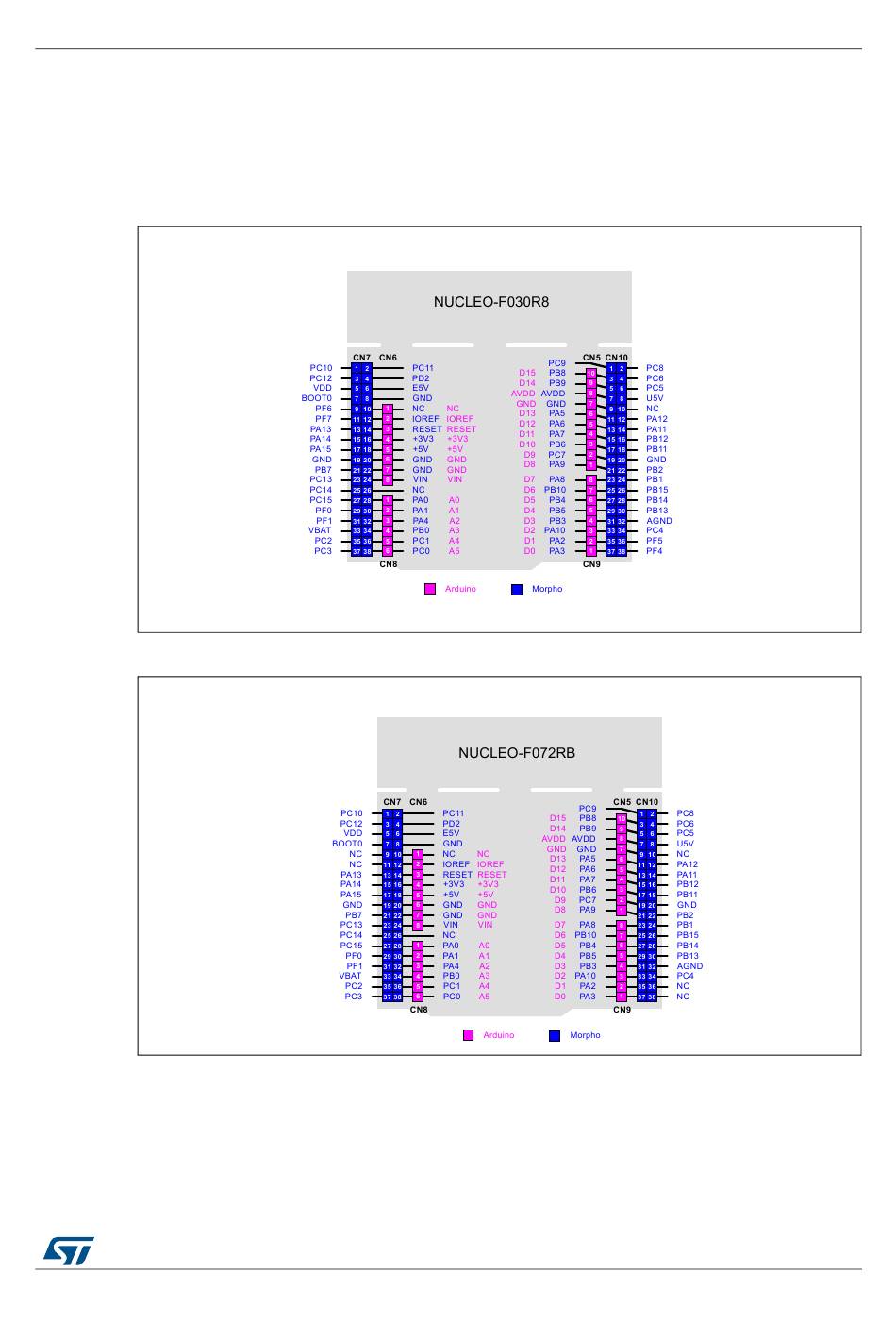

Figure 9. NUCLEO-F030R8
Figure 10. NUCLEO-F072RB
DocID025833 Rev 4
Hardware layout and configuration
27/55
54
