2.1.2 Magnet plates

To prevent serious jamming danger only handle the magnet
plates covered with the magnetic field protection plates.
All iron core linear motors have various magnet plate lengths. This enables
efficient design of the magnet track length. For more information on
magnet track design please review chapter
page 11

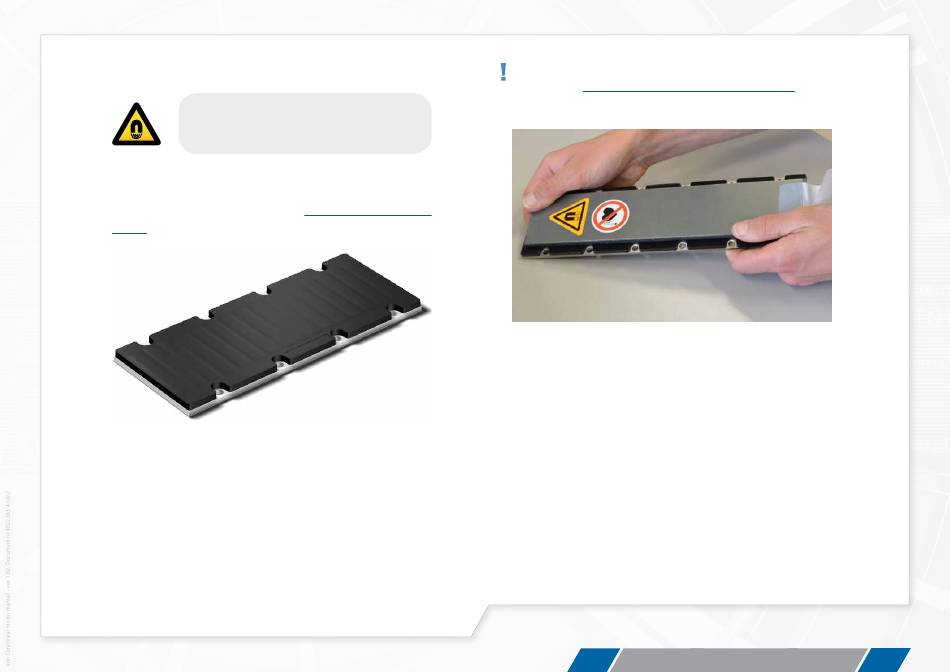

Picture 2.4: A TL192mm magnet plate

2.1.3 Magnetic field protection plates

Magnet plates produce very high attraction forces. These forces are
unpredictable and cannot be controlled by hand.
Tecnotion iron core magnet plates are always delivered with protective
plates. These plates function as a shield for the magnetic forces. With the
protective plates the magnet plates can be handled safely.
©2015 Tecnotion BV - All rights reserved - The contents of this document are subject to change without prior notice.
3.1.1 Magnet track length on
Also use the protective plates during assembly and disassembly. Please
review chapter 4.3.2 Mounting the magnet plates on page 30
do this.
Picture 2.5: A magnet plate with a protection plate.
CH 2 MOTOR COMPONENTS
how to
9
