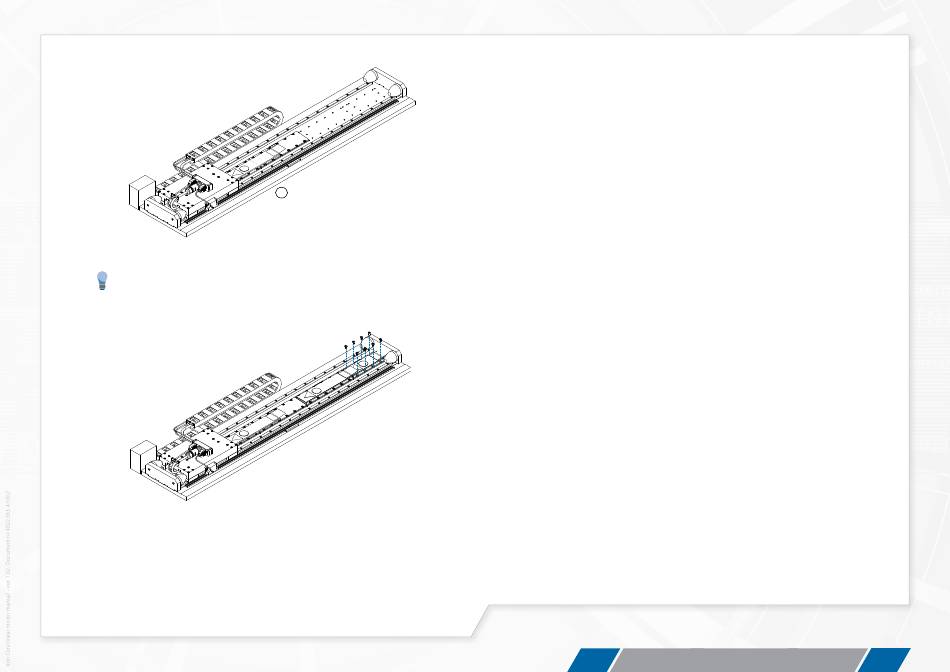

Picture 4.7: Securing slide
The slide can be secured against unwanted movement by repositioning (1)
a protection plate in front of the slide.
Picture 4.8: Mounting the remaining plates
6.
The rest of the magnet plates can be mounted. Repeat steps 2
through 5.
©2015 Tecnotion BV - All rights reserved - The contents of this document are subject to change without prior notice.
1
7.
Finally remove all protection plates and check whether the slide
can move freely and smoothly over the magnet plates. When
there is a strong force ripple at the edges of the magnet plates,
please check the orientation of the plates.
CH 4
32
INSTALLATION
