2. [ MOTOR COMPONENTS ]

2.1

Components

A Tecnotion iron core linear motor consists out of a coil unit and one or
more magnet plates. Together with a slide, mounting frame, rails and be-
aring system, dampers, encoder, controller and amplifier the linear motor
forms a complete machine concept.
Slide
Cable chain
Magnet plate
Rail
Encoder

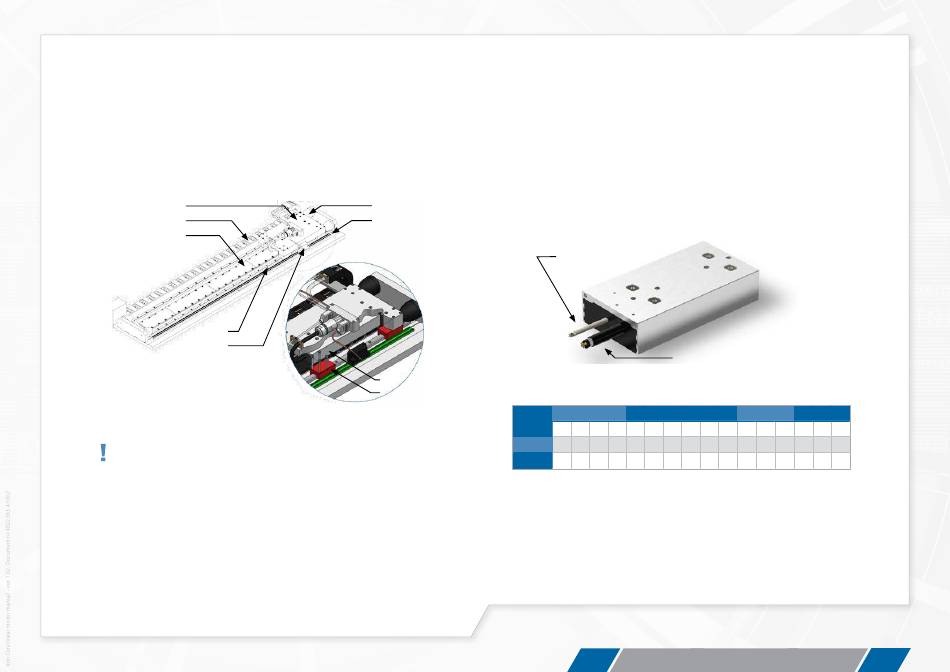

Picture 2.1: A complete axis system with Tecnotion coil unit and magnet plates installed
Tecnotion only supplies coils and magnet plates and offers a few additional
components like Hall modules and stainless steel cover plates. All other
components need to be sourced from other suppliers. Please review this
chapter carefully to determine what is necessary to design a complete
system.
©2015 Tecnotion BV - All rights reserved - The contents of this document are subject to change without prior notice.

2.1.1 Coil unit

Tecnotion offers most of the coilunits as an N- and S-winding version. What
type is required depends on the voltage, current and speed requirements
of the application.
The N-winding type is optimized for current, enabling the use of a smaller
less costly amplifier. S-winding is optimized for higher speeds or lower
voltages. It can however require a larger amplifier.
Damper
Ruler
Picture2.2: A TL6 coil unit
Coil unit
Bearing
Winding
N
S
Table2.3: available N- and S-winding type coilunits
Temperature
sensor cable
Power cable
TM TL
3 6 12 18 6 9 12 15 18 24
x x x x x x x
x x x x x x x x x x
CH 2 MOTOR COMPONENTS
TB TBW
12 15 30 18 30 45
x x x x x x
x x x x x x
